Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Oil Flow Check Valve - Install - Oil Pan Assemble
Courtesy of GENERAL MOTORS COMPANY

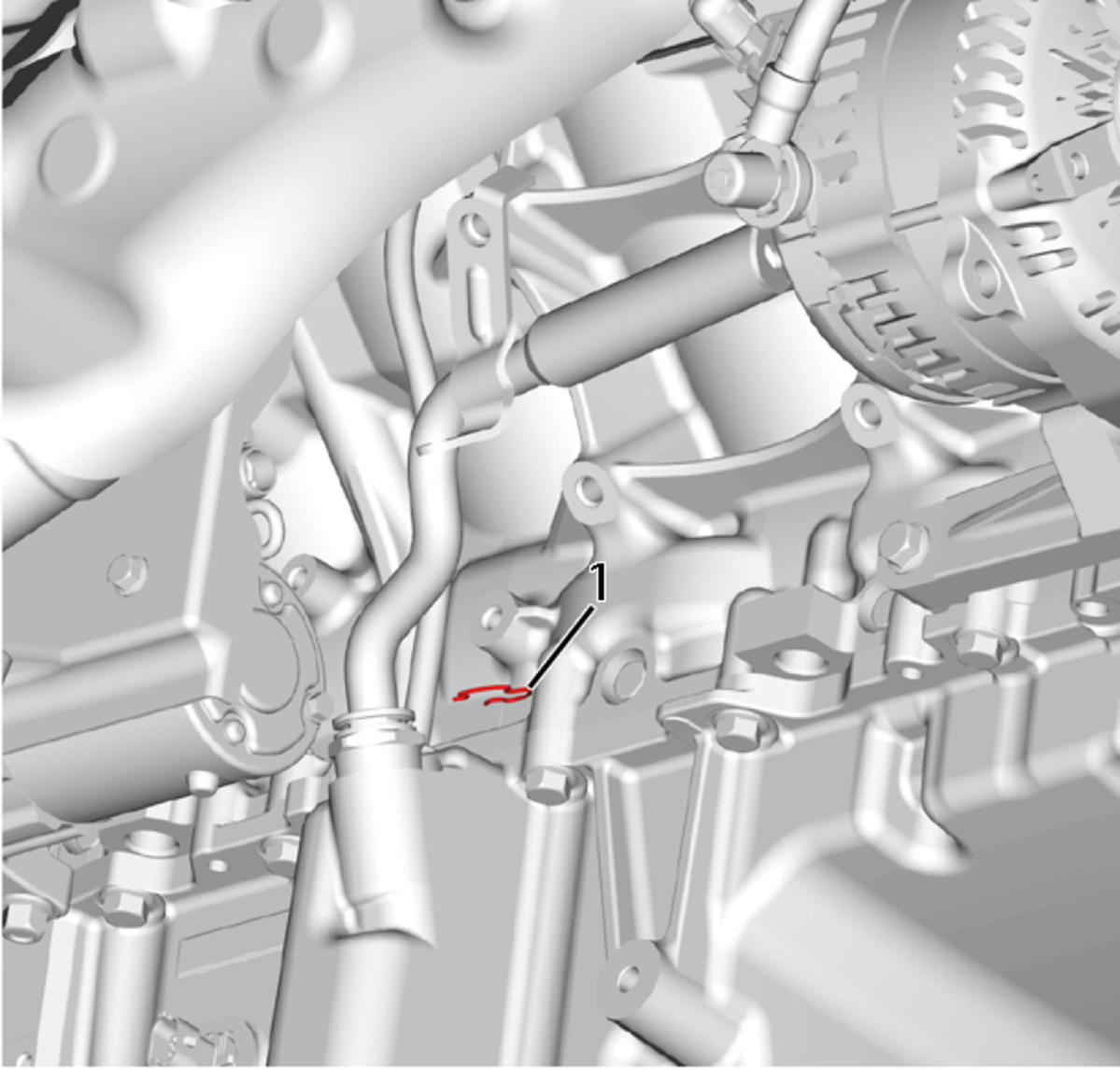

Positive Crankcase Ventilation Oil Separator Seal (1) - Install a NEW seal.
Courtesy of GENERAL MOTORS COMPANY

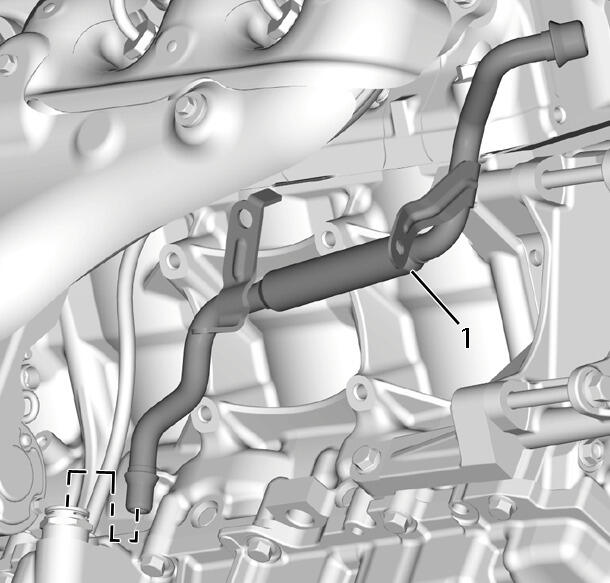

Positive Crankcase Ventilation Oil Separator Drain Pipe (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Clip (1) @ Positive Crankcase Ventilation Oil Separator Drain Pipe - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

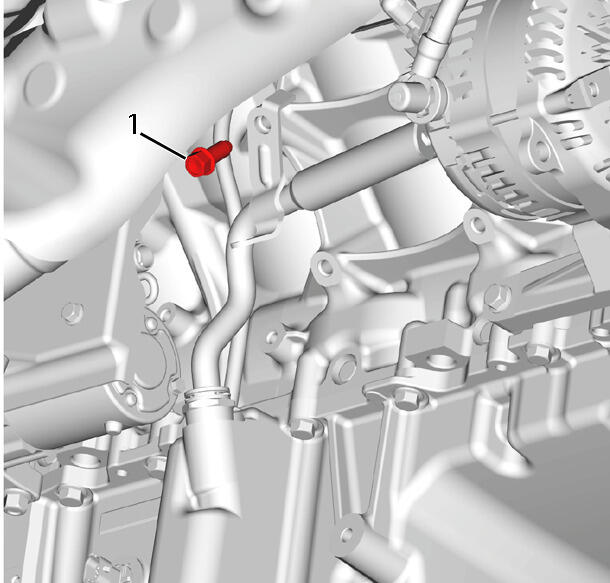

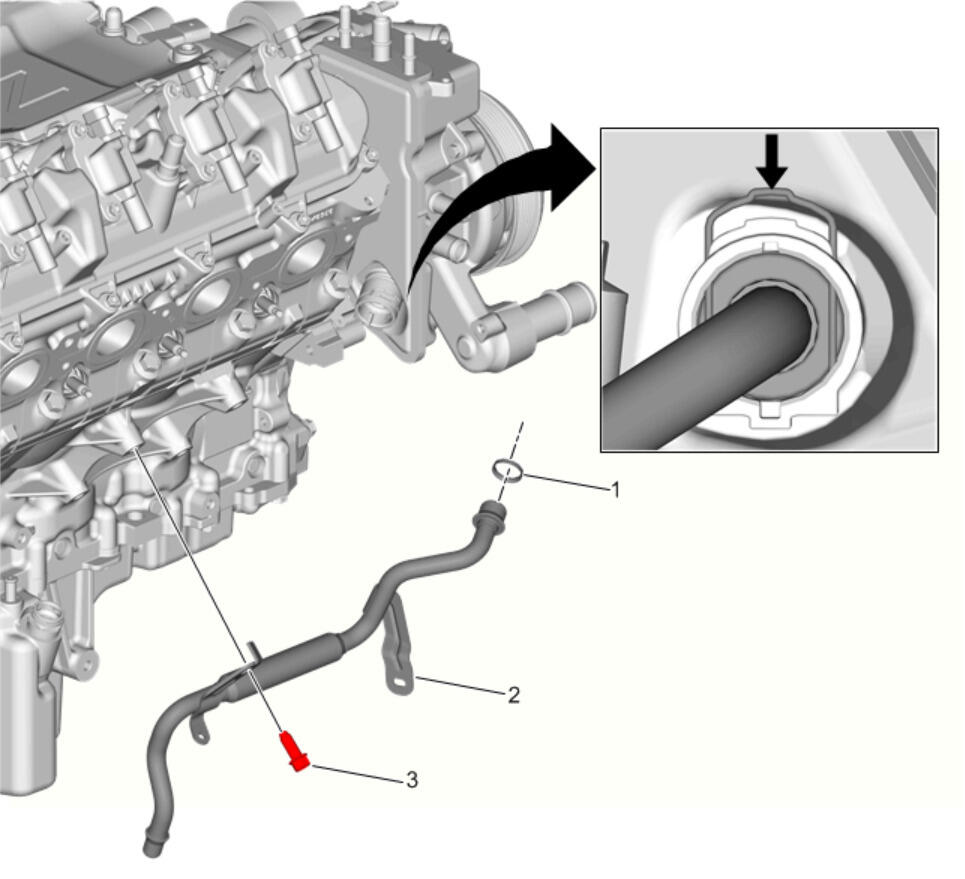

Positive Crankcase Ventilation Oil Separator Drain Pipe Bolt (1) - Install
Positive Crankcase Ventilation Oil Separator Drain Pipe Bolt - Tighten to 25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

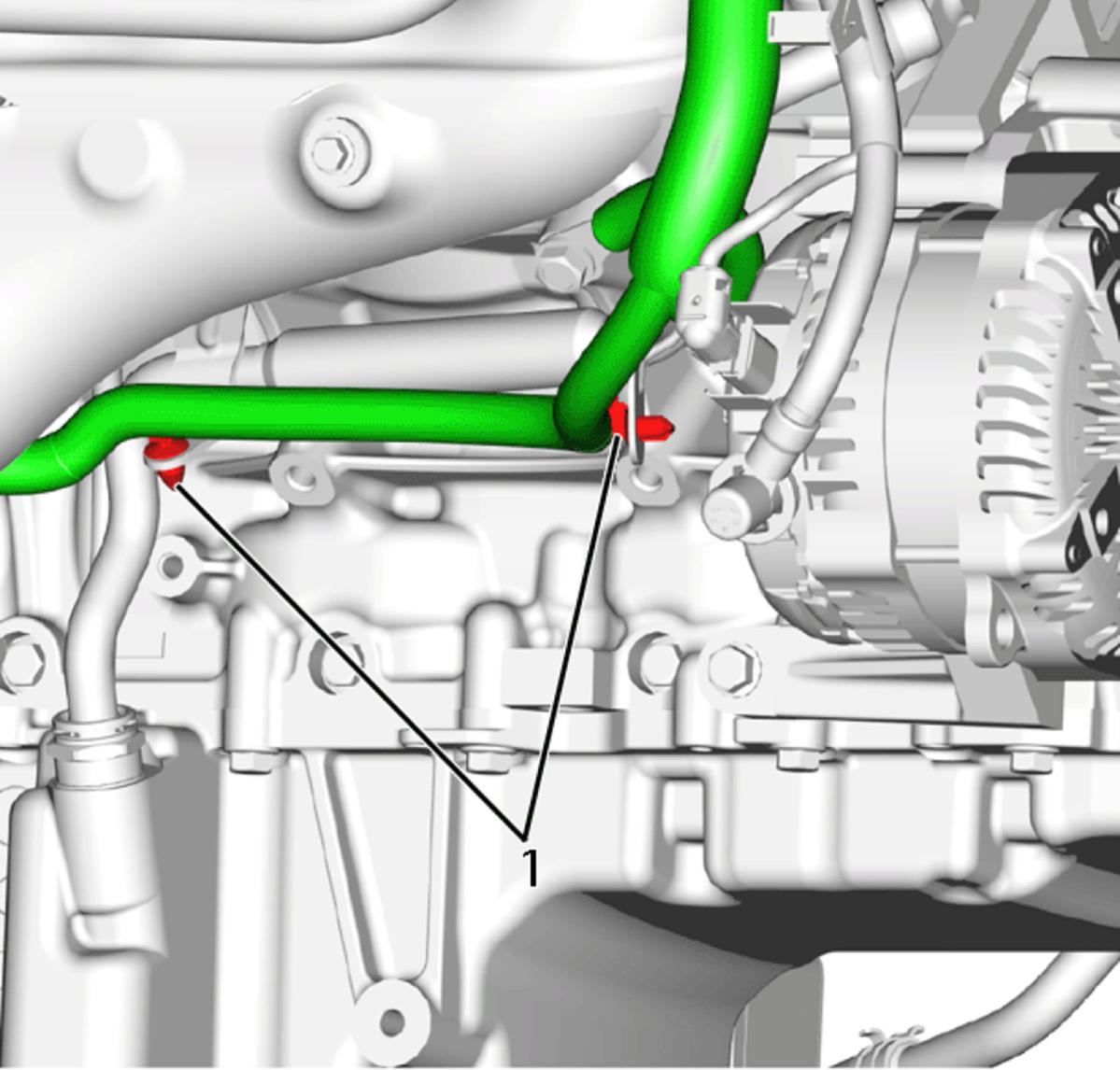

Wiring Harness Clip (1) - Connect [2x]
Engine Coolant Manifold Replacement (LT1) , or Engine Coolant Manifold Replacement (LT4) - Install
