Single Use Fasteners and Components

WARNING: This page is about a different variant/trim than selected.

Intake Manifold Gasket [8x]

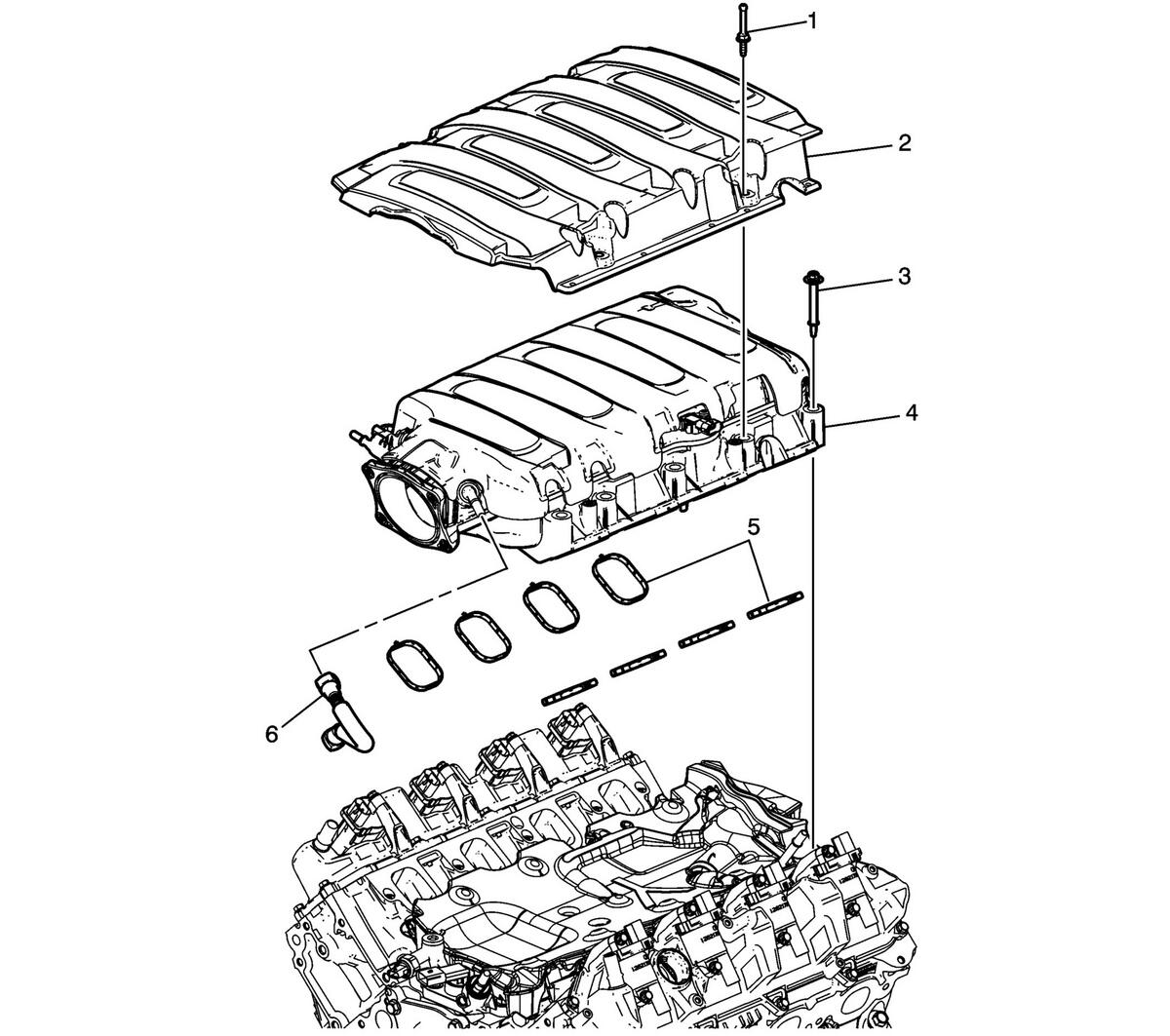

Fig 1: Exploded View Of Intake Manifold Removal Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Intake Manifold Cover Stud
2	Intake Manifold Cover Assembly
3	Intake Manifold Bolt
4	Intake Manifold Assembly
5	Intake Manifold Gasket NOTE: DISCARD gasket it is not reusable. Refer to Replacing Engine Gaskets .
6	PCV Tube Procedure The PCV tube is connected to the intake manifold and the engine via a plastic collar quick connect fitting. To remove the PCV tube, refer to Plastic Collar Quick Connect Fitting Service .
