Single Use Fasteners and Components
WARNING: This page is about a different variant/trim than selected.
- Exhaust Manifold Gasket
- Exhaust Manifold Bolt [5x]

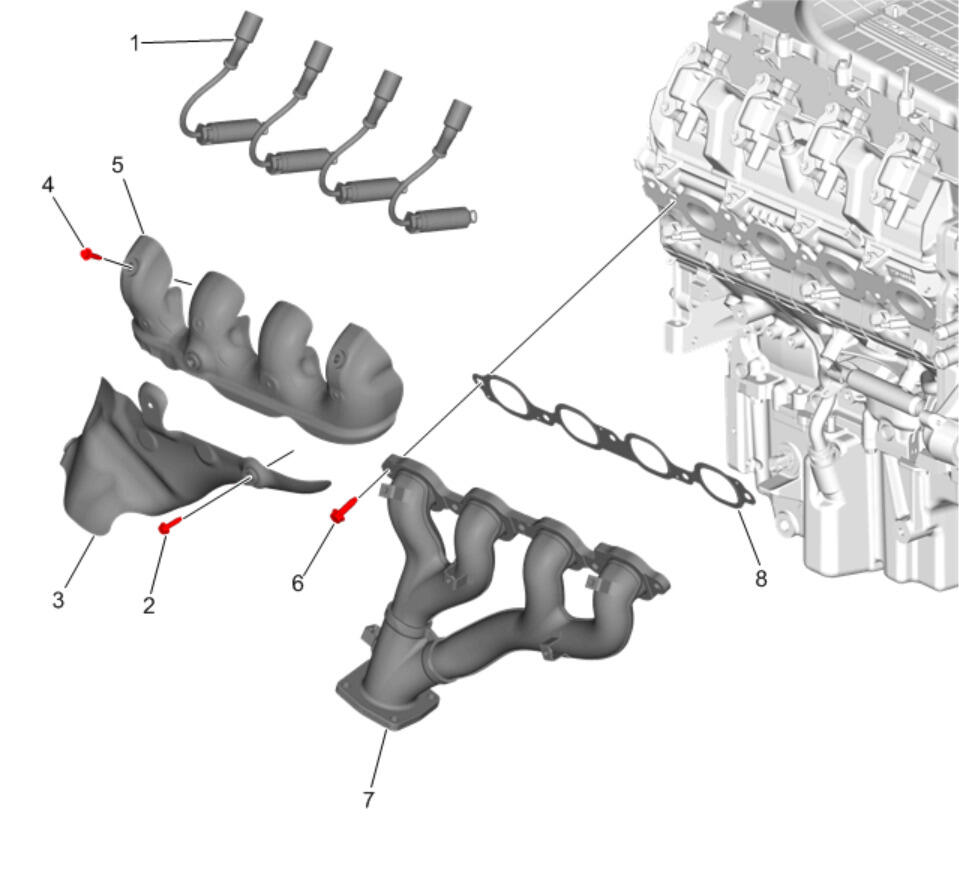

| Callout | Component Name |
|---|---|
| 1 | Spark Plug Wire |
| 2 | Heat Shield Bolt (Qty. 3) |
| 3 | Heat Shield |
| 4 | Heat Shield Bolt (Qty. 2) |
| 5 | Heat Shield |
| 6 | Exhaust Manifold Bolt (Qty. 5) Procedure DISCARD bolt. DO NOT reuse. |
| 7 | Exhaust Manifold |
| 8 | Exhaust Manifold Gasket Procedure DISCARD gasket. DO NOT reuse. Replacing Engine Gaskets |
