Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the oil pan. Oil Pan Replacement .
  2. Remove the crankshaft oil deflector. Oil Pan Disassemble .

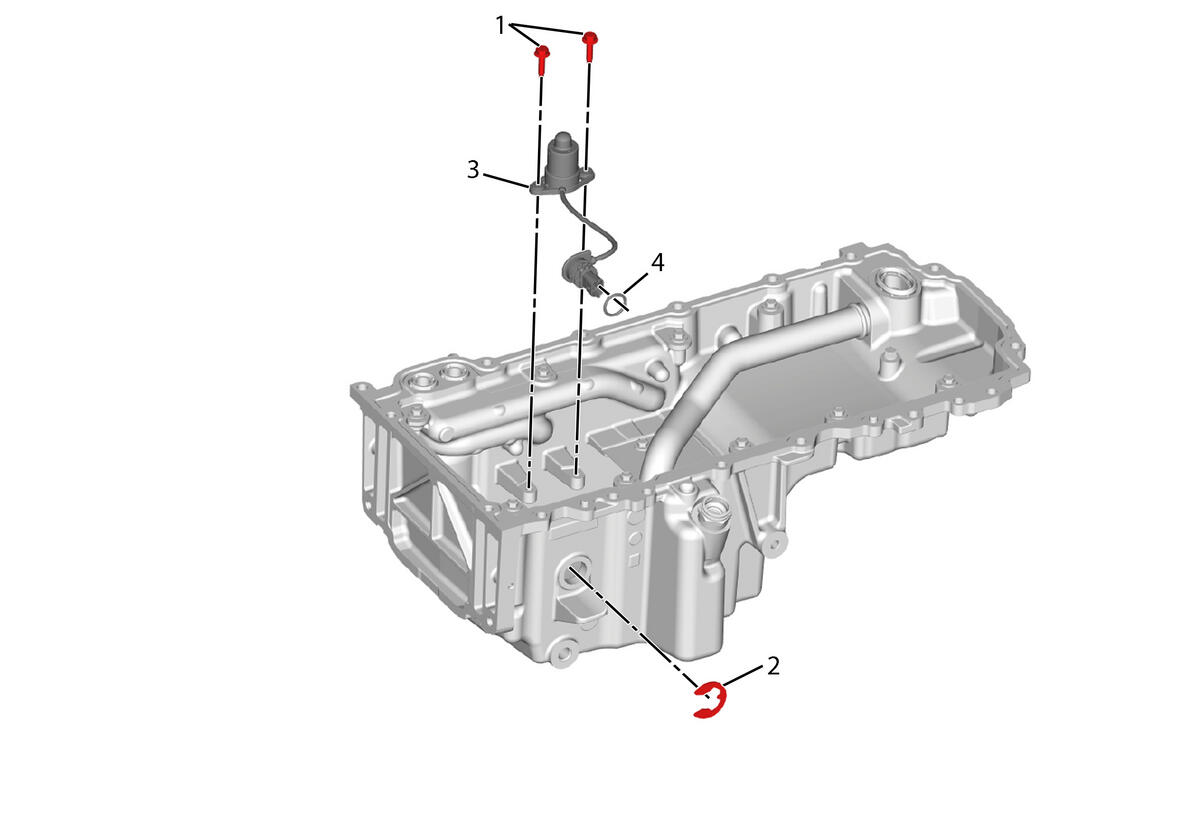

  3. GM4090748Courtesy of GENERAL MOTORS COMPANY

    Remove the engine oil level indicator switch bolts (1), retaining clip (2) and switch (3). DISCARD seal (4).

  4. Oil Pan Cleaning and Inspection .
