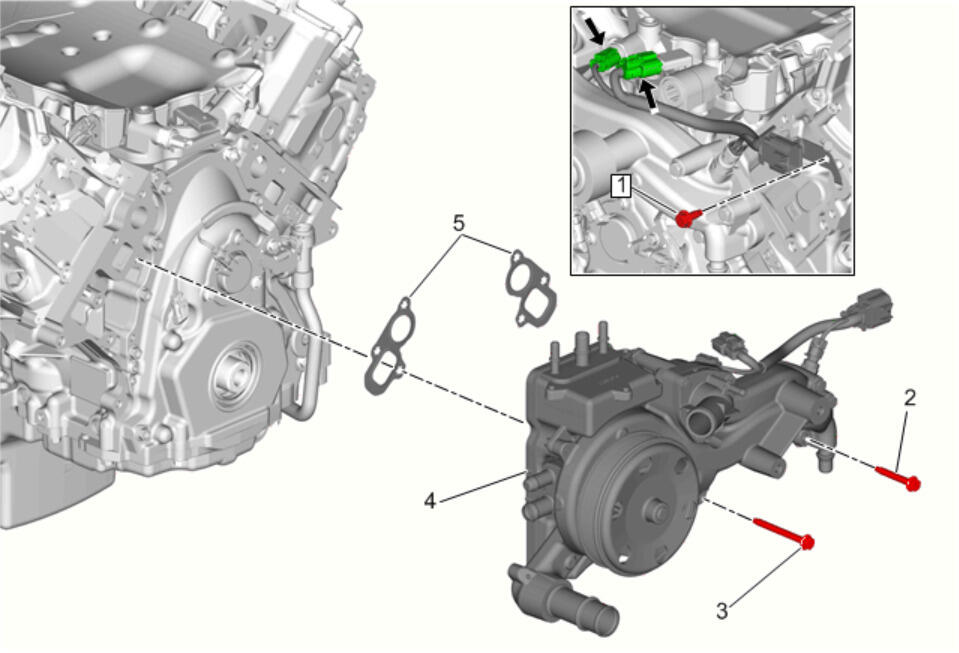

Water Pump Gasket @ Engine Assembly [2x]
| Callout | Component Name |
|---|---|
| Preliminary Procedure The oil pressure sensor and valve lifter oil manifold connectors must be disconnected before the engine coolant manifold can be removed. |
|
| 1 | Jumper Harness Bolt |
| 2 | Engine Coolant Manifold Bolt |
| 3 | Engine Coolant Manifold Bolt |
| 4 | Engine Coolant Manifold Assembly |
| 5 | Water Pump Gasket [2x]
NOTE:
Discard gasket, it is not reusable. Refer to Replacing Engine Gaskets . |
