Cylinder Head Removal - Left Side
WARNING: This page is about a different variant/trim than selected.

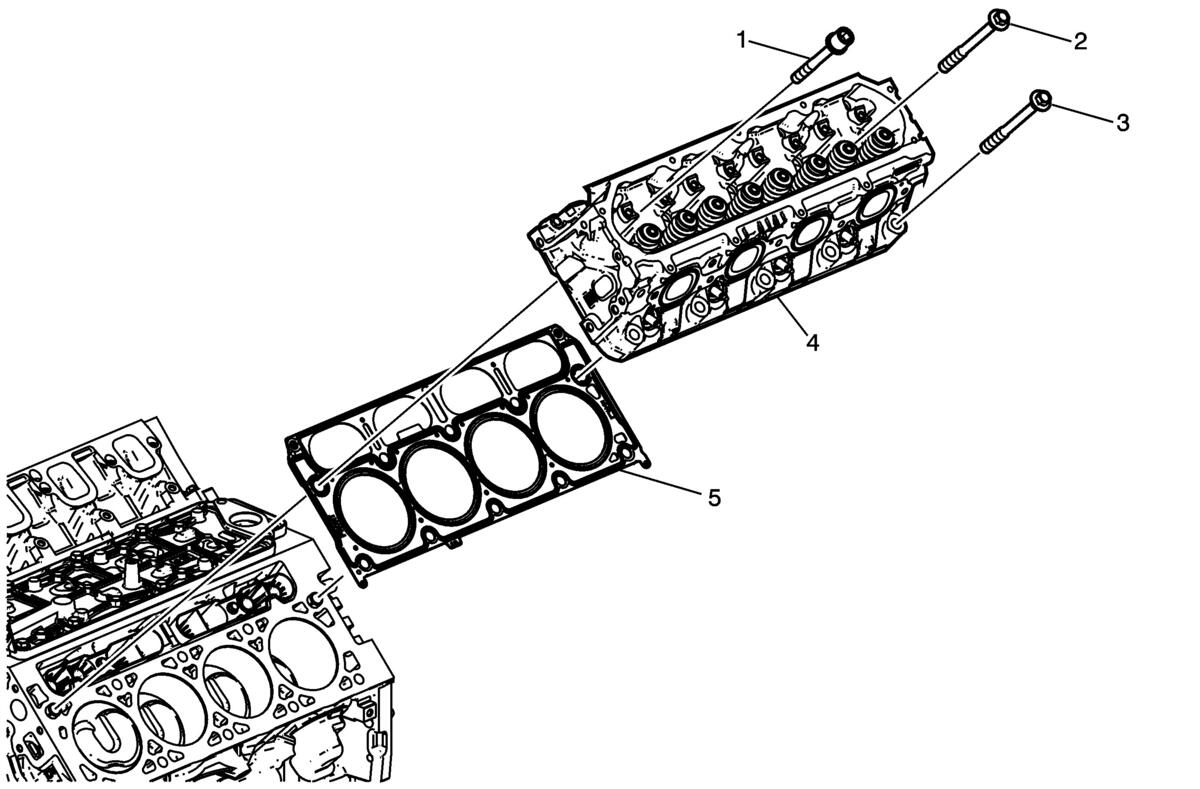

| Callout | Component Name |
|---|---|
| Preliminary Procedure If camshaft lobe lift measurement is required, perform measurement prior to removal of the cylinder heads. Refer to Camshaft and Bearings Cleaning and Inspection . |
|
| 1 | Cylinder Head Bolt |
| 2 | Cylinder Head Bolt |
| 3 | Cylinder Head Bolt |
| 4 | Cylinder Head Assembly |
| 5 | Cylinder Head Gasket Refer to Replacing Engine Gaskets . |
