Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM5438940Courtesy of GENERAL MOTORS COMPANY

    Install the J-41479-2A  Crankshaft Rear Oil Seal Installation Guide (1)

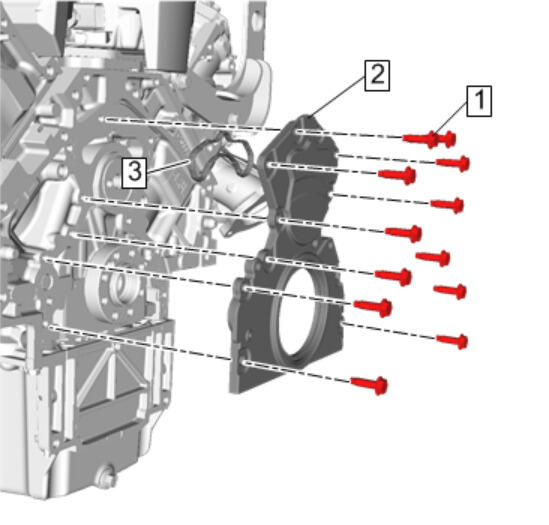

  2. GM4865982Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Rear Oil Seal Housing (2) - Install - Crankshaft Rear Oil Seal Housing Installation

  3. Crankshaft Rear Oil Seal - Install NEW - Crankshaft Rear Oil Seal Replacement (with Automatic Transmission)
  4. Oil Pan - Install - Oil Pan Replacement
  5. Install the automatic transmission flex plate. Automatic Transmission Flex Plate Replacement
