Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

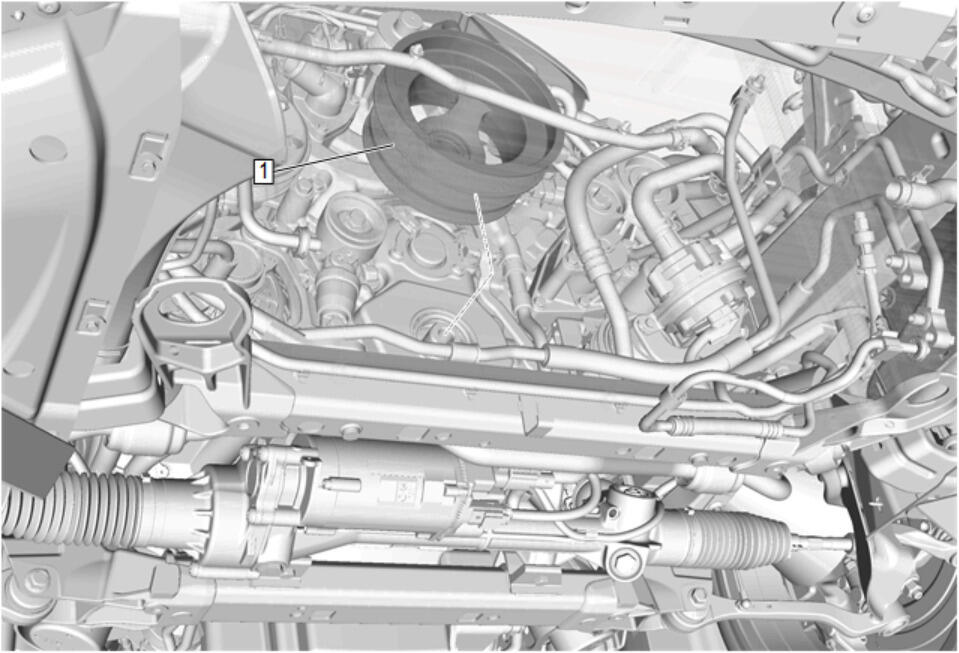

Crankshaft Balancer (1) - Loosely install
Courtesy of GENERAL MOTORS COMPANY

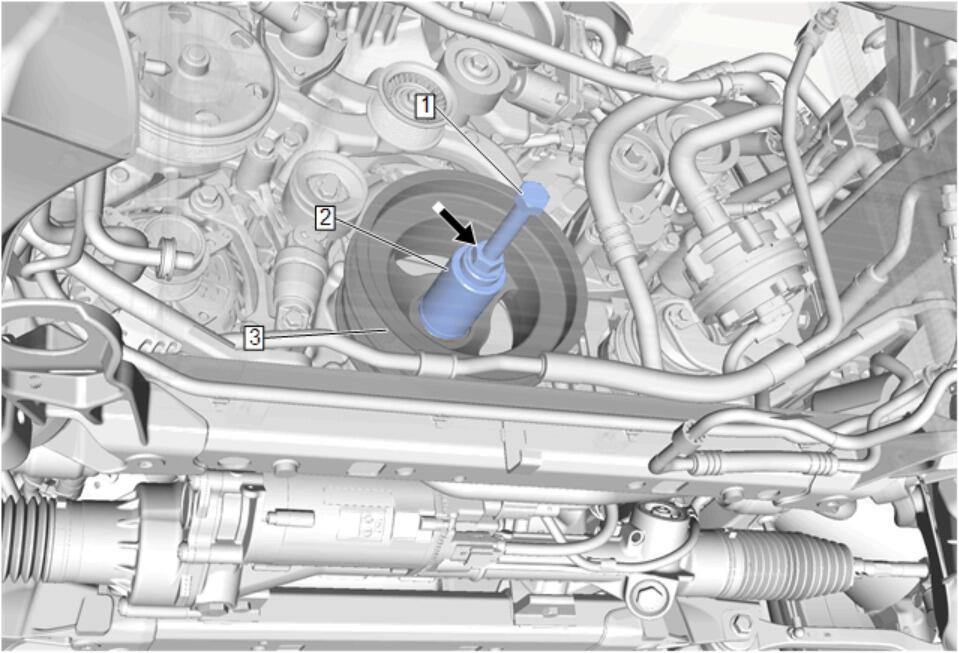

Install the EN-41478-A Crankshaft Front Oil Seal Installer (1) and the EN-41665-A Crankshaft Balancer and Sprocket Installer (2) to the crankshaft balancer (3).
Use the adjustment nut on the EN-41478-A Crankshaft Front Oil Seal Installer (1) to properly seat the crankshaft balancer (3).
Once the crankshaft balancer has been properly seated, remove the EN-41478-A Crankshaft Front Oil Seal Installer (1) and the EN-41665-A Crankshaft Balancer and Sprocket Installer (2).
Courtesy of GENERAL MOTORS COMPANY

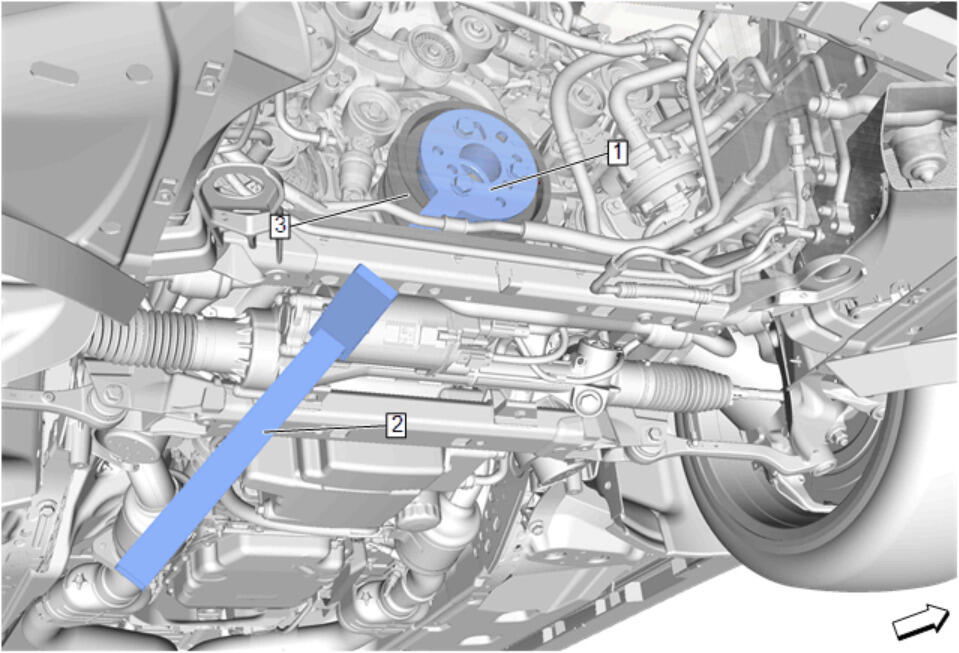

Install the EN-52287 Balancer Holding Kit (1) and the EN-956-1 Extension Bar (2) to the crankshaft balancer (3).
Courtesy of GENERAL MOTORS COMPANY

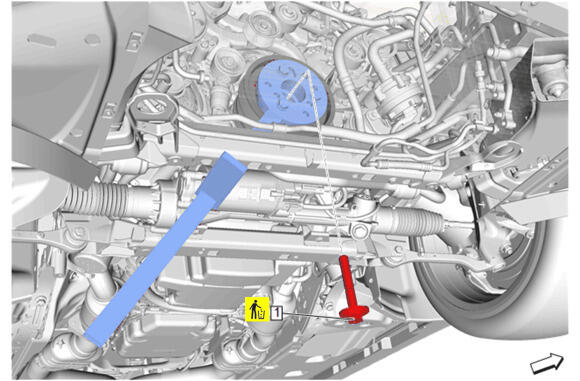

Crankshaft Balancer Bolt (1) - Install NEW - Crankshaft Balancer Installation (LT4) , or Crankshaft Balancer Installation (LT1)
Remove the special tools.
Courtesy of GENERAL MOTORS COMPANY

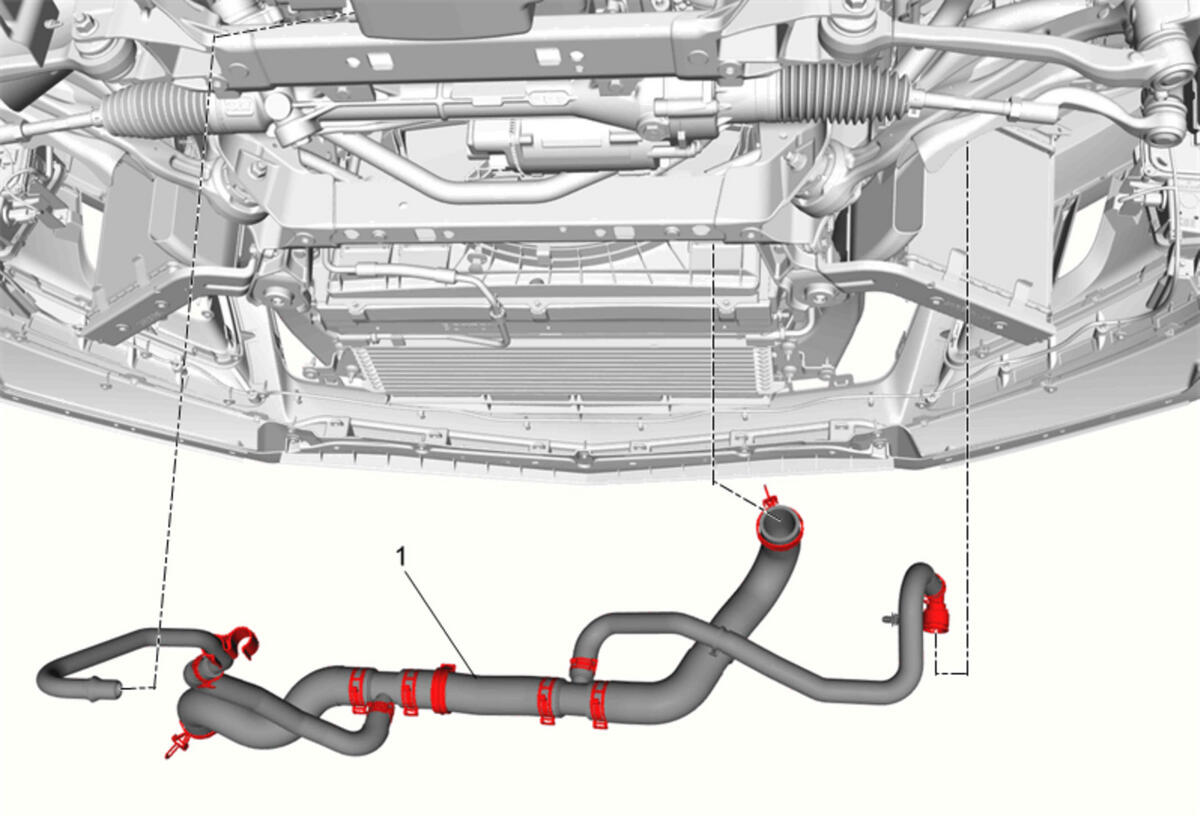

Radiator Outlet Hose (1) - Install - Radiator Outlet Hose Replacement (LT1 with V18 V03) , or Radiator Outlet Hose Replacement (LT4)
Courtesy of GENERAL MOTORS COMPANY

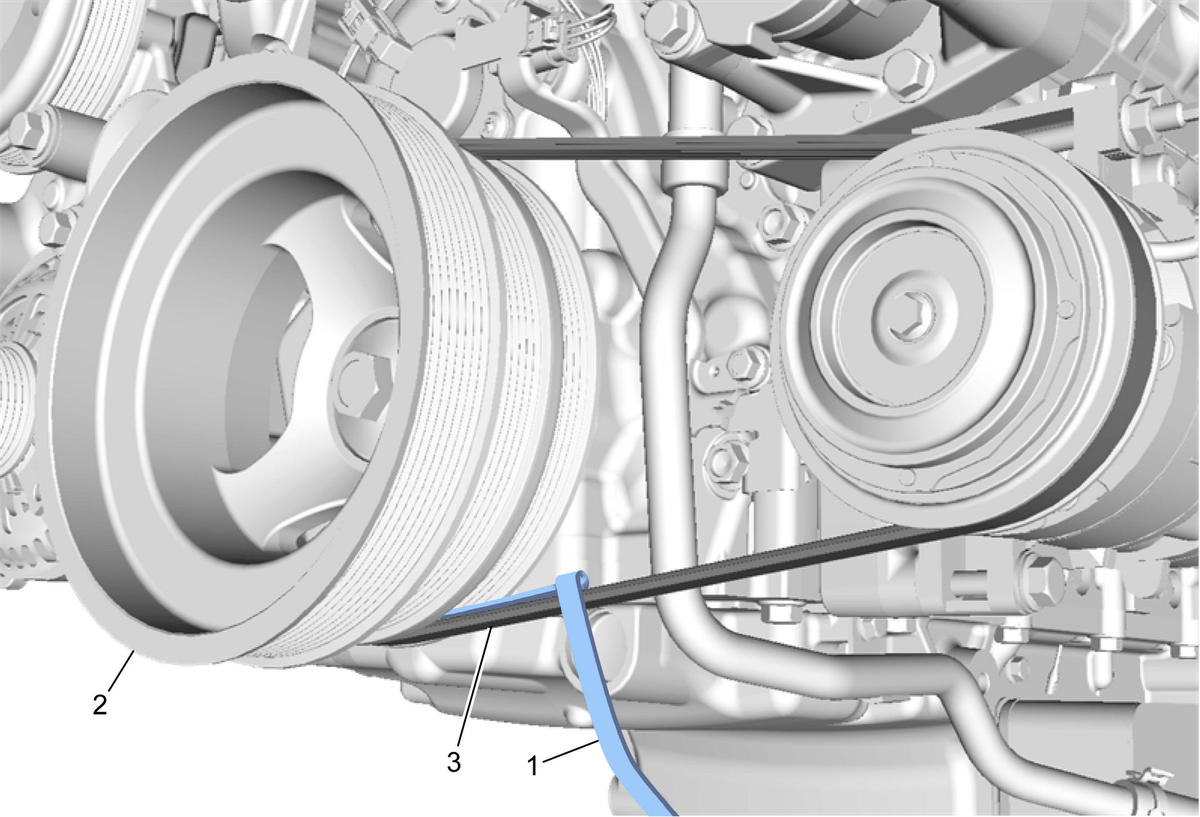

Air Conditioning Compressor Belt (3) - Install - Air Conditioning Compressor Belt Replacement
Courtesy of GENERAL MOTORS COMPANY

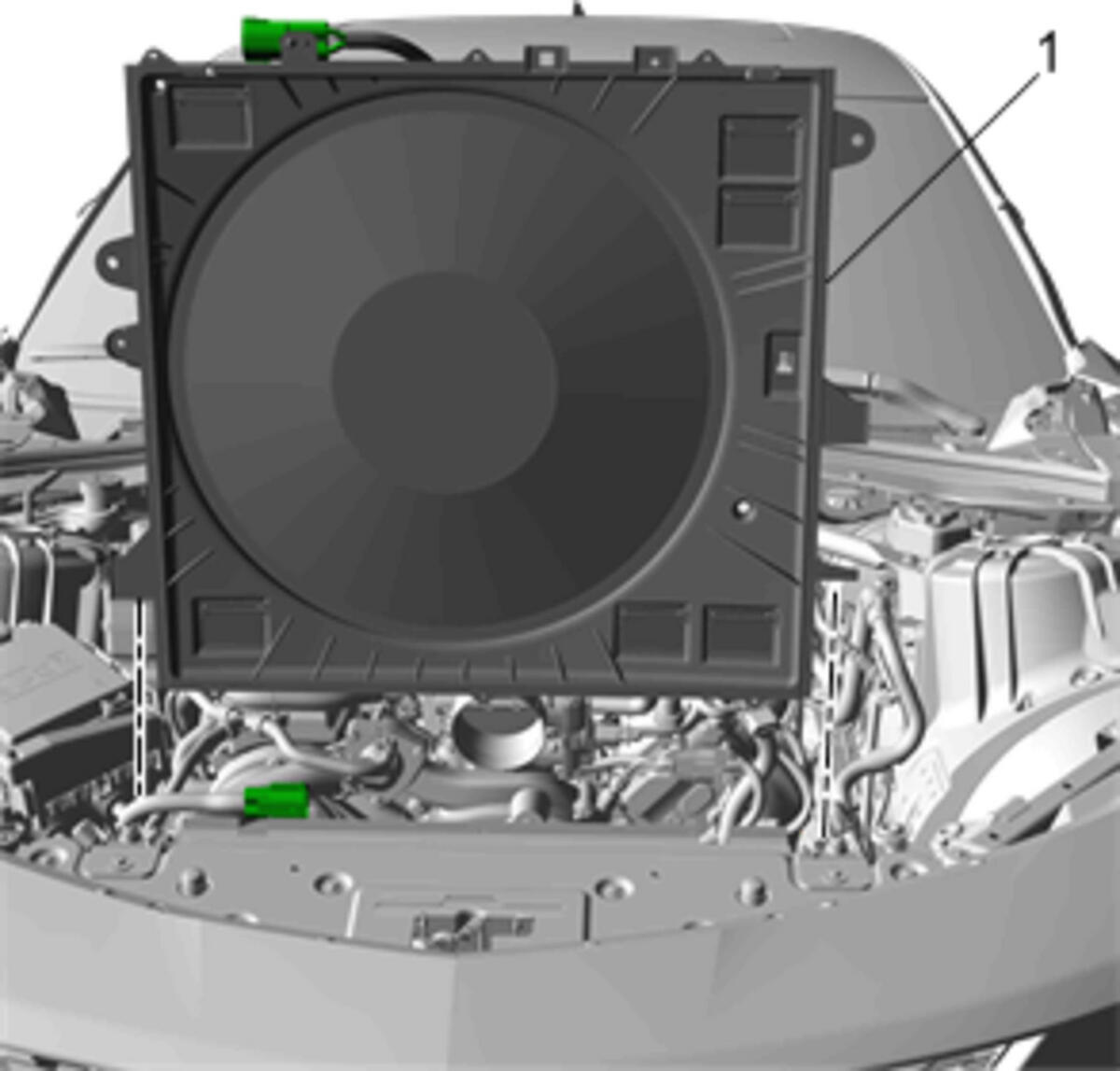

Engine Coolant Fan (1) - Install - Engine Coolant Fan Replacement (LT1 V18) , or Engine Coolant Fan Replacement (LT4)
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
