Single Use Fasteners and Components
WARNING: This page is about a different variant/trim than selected.

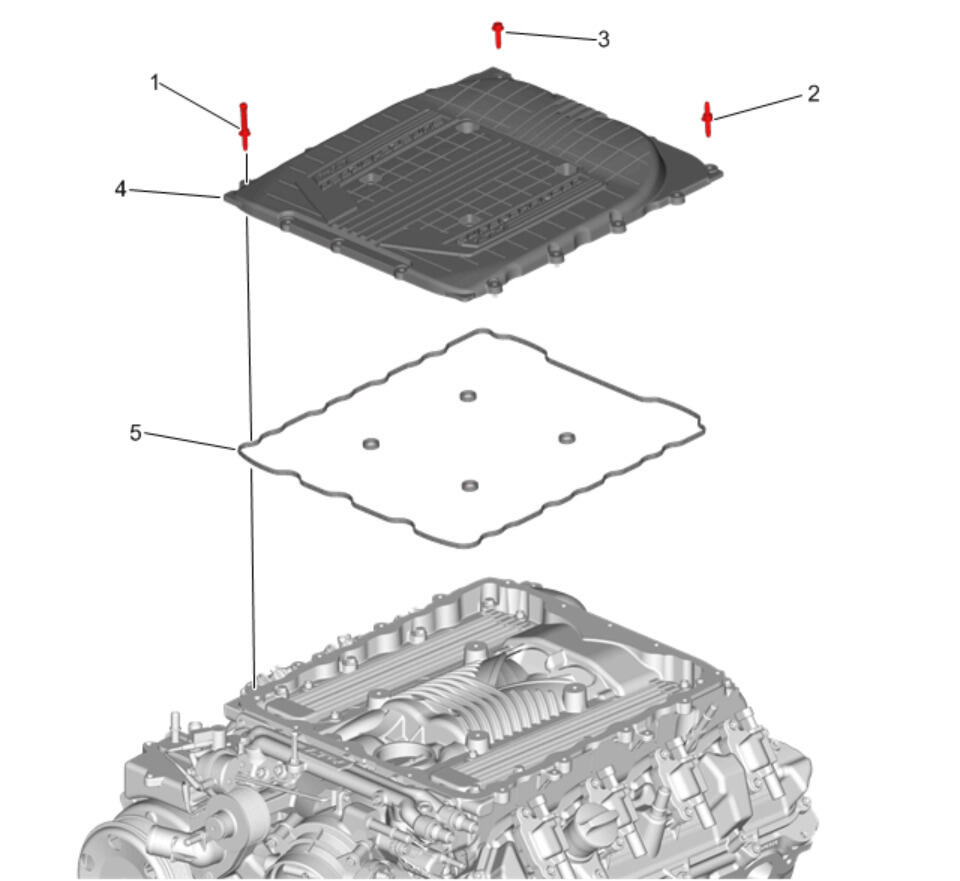

Charge Air Cooler Housing Gasket
| Callout | Component Name |
|---|---|
| 1 | Charge Air Cooler Cover Ball Stud (Qty. 4) |
| 2 | Charge Air Cooler Cover Double Ended Stud (Qty. 5) |
| 3 | Charge Air Cooler Cover Bolt (Qty: 11) |
| 4 | Charge Air Cooler Cover |
| 5 | Charge Air Cooler Housing Gasket
NOTE:
Discard gasket it is not reusable. Refer to Replacing Engine Gaskets . |
