Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Remove the automatic transmission. Transmission Replacement (with LT1, LT4)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The flex plate does not use a locating pin for alignment and will not initially seat against the crankshaft flange, but will be pulled onto the crankshaft by the engine flex plate bolts. This procedure requires a 3 stage tightening process.

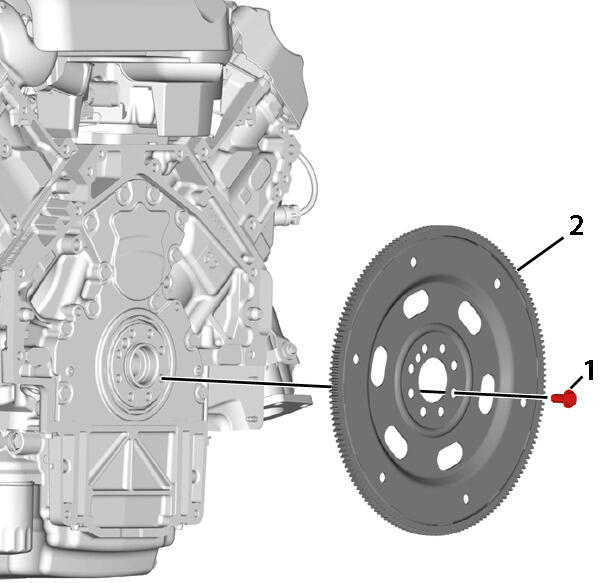

Remove and DISCARD the flex plate bolts (1).

NOTE:

Mark the flex plate and crankshaft before removal.

Remove the flex plate (2).
