Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Drive Belt - Remove - Drive Belt Replacement - Accessory (LT1) , or Drive Belt Replacement - Accessory (LT4)

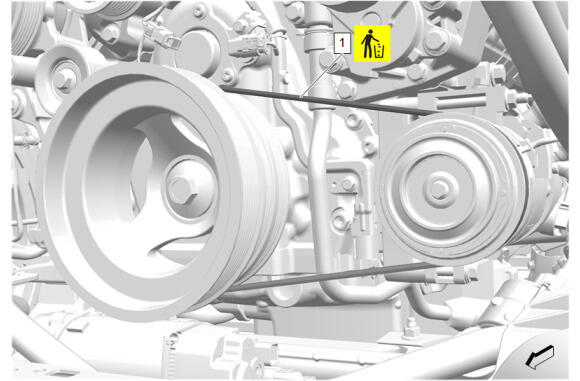

  2. GM5896019Courtesy of GENERAL MOTORS COMPANY

    Using a suitable tool, cut the air conditioning compressor belt (1).

  3. Air Conditioning Compressor Belt (1) - Remove and DISCARD
