Supercharger Bypass Valve Actuator Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

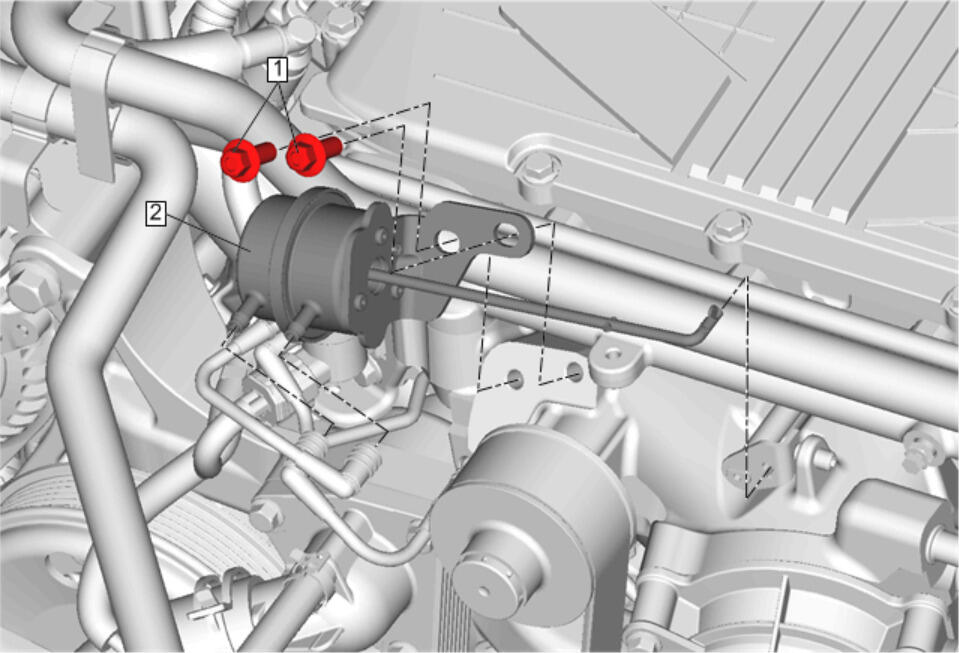

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT1 - Oil Separator To Air Cleaner Outlet Duct) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT1 - Left Rocker Arm Cover To Oil Separator) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT1 - Right Rocker Arm Cover To Oil Separator) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Intake Manifold To PCV Valve) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT4 - Left Rocker Arm Cover To Oil Separator) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT4 - Oil Separator To Air Cleaner Outlet Duct) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT4 - Right Rocker Arm Cover To Oil Separator)
1	Supercharger Bypass Valve Actuator Bolt CAUTION: Refer to Fastener Caution . Tighten 27 N.m (20 lb ft)
2	Supercharger Bypass Valve Actuator Procedure Disconnect the vacuum tubes from the supercharger bypass valve actuator. Install and adjust the supercharger bypass valve actuator by following step 11 in supercharger assemble. Compressor Air Intake Supercharger Assemble

Callout

Component Name

Supercharger Bypass Valve Actuator Bolt

CAUTION:

Tighten
27 N.m (20 lb ft)

Supercharger Bypass Valve Actuator

Procedure

Disconnect the vacuum tubes from the supercharger bypass valve actuator.
Install and adjust the supercharger bypass valve actuator by following step 11 in supercharger assemble. Compressor Air Intake Supercharger Assemble
