Supercharger Air Inlet Pressure Sensor Replacement
WARNING: This page is about a different variant/trim than selected.
NOTE:

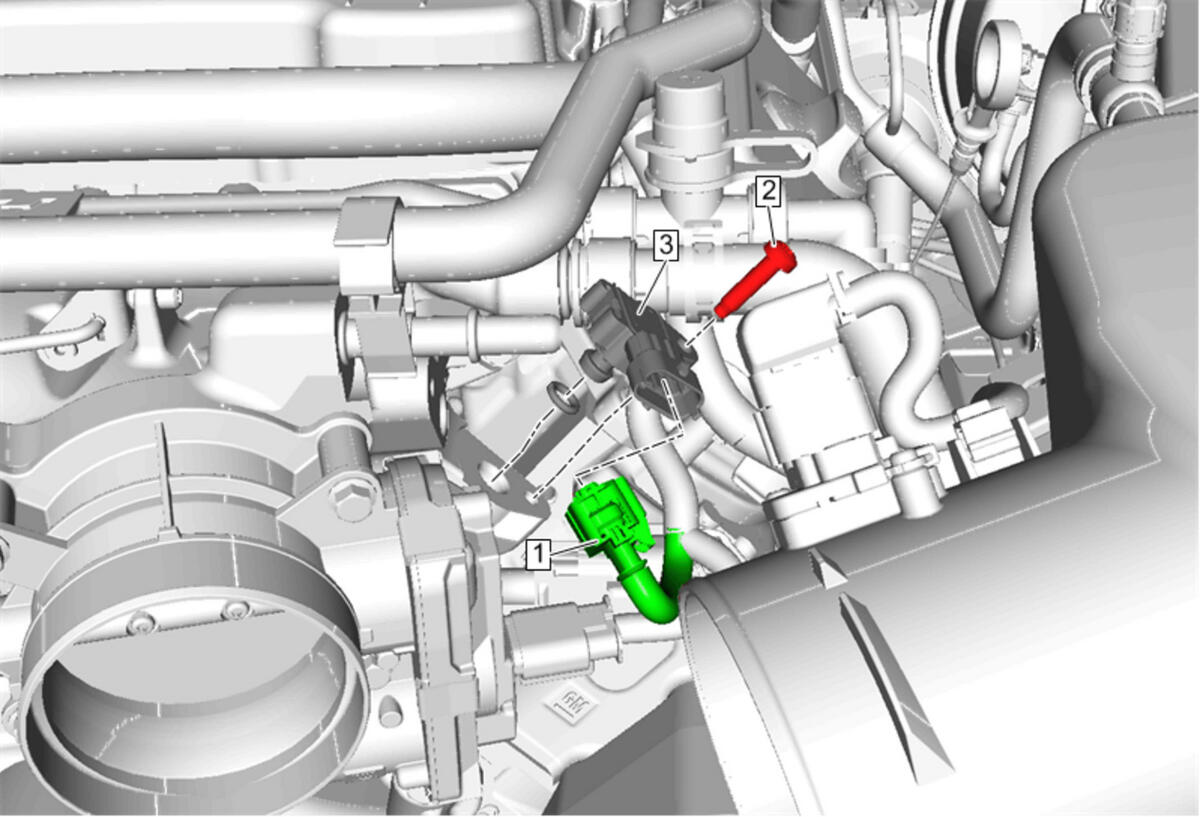

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Evaporative Emission Canister Purge Solenoid Valve Replacement (LT1) , or Evaporative Emission Canister Purge Solenoid Valve Replacement (LT4) |
|
| 1 | Electrical Connector |
| 2 | Supercharger Air Inlet Pressure Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Supercharger Air Inlet Pressure Sensor
NOTE:
Always install the NEW O-ring provided with the supercharger pressure sensor. |
