Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (LT4)
WARNING: This page is about a different variant/trim than selected.
NOTE:

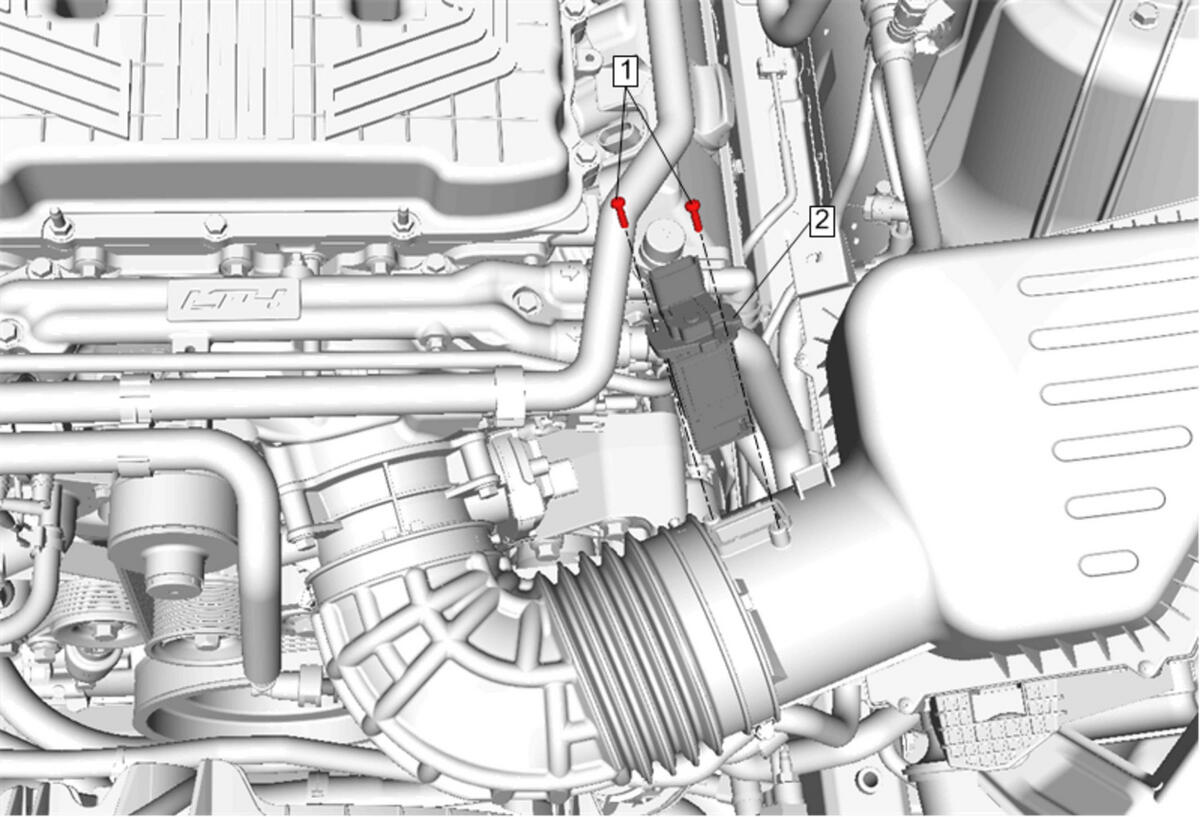

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Mass Airflow Sensor with Intake Air Temperature Sensor Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Mass Airflow Sensor with Intake Air Temperature Sensor Procedure Disconnect the electrical connector. |
