Ignition Coil Replacement (Bank 2)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

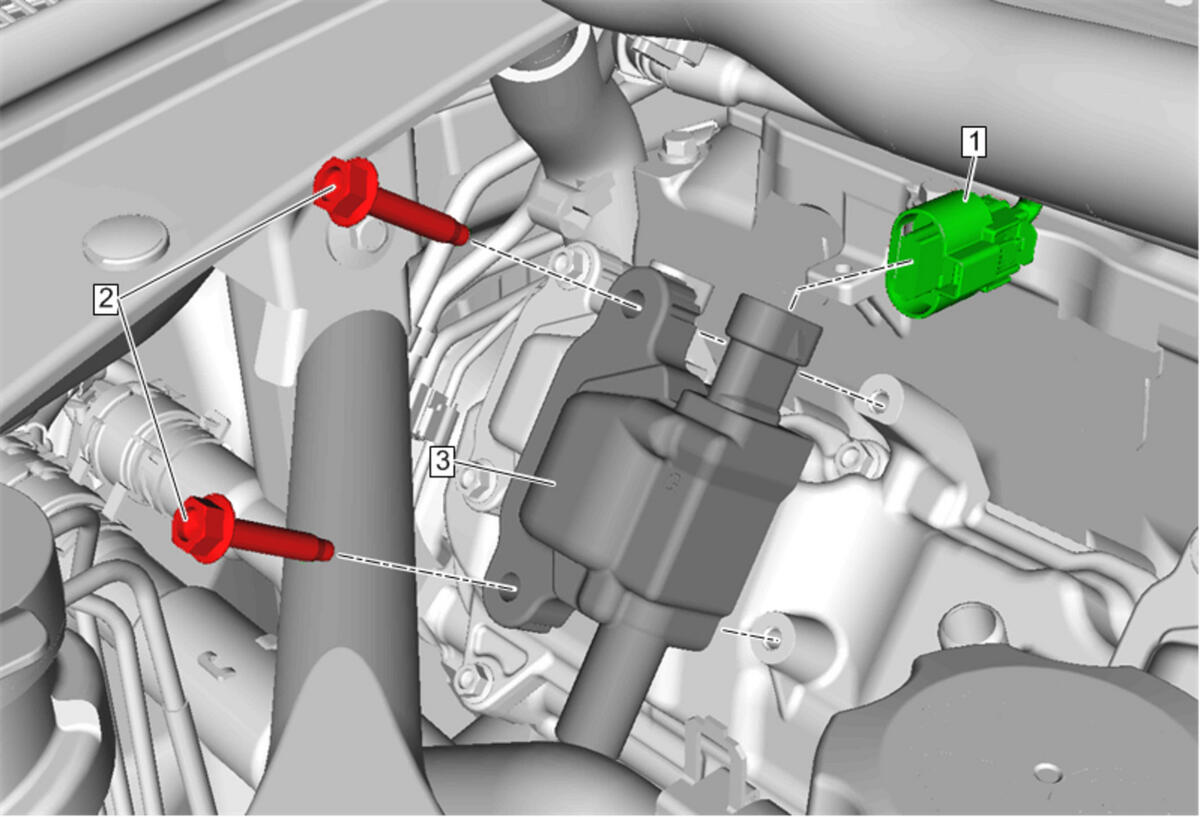

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Valve Rocker Arm Cover Insulator Replacement - Right Side (LT1) , or Valve Rocker Arm Cover Insulator Replacement - Right Side (LT4) Spark Plug Wire Replacement
1	Electrical Connector
2	Ignition Coil Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Ignition Coil
