Single Use Fasteners and Components
WARNING: This page is about a different variant/trim than selected.
- Charge Air Cooler Housing Gasket
- Intake Manifold Gasket
NOTE:

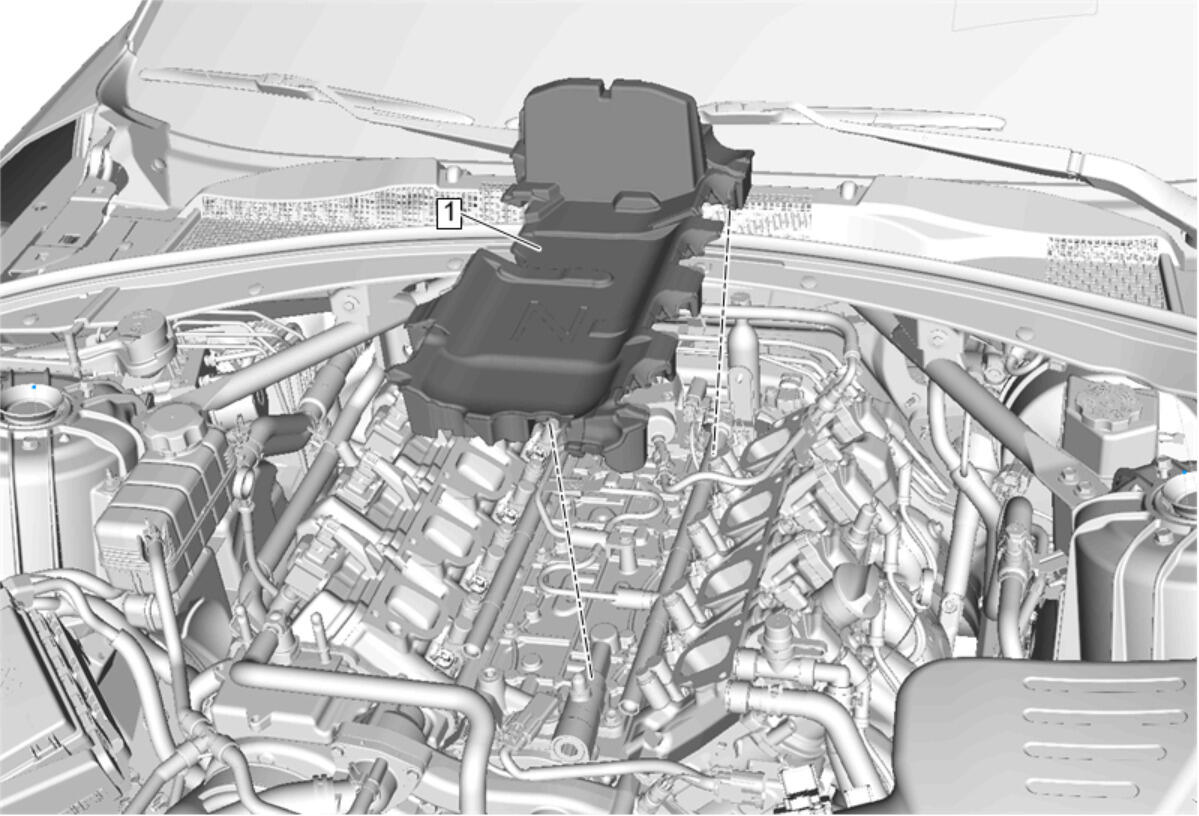

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Compressor Air Intake Supercharger and Gasket Replacement |
|
| 1 | Fuel Pump Insulator
WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. |
