Fuel Feed Pipe Replacement (LT1, LT4 Fuel Feed to Fuel Pump)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

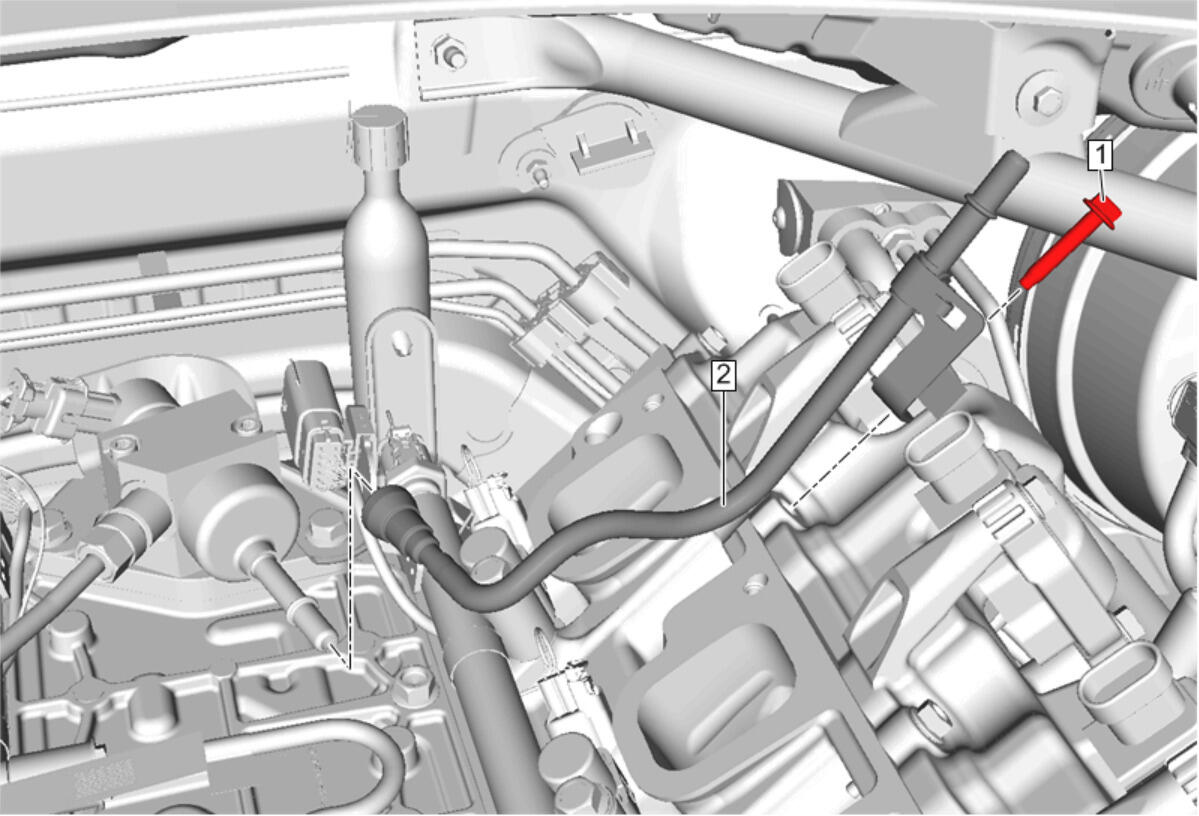

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Relieve the fuel system pressure. Fuel Pressure Relief Fuel Pump Insulator Replacement (LT1) , or Fuel Pump Insulator Replacement (LT4)
1	Fuel Feed Pipe Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Feed Pipe Procedure Disconnect the fuel feed pipe metal collar fitting. Metal Collar Quick Connect Fitting Service

Callout

Component Name

Preliminary Procedures

Fuel Feed Pipe Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Fuel Feed Pipe

Procedure

Disconnect the fuel feed pipe metal collar fitting. Metal Collar Quick Connect Fitting Service
