Installation Procedure
WARNING: This page is about a different variant/trim than selected.
Fuel Feed Pipe (1) @Retainer (3) - Install [5x]
- Fuel Feed Pipe (1) @Fuel Pump Fuel Feed Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
- Catalytic Converter-Right Side - Install - Catalytic Converter Replacement - Right Side (LT1, LT4)
- Front Body Exhaust Heat Shield-Right Side - Install - Front Body Exhaust Heat Shield Replacement (Right) , or
- Underbody Front Air Deflector-Right Side - Install - Underbody Front Air Deflector Replacement - Right Side
- Lower the vehicle.

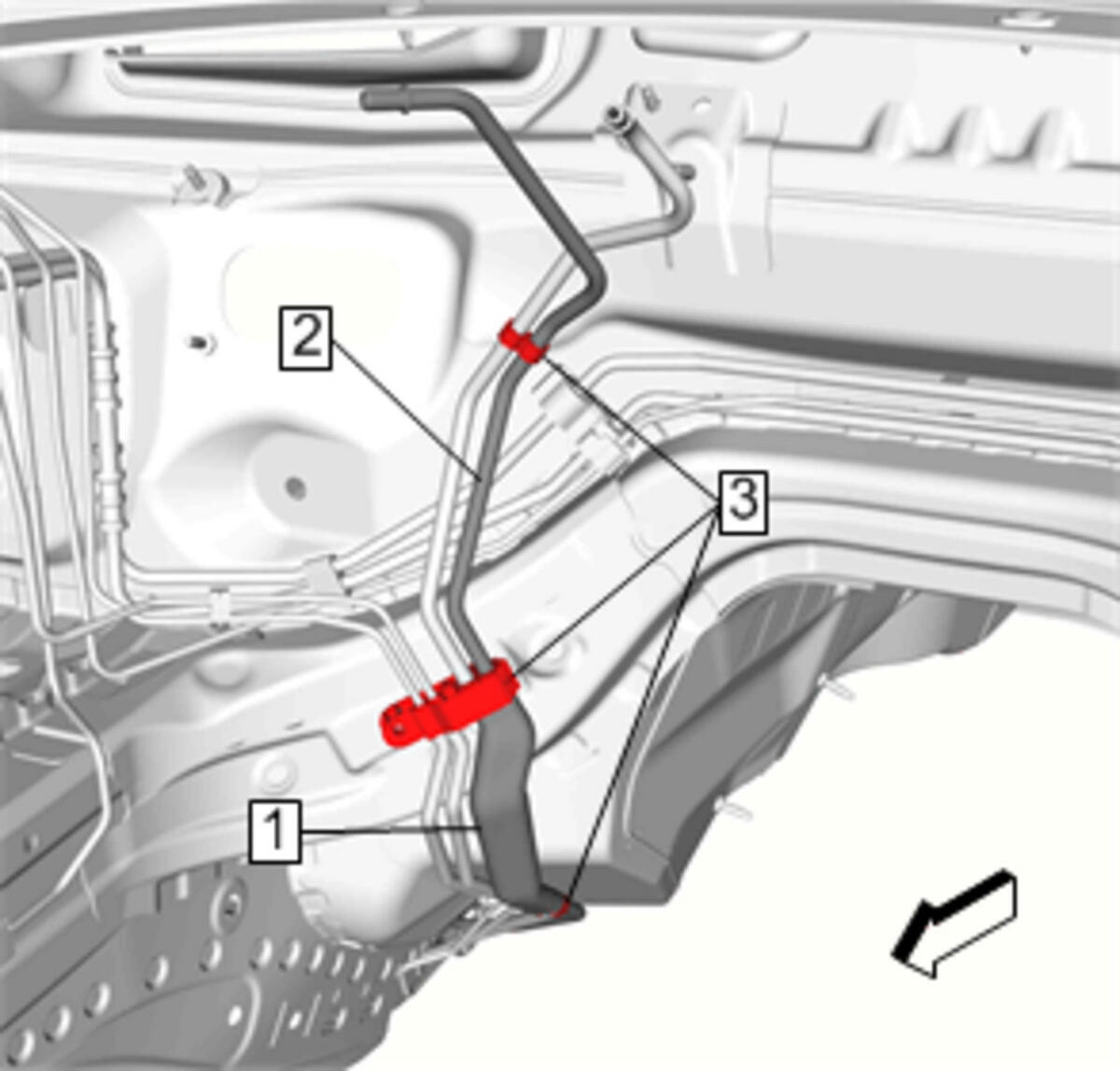

Fuel Feed Pipe (2) @Retainer (3) - Install [3x]
- Heat Sleeve (1) - Install
- Fuel Feed Front Hose - Install - Fuel Feed Front Hose Replacement
- Pressurize the fuel system and inspect for leaks.
