Front Intake Air Duct Hole Plug Replacement (LT4)

WARNING: This page is about a different variant/trim than selected.

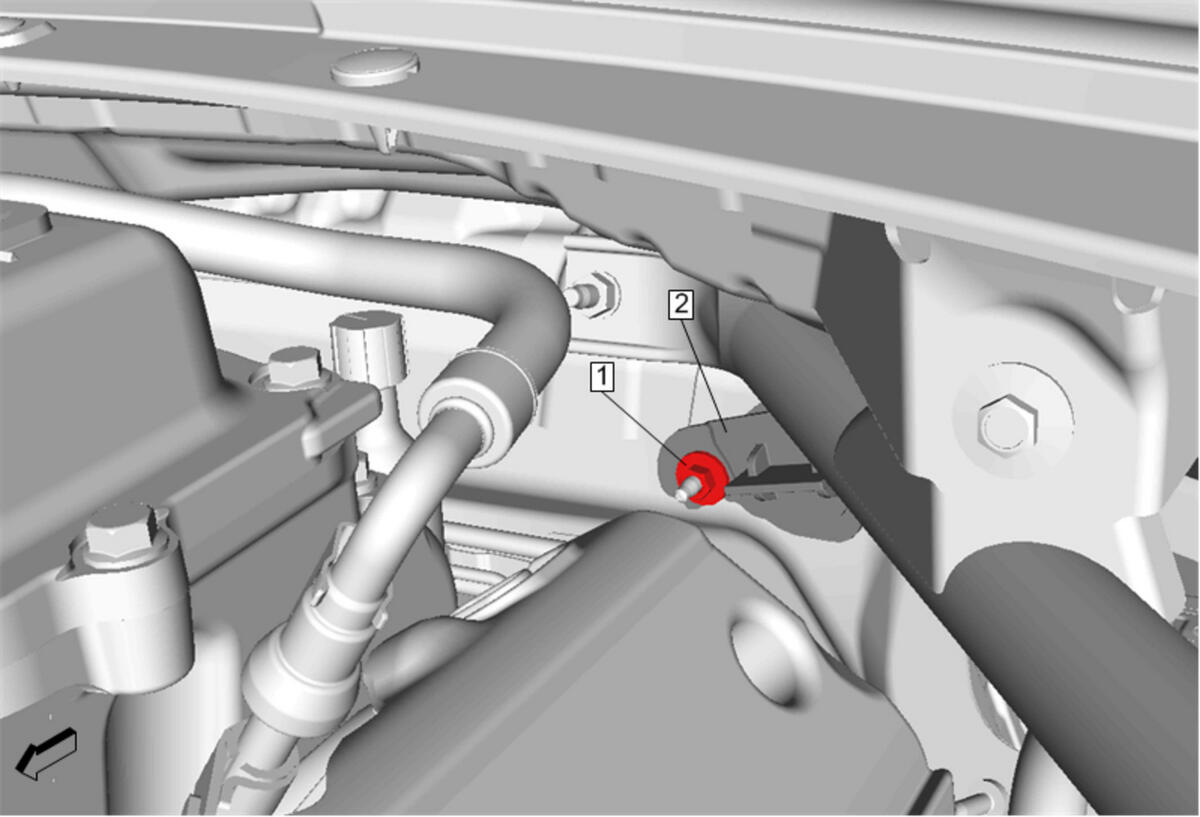

GM4562504Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
1 Front Intake Air Duct Hole Plug Nut
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Front Intake Air Duct Hole Plug
