Evaporative Emission Canister Purge Tube Replacement (LT4)
WARNING: This page is about a different variant/trim than selected.
NOTE:

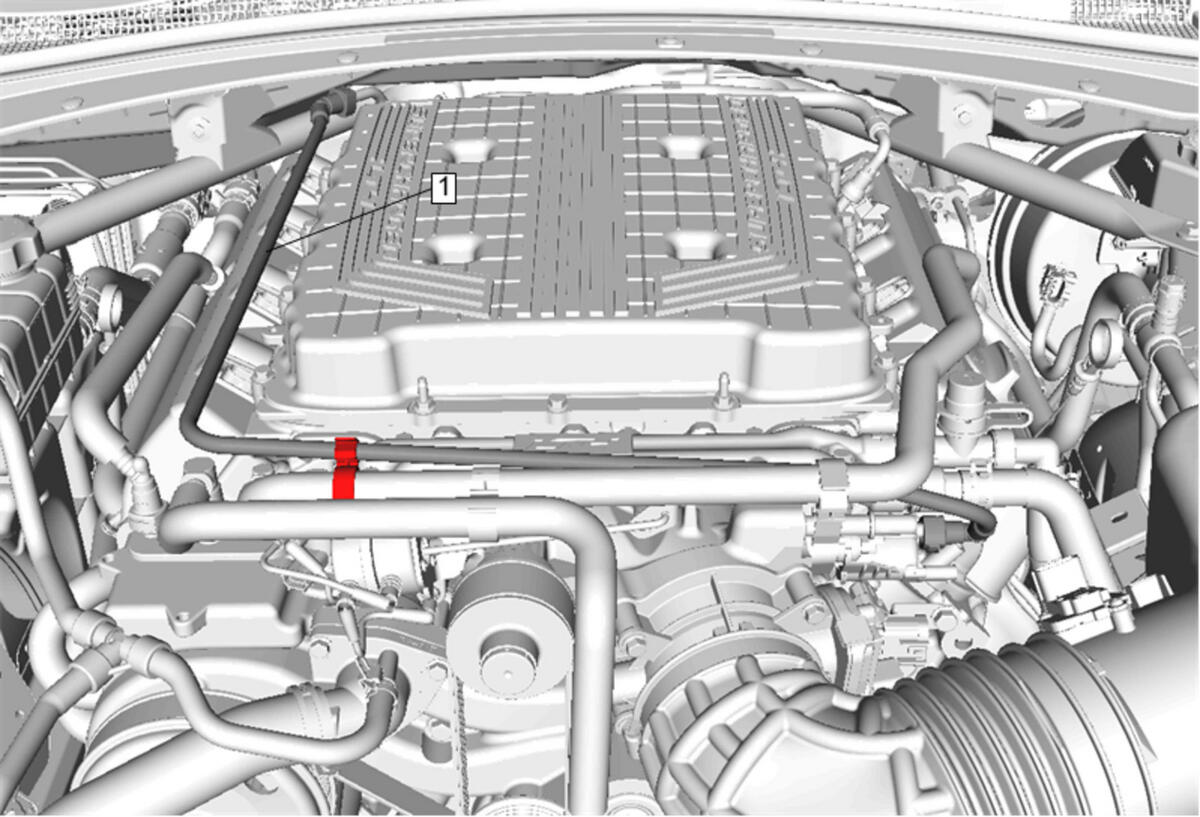

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Evaporative Emission Canister Purge Tube
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning . Procedure Disconnect the quick connect fittings and remove from retainers. Plastic Collar Quick Connect Fitting Service |
