Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

NOTE:

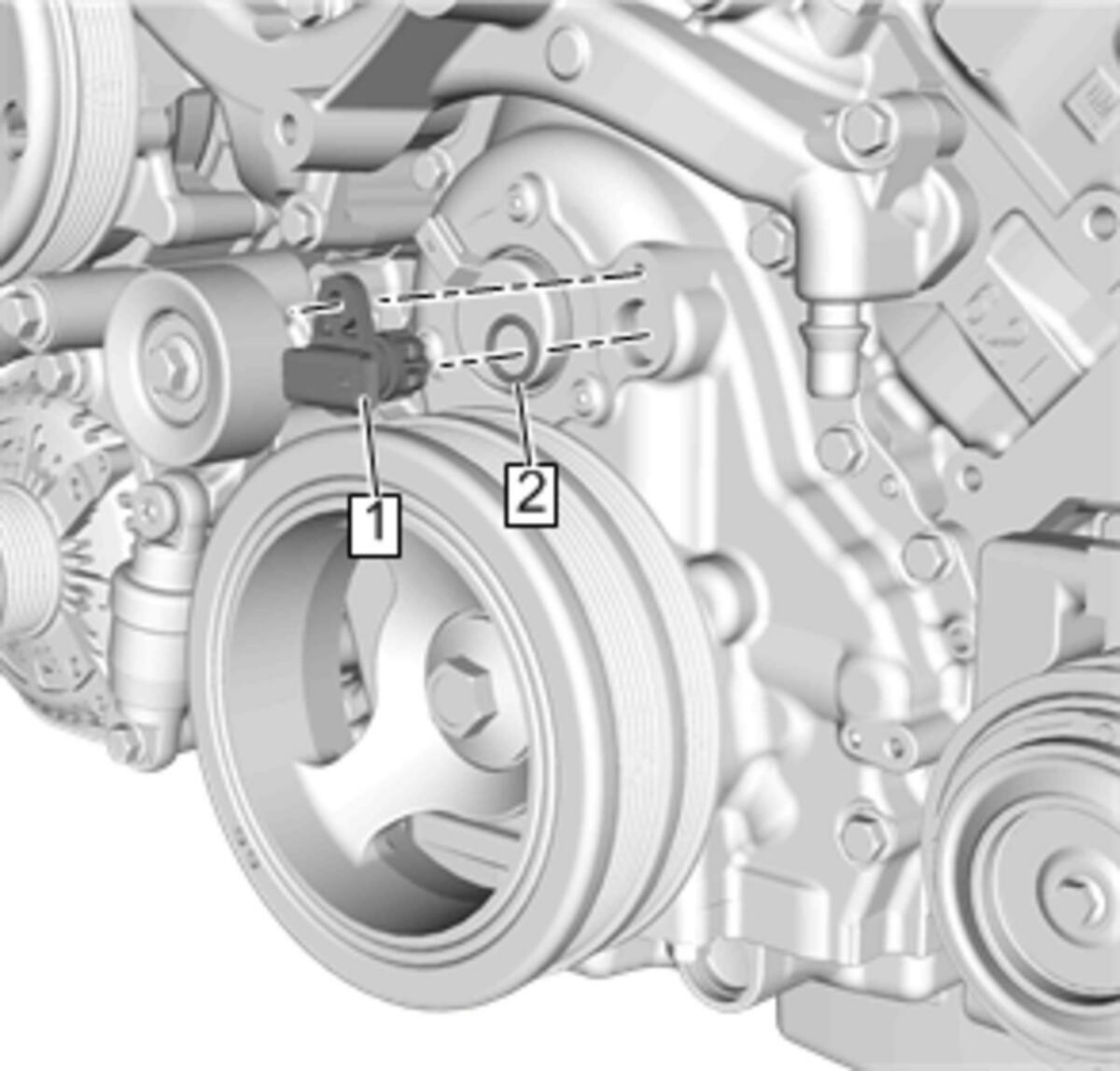

If a new sensor is not being installed, inspect the camshaft sensor seal (2) and replace as needed.

Install the camshaft position sensor (1) into the engine front cover.
Courtesy of GENERAL MOTORS COMPANY

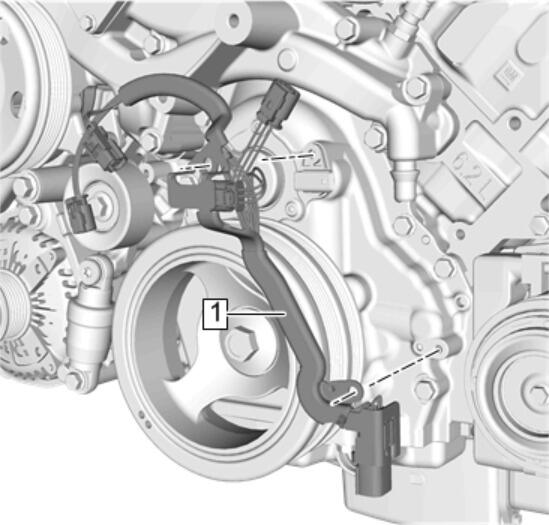

Position the camshaft position sensor bracket (1) in place.
Courtesy of GENERAL MOTORS COMPANY

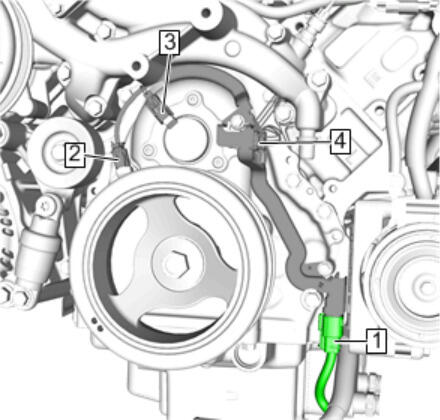

Connect the and the engine wiring harness connector (1), oil pump flow control valve connector (2), camshaft position actuator solenoid connector (3), camshaft position sensor connector (4).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

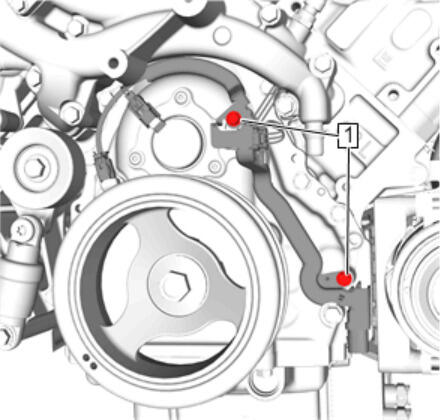

Install the camshaft position sensor bracket fasteners (1) and tighten to 25 N.m (18 lb ft).
Install the drive belt. Drive Belt Replacement - Accessory (LT1)
Air Cleaner Resonator-Air Cleaner Outlet Duct to Engine - Install - Air Cleaner Resonator Replacement (Air Cleaner Outlet Duct to Engine)
