Removal Procedure

WARNING: This page is about a different variant/trim than selected.
GM4377369Courtesy of GENERAL MOTORS COMPANY
  1. Positive Crankcase Ventilation Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
  2. Air Cleaner Resonator Clamp (2) - Remove
  3. Air Cleaner Resonator (3) - Remove
  4. Air Cleaner Outlet Duct Clamp (4) - Remove [2x]
  5. Air Cleaner Outlet Duct (5) - Remove

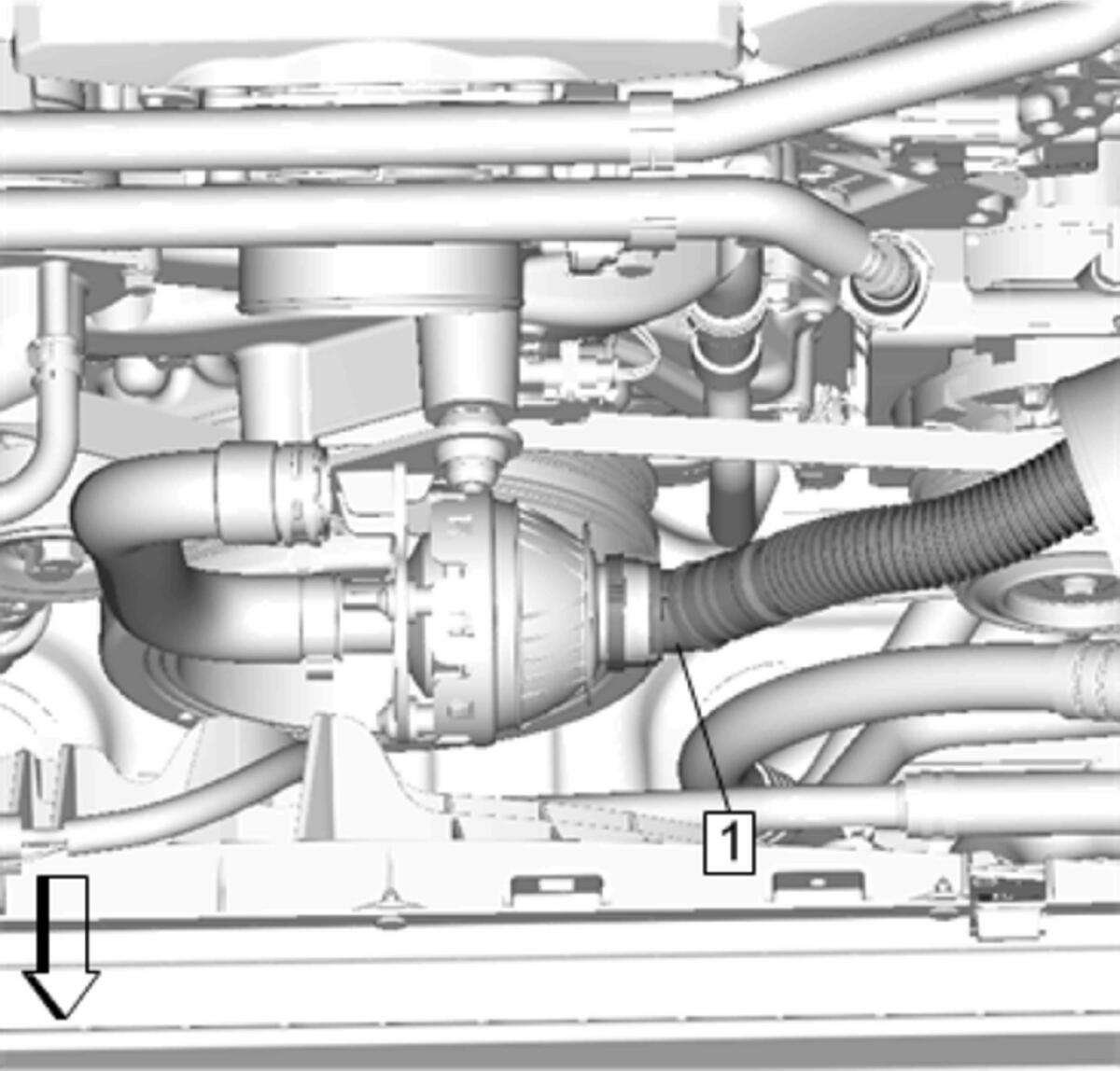

  6. GM4377632Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Resonator (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

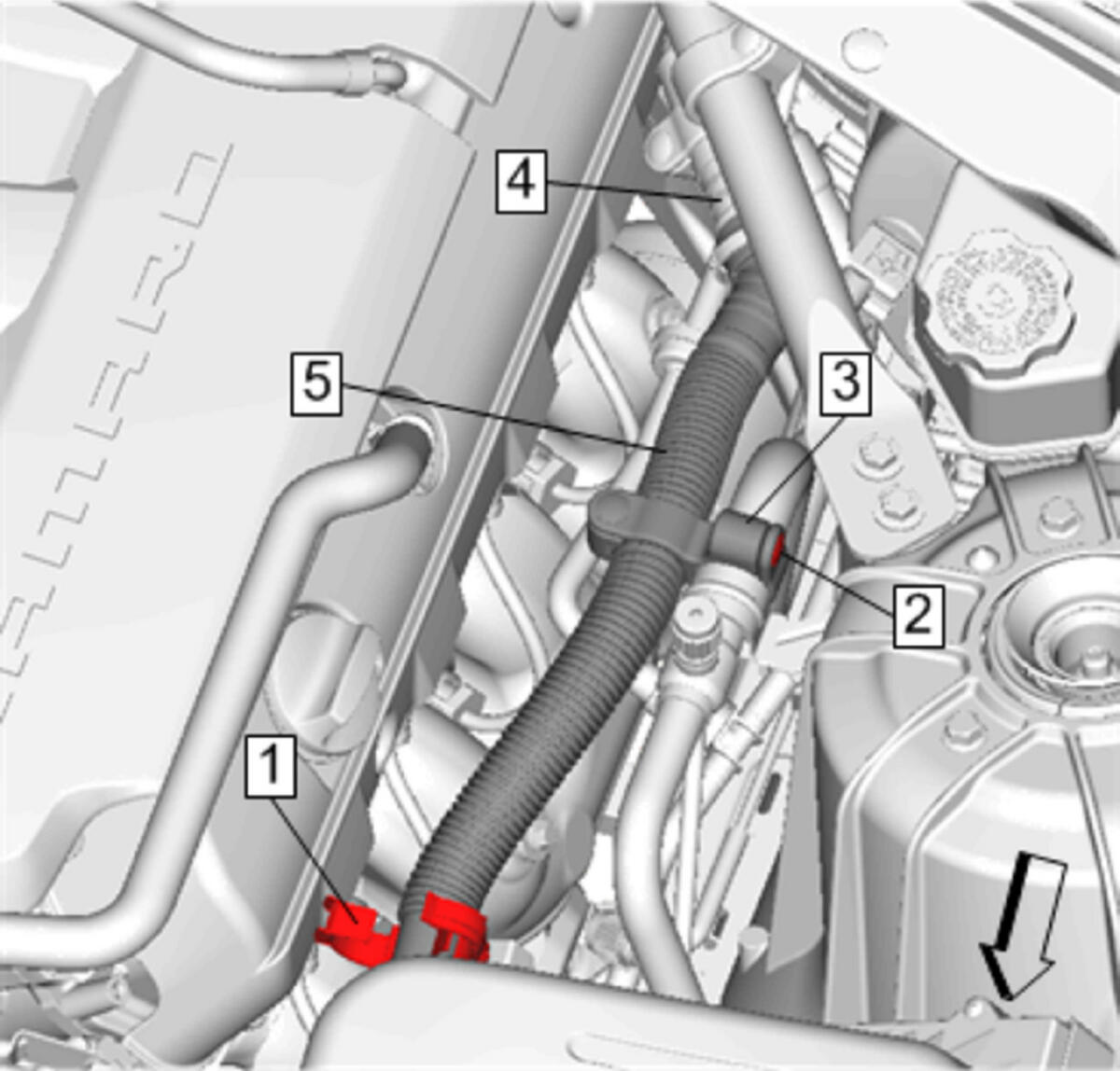

  7. GM4377675Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Resonator Retainer (1) - Disconnect

  8. Air Cleaner Resonator Retainer (2) - Remove
  9. Air Cleaner Resonator Clamp (3) - Remove
  10. Air Cleaner Resonator (4) - Disconnect - Plastic Collar Quick Connect Fitting Service
  11. Air Cleaner Resonator (5) - Remove
