Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

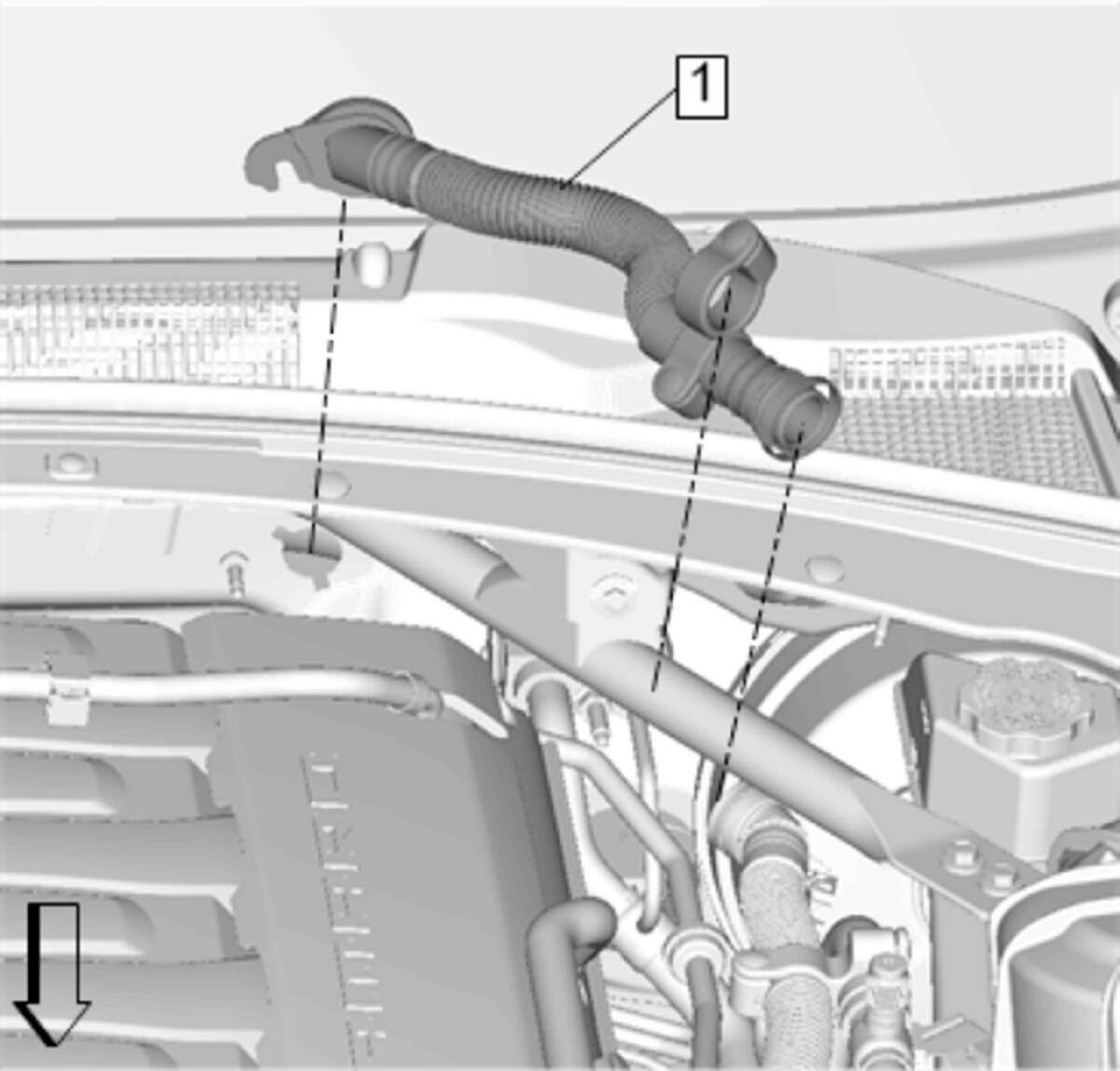

Air Cleaner Resonator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

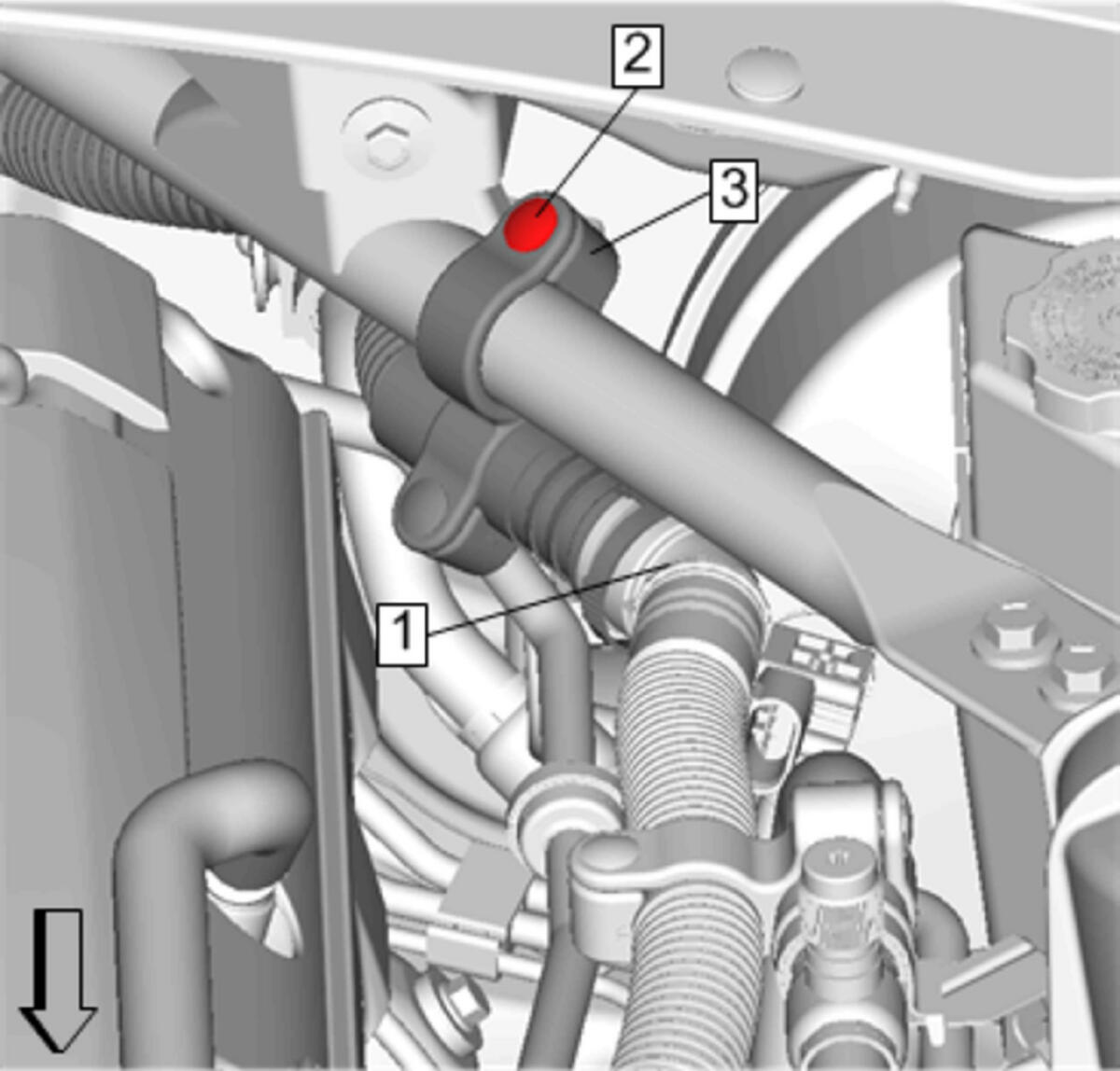

Air Cleaner Resonator Clamp (3) - Install
Air Cleaner Resonator Retainer (2) - Install
Air Cleaner Resonator (1) - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

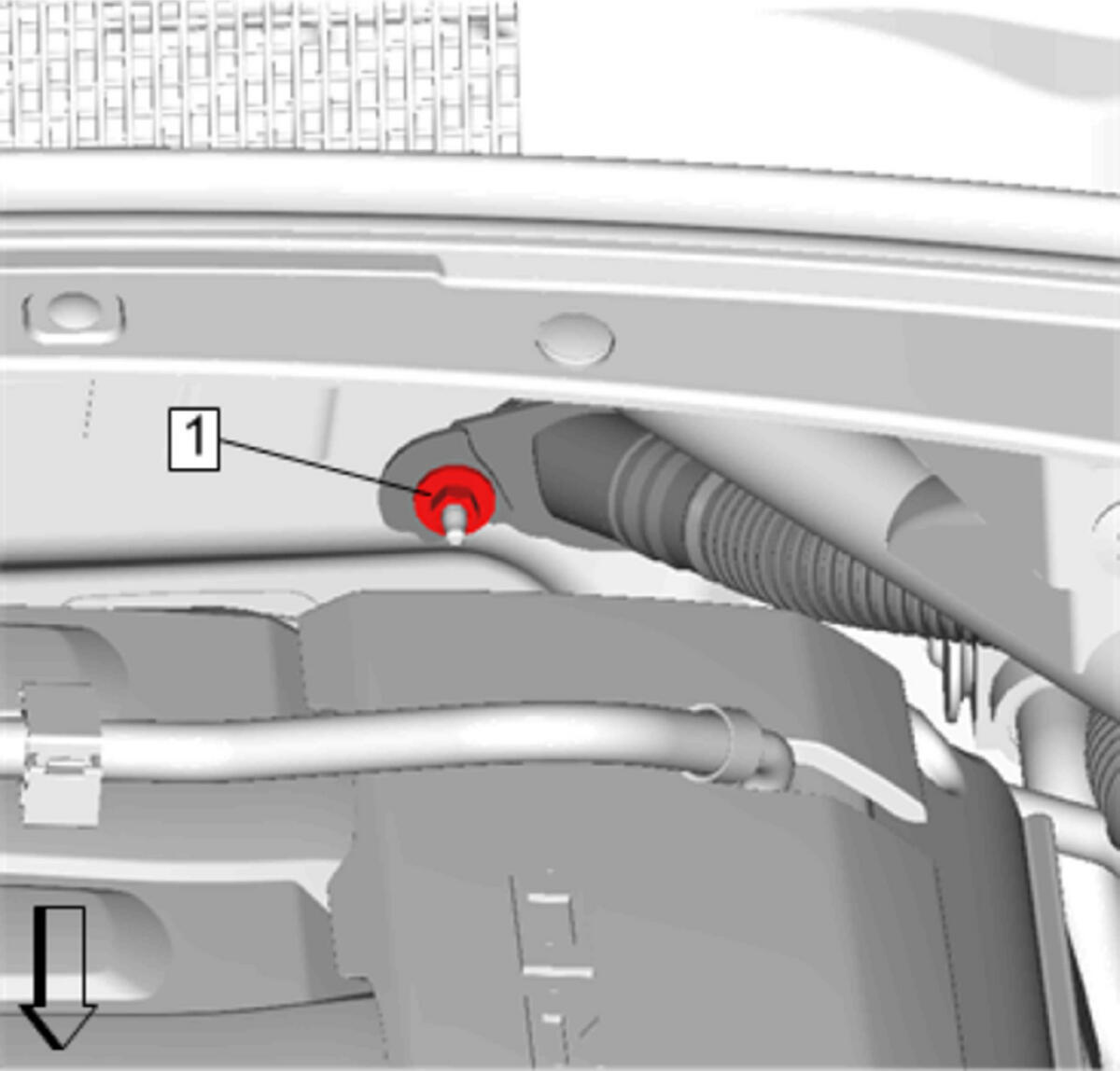

Air Cleaner Resonator Nut (1) - Install 9 N.m (80 lb in)
