Removal Procedure

WARNING: This page is about a different variant/trim than selected.

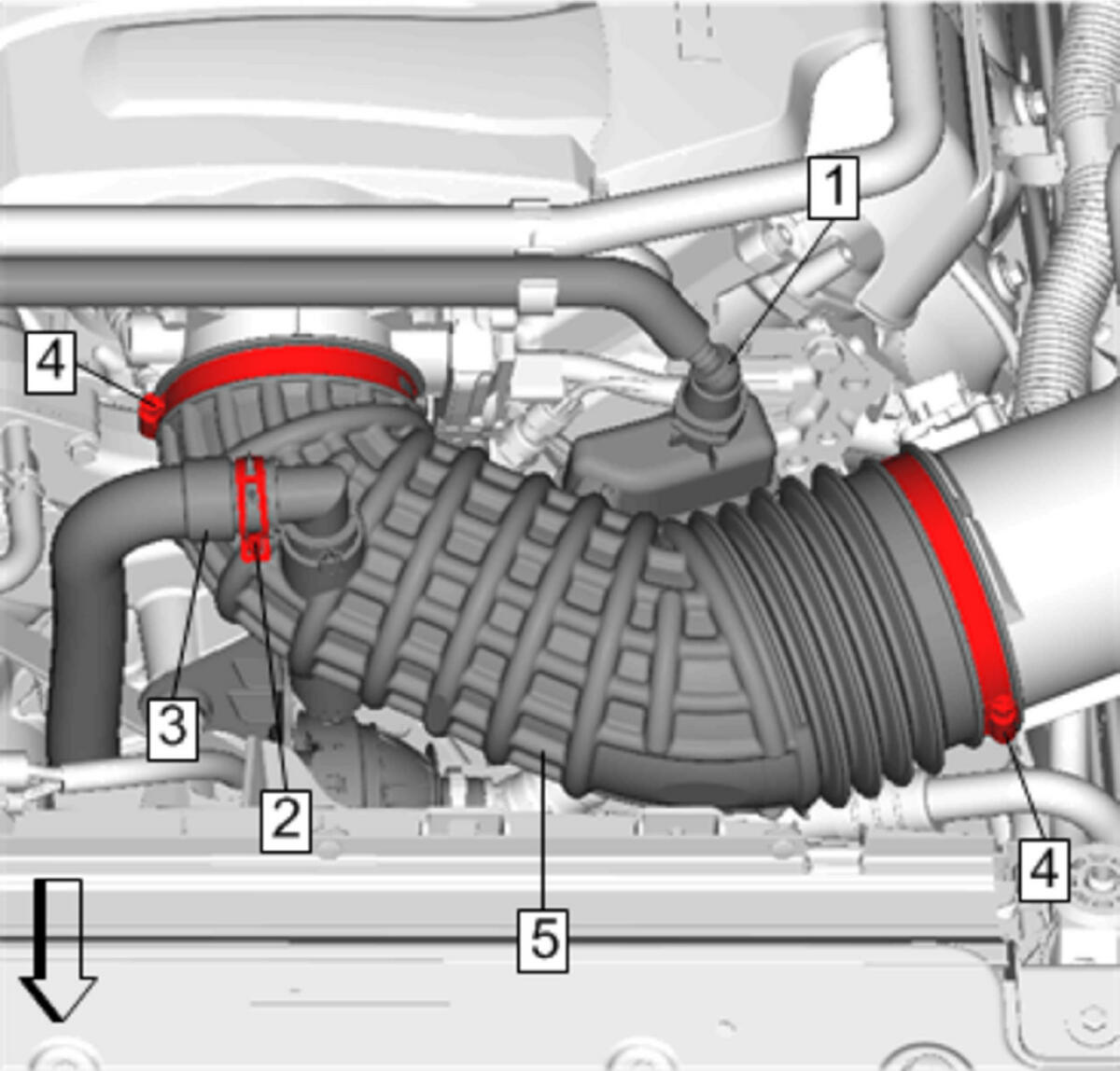

GM4377369Courtesy of GENERAL MOTORS COMPANY
  1. Positive Crankcase Ventilation Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
  2. Air Cleaner Resonator Clamp (2) - Remove
  3. Air Cleaner Resonator (3) - Remove
  4. Air Cleaner Outlet Duct Clamp (4) - Remove [2x]
  5. Air Cleaner Outlet Duct (5) - Remove

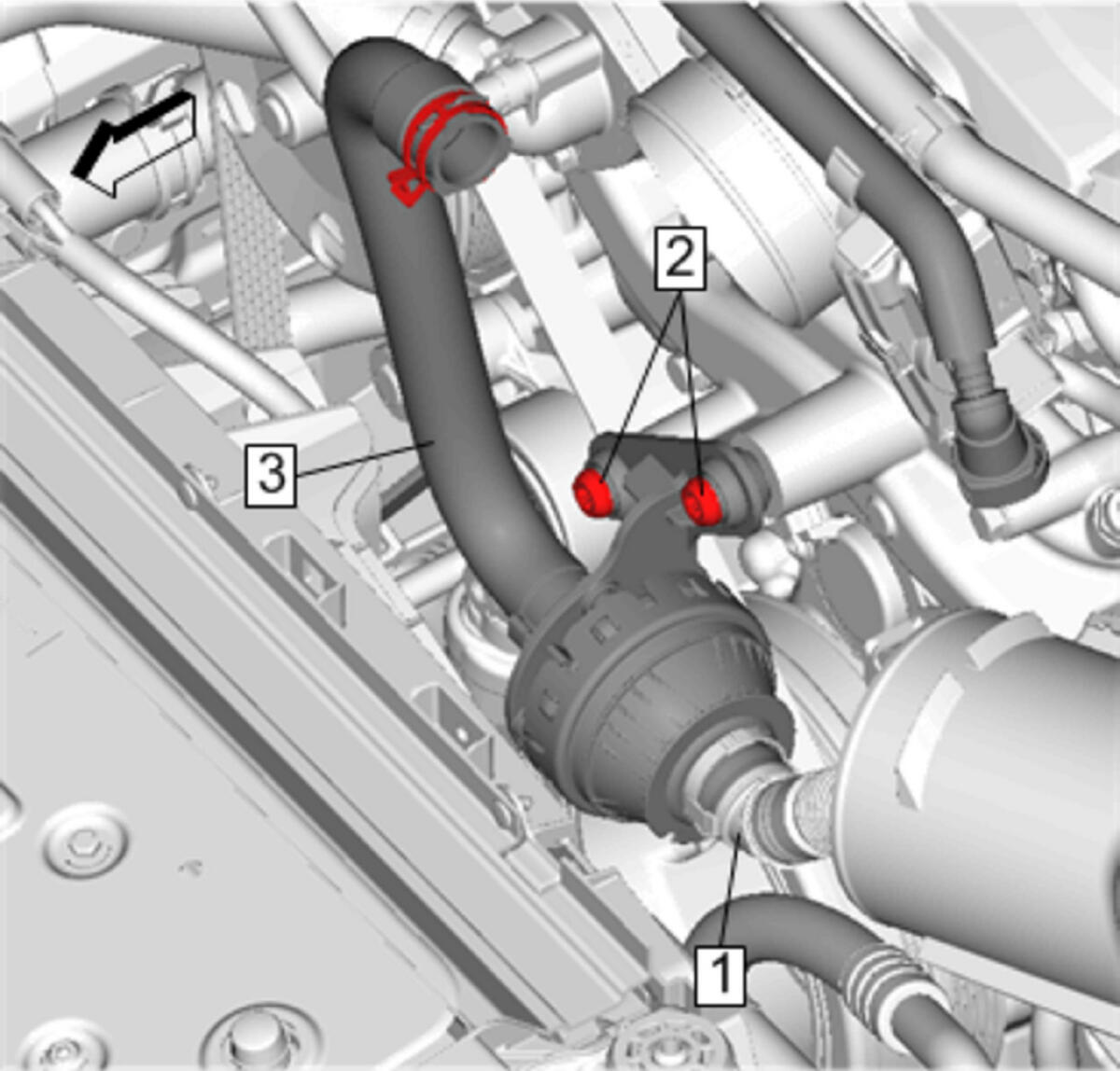

  6. GM4377375Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Resonator (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

  7. Air Cleaner Resonator Bracket Bolt (2) - Remove [2x]
  8. Air Cleaner Resonator (3) - Remove
