Air Cleaner Assembly Replacement (LT4)

WARNING: This page is about a different variant/trim than selected.

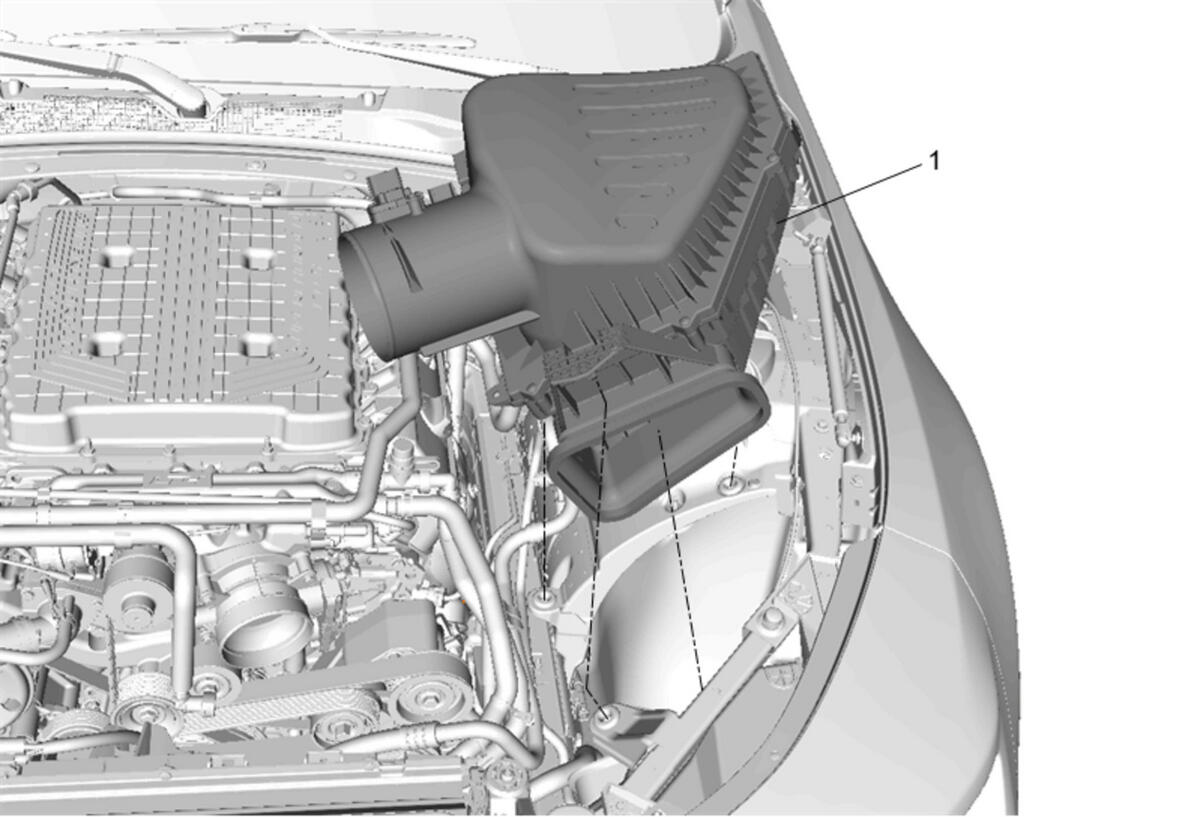

GM4560897Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Outlet Duct Replacement (LT4)
  2. Disconnect the electrical connector.
  3. Remove retainers from air cleaner assembly.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
