Air Cleaner Assembly Replacement (LT1)

WARNING: This page is about a different variant/trim than selected.

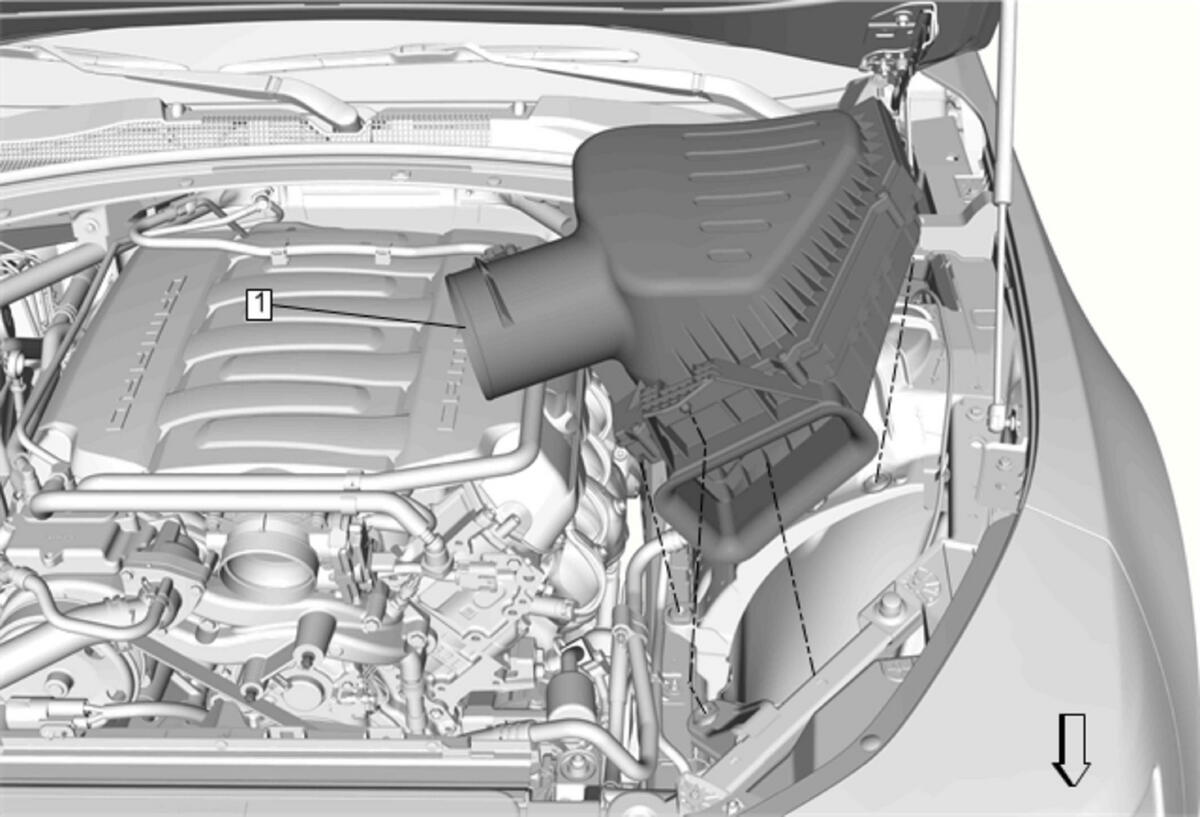

GM4194165Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement (LT1)
  2. Disconnect air cleaner resonator from air cleaner assembly - diagonal brace to air cleaner resonator. Air Cleaner Resonator Replacement (Diagonal Brace to Air Cleaner Resonator)
  3. Disconnect the electrical connector.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
