Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transmission - Remove - Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Rear Wheel Drive)

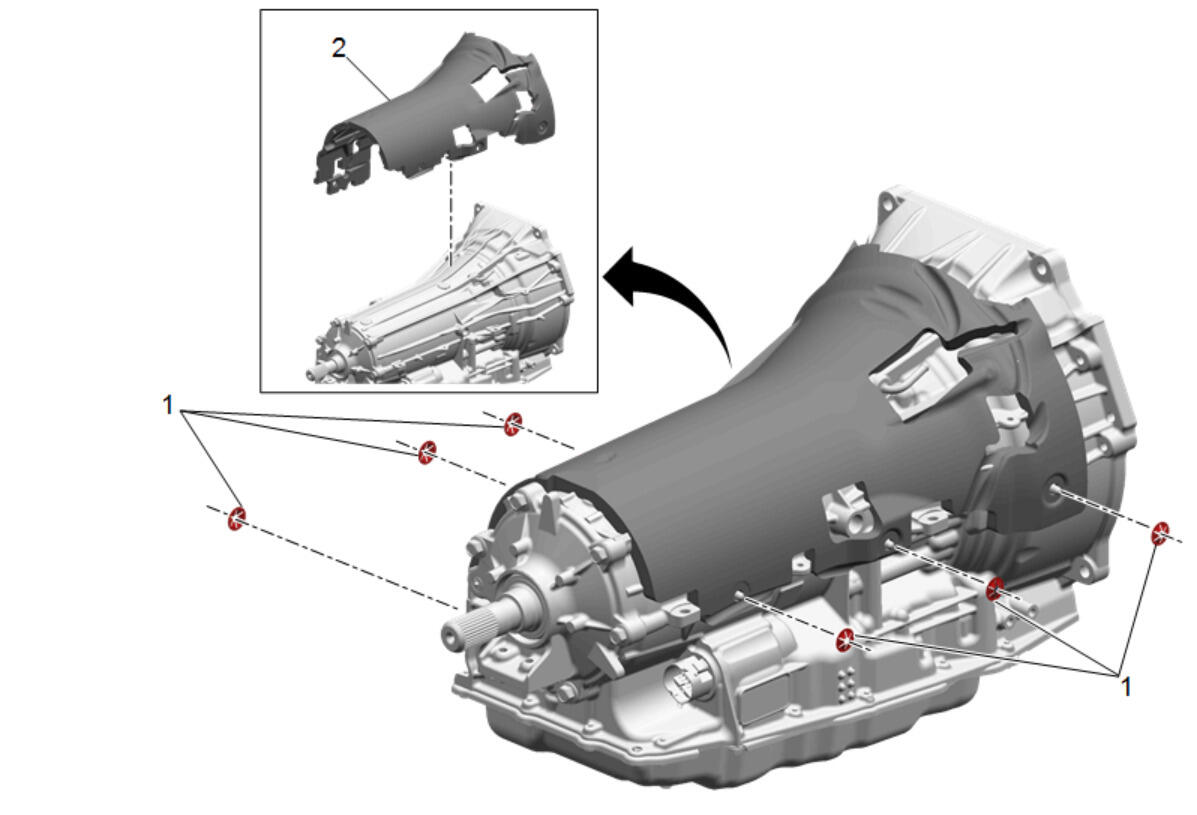

  2. GM5404856Courtesy of GENERAL MOTORS COMPANY

    Transmission Nut (1) - Remove [6x]

  3. Transmission Housing Sound Insulator (2) - Remove
