Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

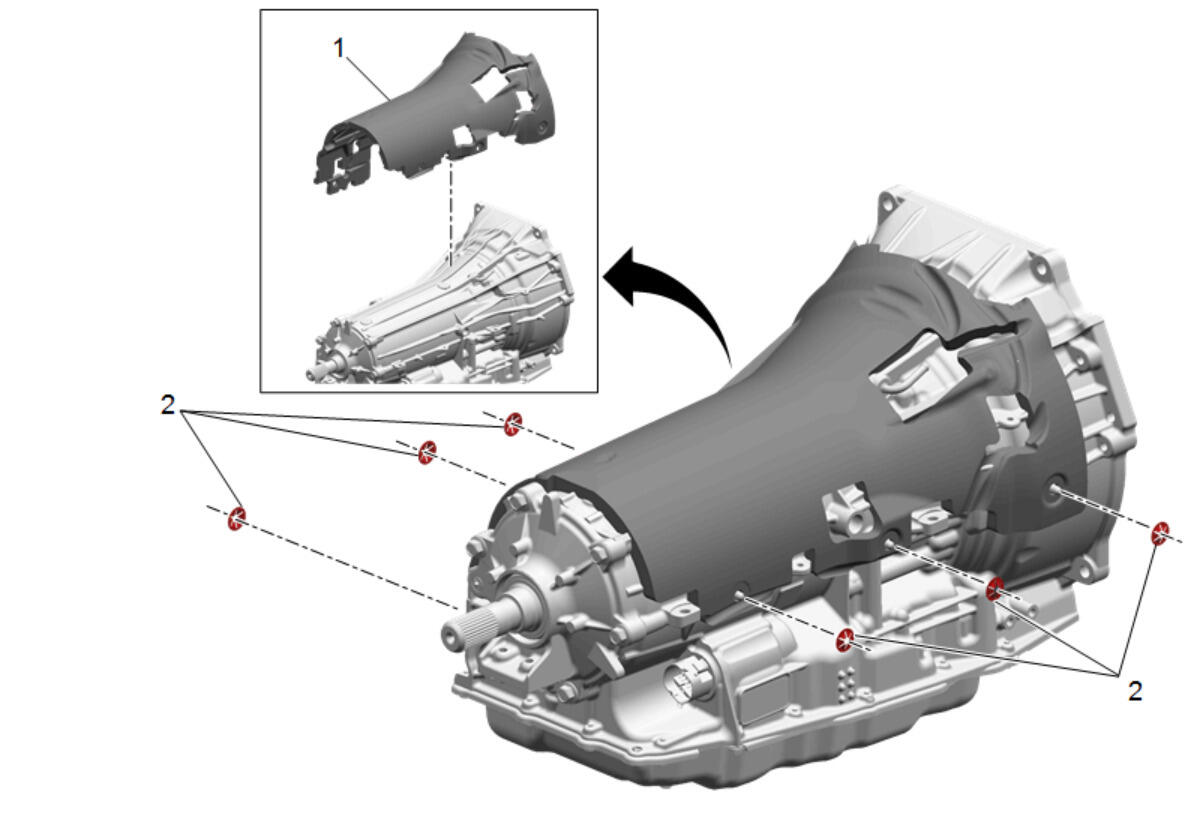

Transmission Housing Sound Insulator (1) - Install
- Transmission Nut (2) - Install [6x]
- WARNING:
The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage.
If removed, install the DT-21366 Converter Holding Strap (1) onto the transmission bell housing to retain the torque converter.
- Transmission - Install - Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Rear Wheel Drive)
