Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Rotate the transmission so that the converter housing is up and secure with locking pin.

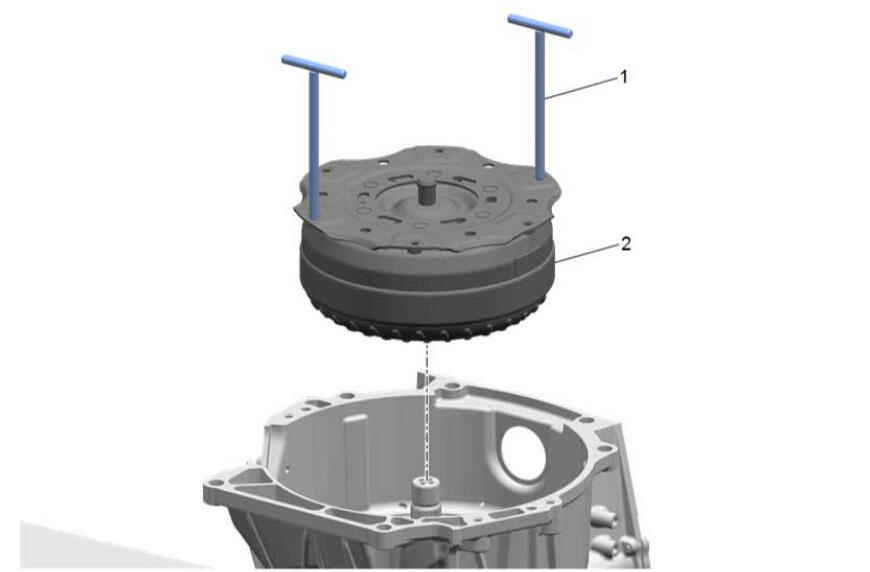

Install the DT-46409 Torque Converter Lifting Handles (1) to the torque converter (2).
- Torque Converter (2) - Install
- WARNING:
The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage.
NOTE:If the holding strap does not fit, ensure that the converter is fully installed.

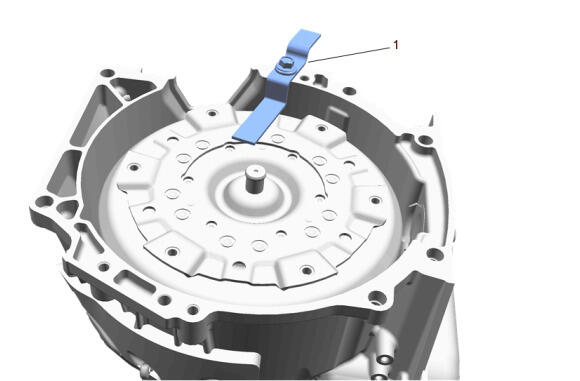

Install the DT-21366 Converter Holding Strap (1).
Rotate the transmission so the pan is facing down. Secure with DT-03289-20 Holding Fixture Base Assembly (1) locking pin.

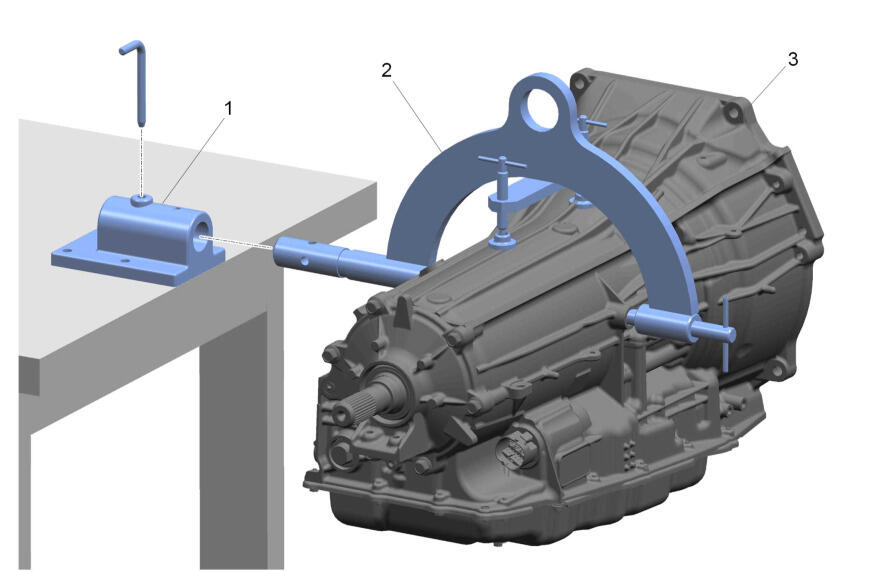

- Support the transmission with a overhead hoist attached to DT-48989 Holding Fixture (2), then remove the DT-03289-20 Holding Fixture Base Assembly (1) locking pin.
- Remove the DT-48989 Holding Fixture (2) and the automatic transmission case (3) from the DT-03289-20 Holding Fixture Base Assembly (1)..
- Transmission - Install - Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Rear Wheel Drive)
