Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Reposition the seat as necessary to access the retaining clips.
Using a flat-bladed plastic trim tool, release the retaining clips.

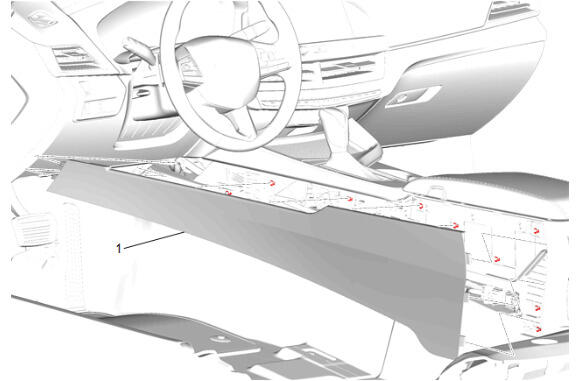

Front Floor Console Extension Panel - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.

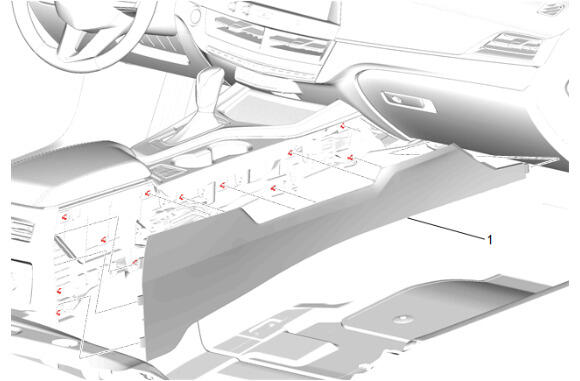

Front Floor Console Extension Panel - Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

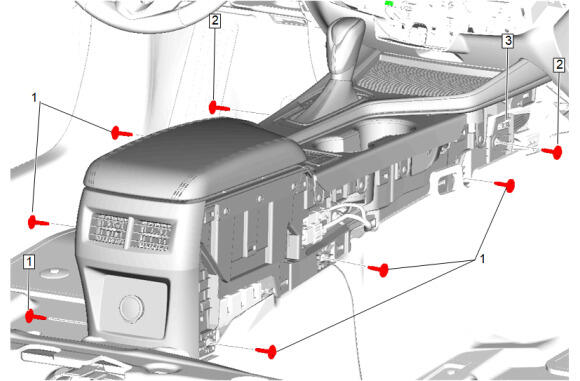

Front Floor Console Bolt (1) - Remove [6x]
Front Floor Console Bracket Bolt (2) - Remove [2x]
Release the tabs (3) on both sides of the front floor console.
Courtesy of GENERAL MOTORS COMPANY

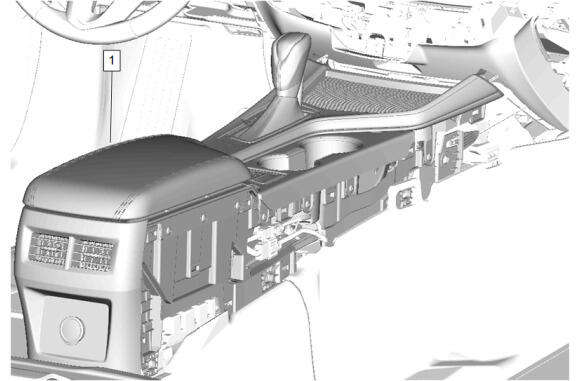

Slide the front floor console (1) enough to clear the instrument panel lower center trim panel.
Courtesy of GENERAL MOTORS COMPANY

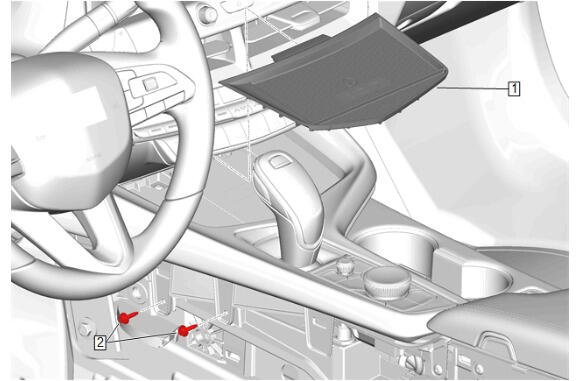

Front Floor Console Variable 1 Liner (1) - Remove
Front Floor Console Trim Plate Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

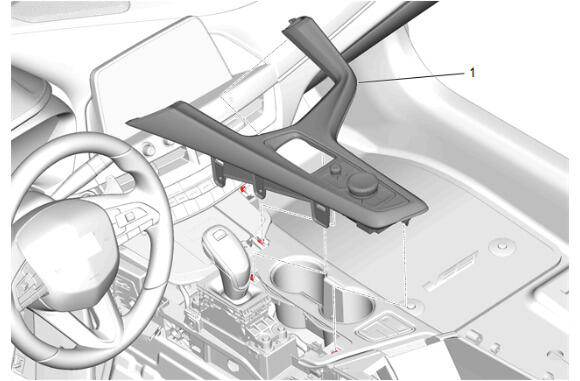

Front Floor Console Trim Plate (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

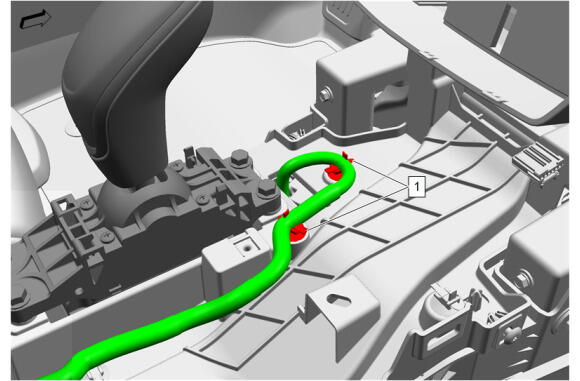

Wiring Harness Retainer (1) - Remove [2x]
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

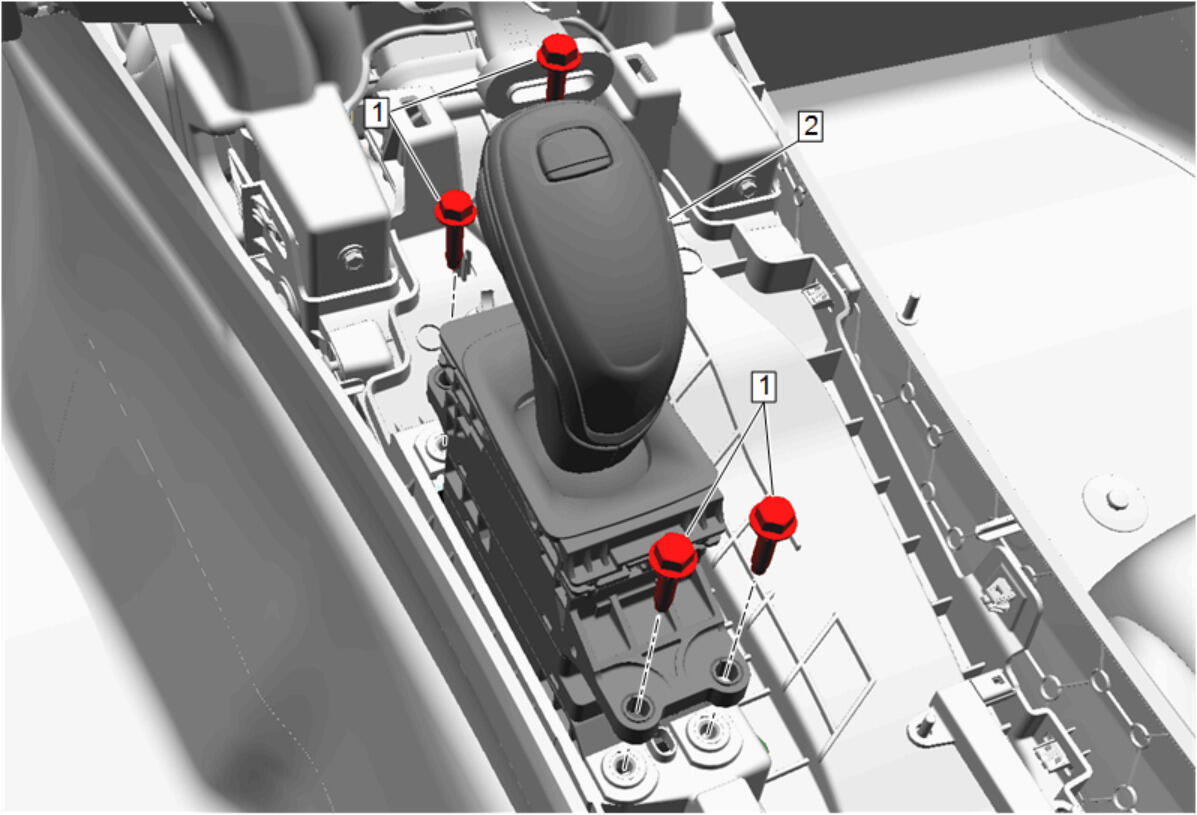

Automatic Transmission Control Bolt (1) - Remove [4x]
Automatic Transmission Electronic Control (2) - Remove
