Automatic Transmission Case Extension Replacement (All Wheel Drive): Notes

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

Transfer Case - Remove - Transfer Case Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

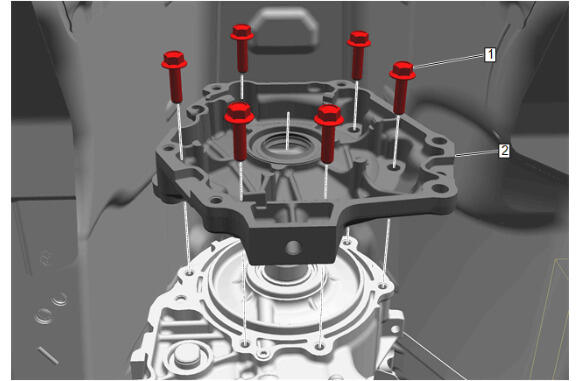

Automatic Transmission Case Extension Bolt (1) - Remove [6x]
Automatic Transmission Case Extension (2) - Remove
