Front Floor Console Extension Panel Replacement - Left Side (Blackwing)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

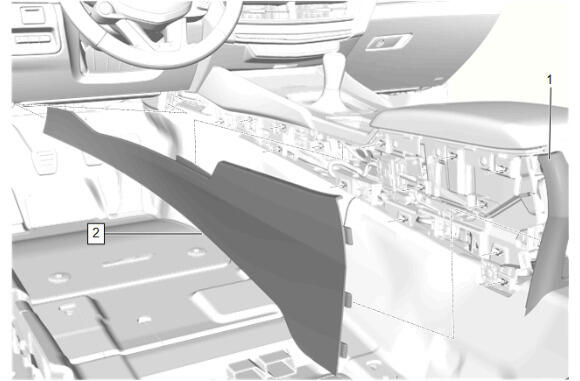

Callout	Component Name
1	Front Floor Console Rear Trim Panel Procedure Using a flat-bladed plastic trim tool, release the retaining clips. Loosen the front floor console rear trim panel enough to clear the tabs of the front floor console extension panel.
2	Front Floor Console Extension Panel - Left Side Procedure Reposition the seat as necessary to access the retaining clips. Using a flat-bladed plastic trim tool, release the retaining clips.

Callout

Component Name

Front Floor Console Rear Trim Panel

Procedure

Using a flat-bladed plastic trim tool, release the retaining clips.
Loosen the front floor console rear trim panel enough to clear the tabs of the front floor console extension panel.

Front Floor Console Extension Panel - Left Side

Procedure

Reposition the seat as necessary to access the retaining clips.
Using a flat-bladed plastic trim tool, release the retaining clips.
