Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Install the manual shift shaft (1) aligning the position switch assembly onto the shaft.
- Install the NEW manual shift shaft pin (2).
- Electronic Transmission Range Selector Manual Park Release Cable Bracket - Install - Electronic Transmission Range Selector Manual Park Release Cable Bracket Replacement
- Electronic Transmission Range Selector Manual Park Release Cable - Install - Electronic Transmission Range Selector Manual Park Release Cable Replacement
- Use a suitable jack to raise the transmission.
Transmission Mount Bracket Bolt (1) - Install and tighten [4x] - Transmission Mount Replacement (RWD)
- Install the control valve body. Control Valve Body Replacement
- Install the left side warm up three - way catalytic converter. Warm Up Three-Way Catalytic Converter Replacement - Left Side (LGY)

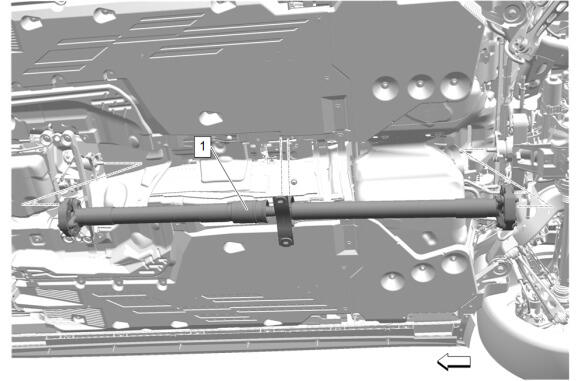

Propeller Shaft (1) - Install - Propeller Shaft Replacement (without LT4)
