Special Tools

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

DT-45000  Seal Remover

Equivalent regional tools: Special Tools

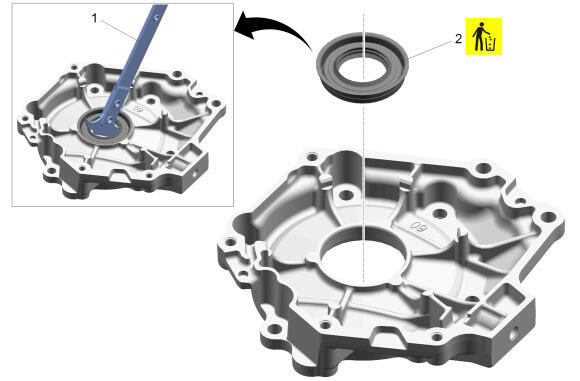

  1. GM5404796Courtesy of GENERAL MOTORS COMPANY

    Use DT-45000  Seal Remover (1) to remove the Propeller Shaft Transmission Flange Fluid Seal (2).

  2. Propeller Shaft Transmission Flange Fluid Seal (2) - Remove and DISCARD
