Special Tools

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

J-38869  Seal Installer

Equivalent regional tools: Special Tools

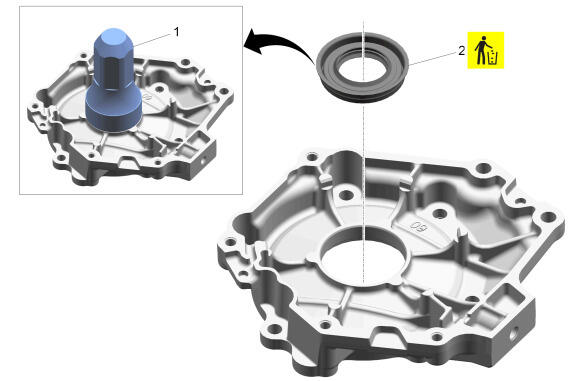

  1. GM5405135Courtesy of GENERAL MOTORS COMPANY

    Use the J-38869  Seal Installer (1) to install the Propeller Shaft Transmission Flange Fluid Seal (2).

  2. Propeller Shaft Transmission Flange Fluid Seal (2) - Install NEW
