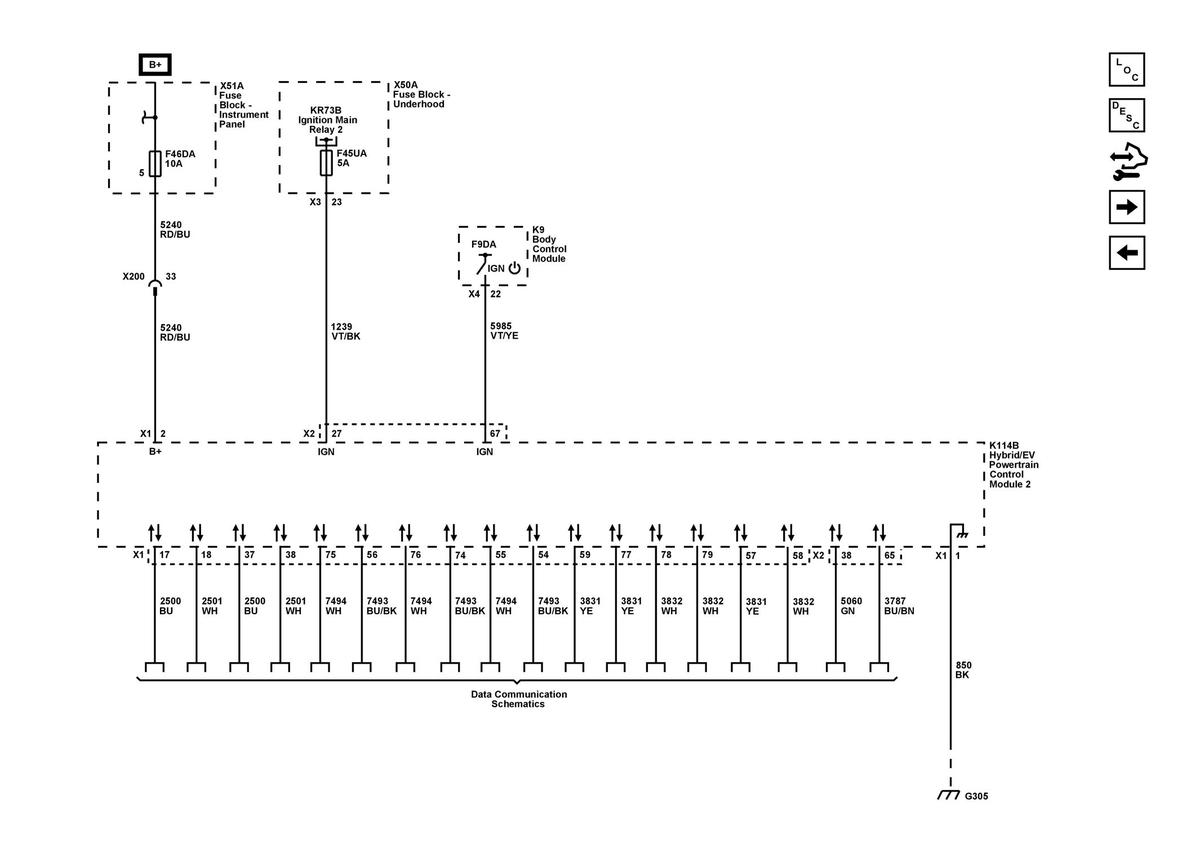

Hybrid/EV Module Powertrain Control Module 2 Power, Ground and Data Communication

GM5666483Courtesy of GENERAL MOTORS COMPANY
