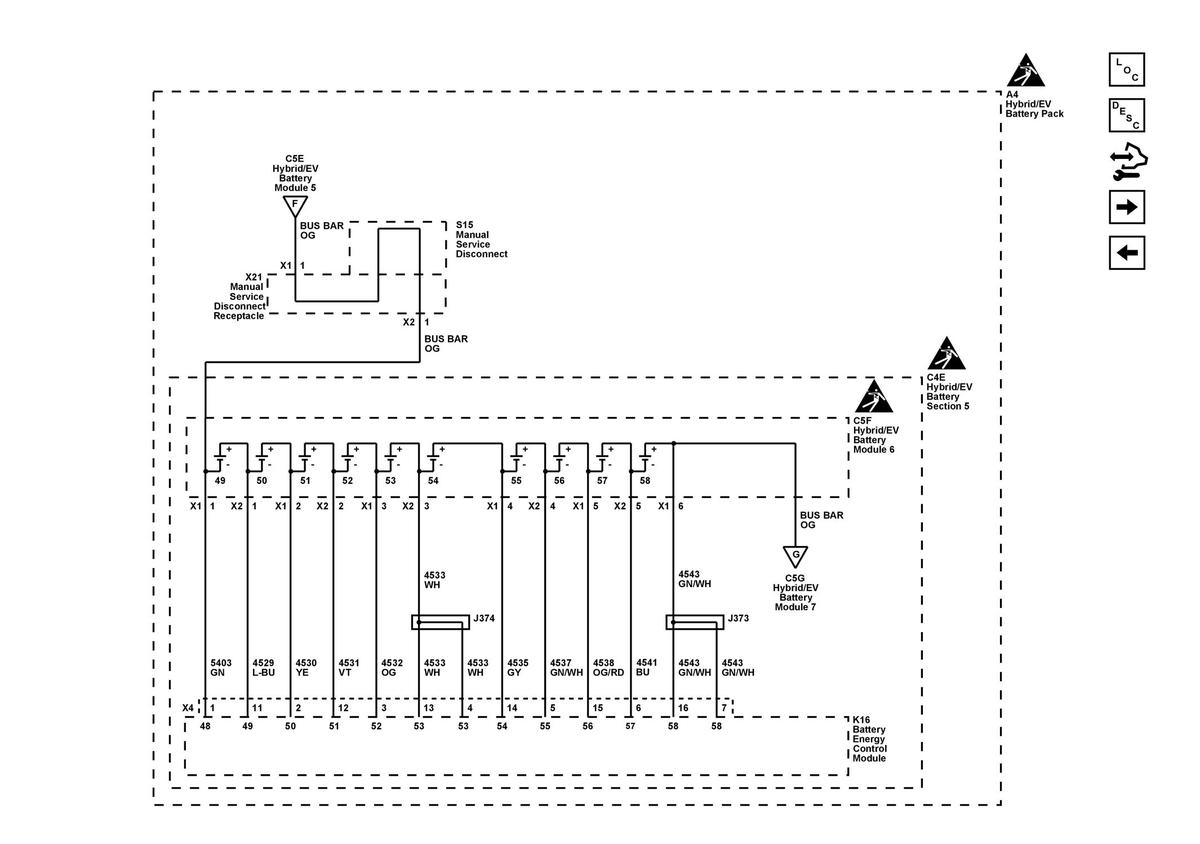

Hybrid/EV Battery Module 6 and Manual Service Disconnect

GM5666491

Courtesy of GENERAL MOTORS COMPANY
