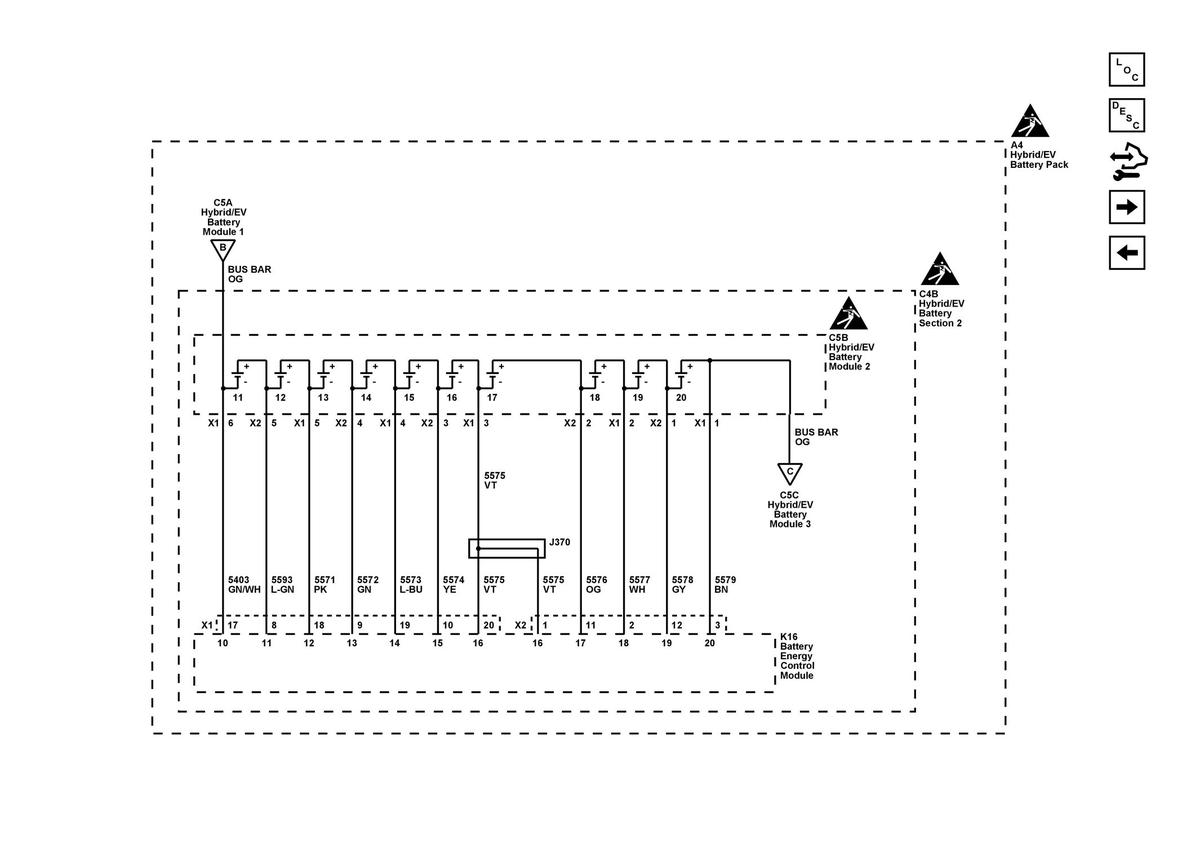

Home >> Chevrolet >> 2022 >> Bolt EV >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Hybrid/EV Energy (Storage) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Hybrid/EV Energy Storage Wiring Schematics >> Hybrid/EV Battery Module 2
