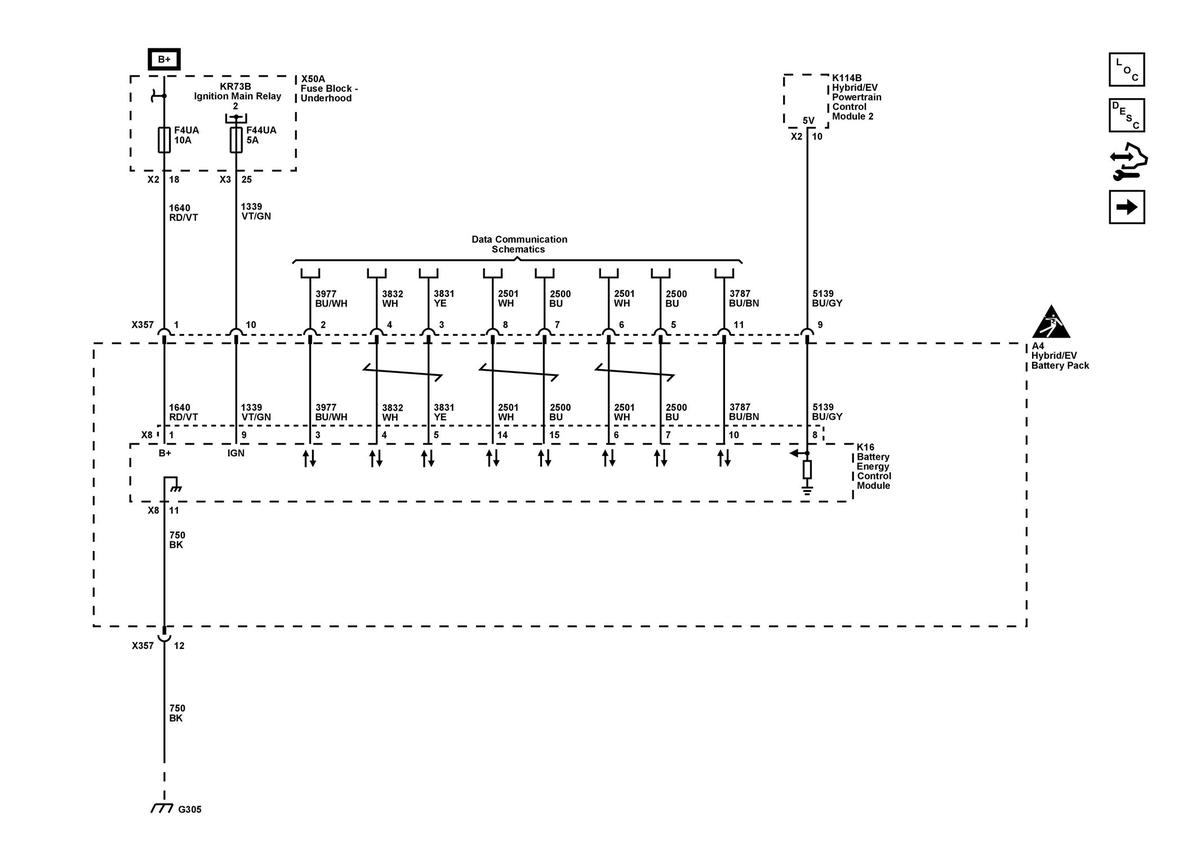

Battery Energy and Interface Control Module Power, Ground, and Data Communication

GM5666482

Courtesy of GENERAL MOTORS COMPANY
