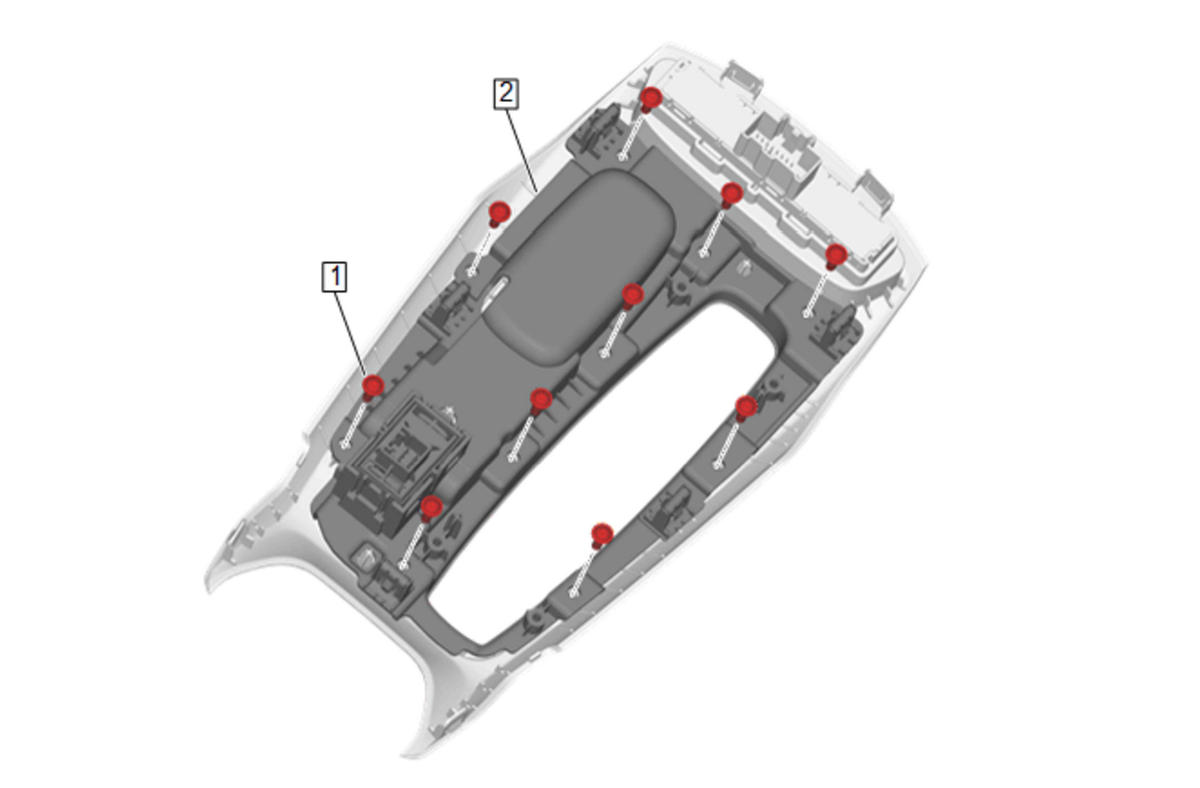

Front Floor Console Transmission Shift Opening Bezel Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Electronic Transmission Shift Control Pushbutton Replacement
1	Front Floor Console Trim Plate Bolt [10x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Transmission Shift Opening Bezel
