Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Stowage Tray (3) - Install
Connect the instrument panel compartment air duct (2).
Connect the electrical connector (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

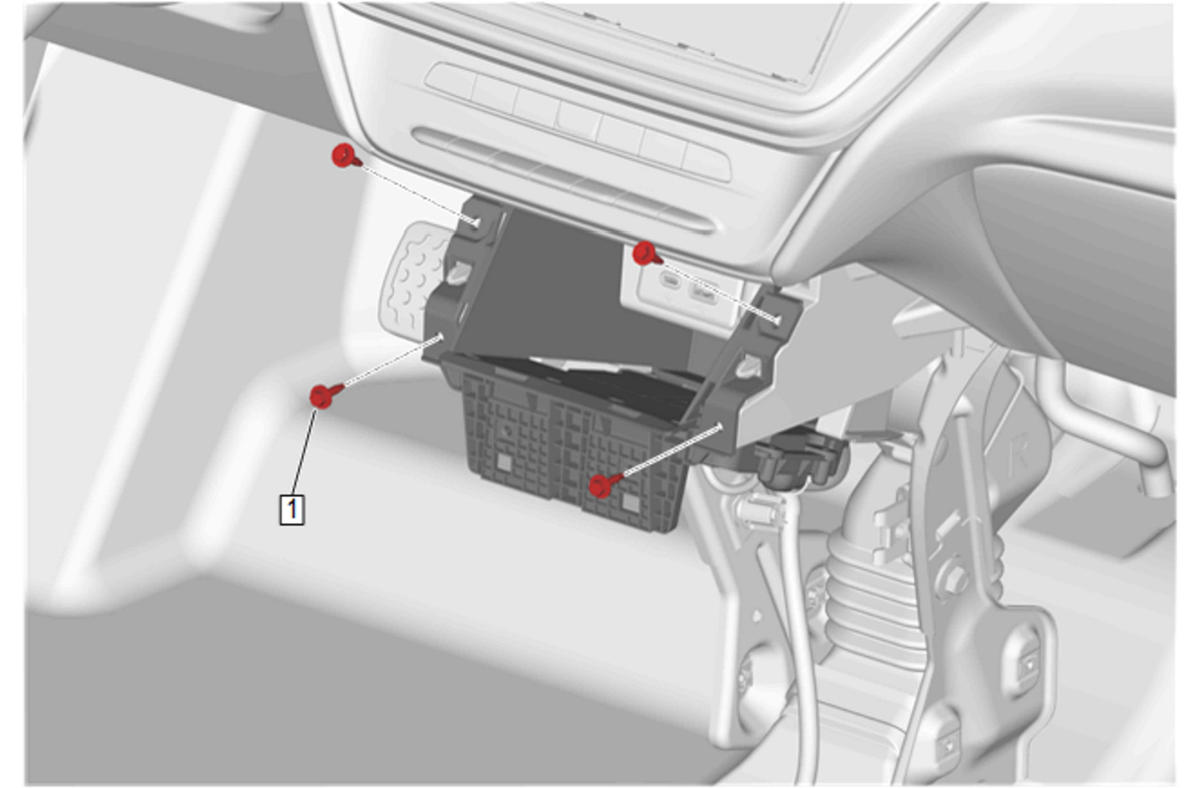

Instrument Panel Stowage Tray Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install - Front Floor Console Replacement
