Removal Procedure

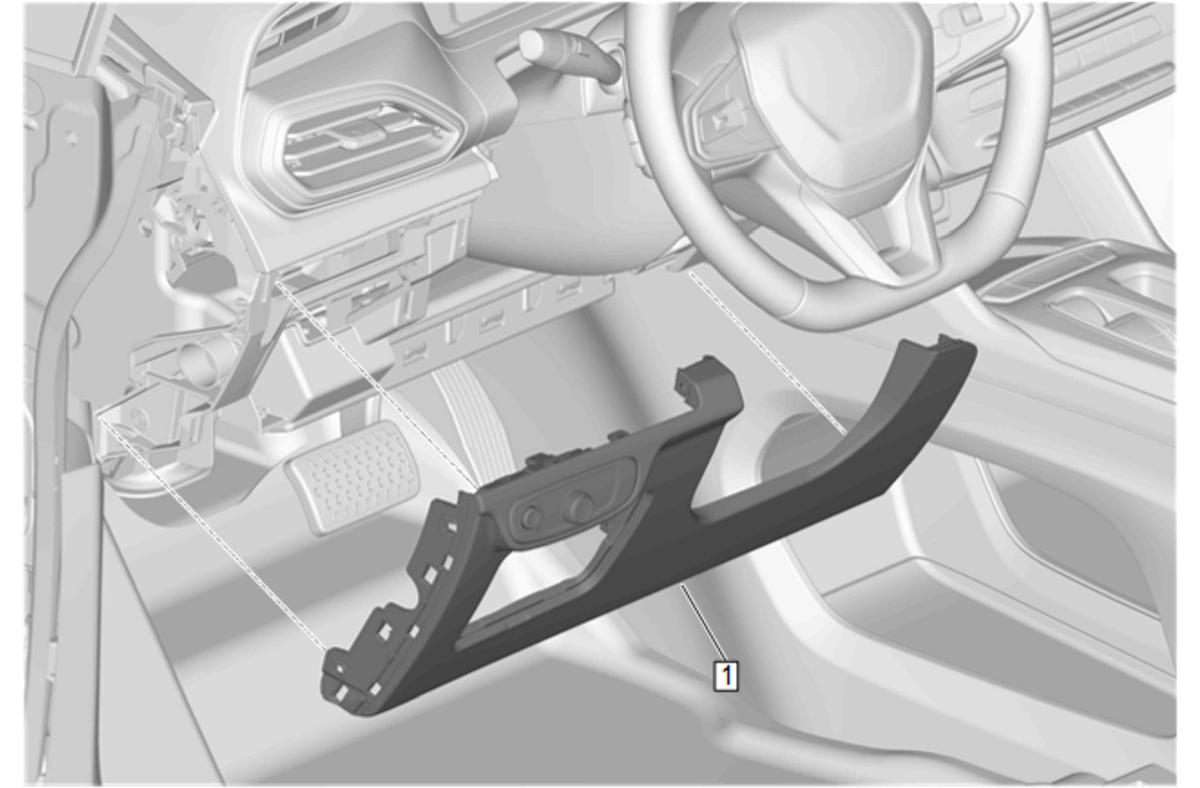

  1. GM5670550Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Remove - Instrument Panel Knee Bolster Replacement

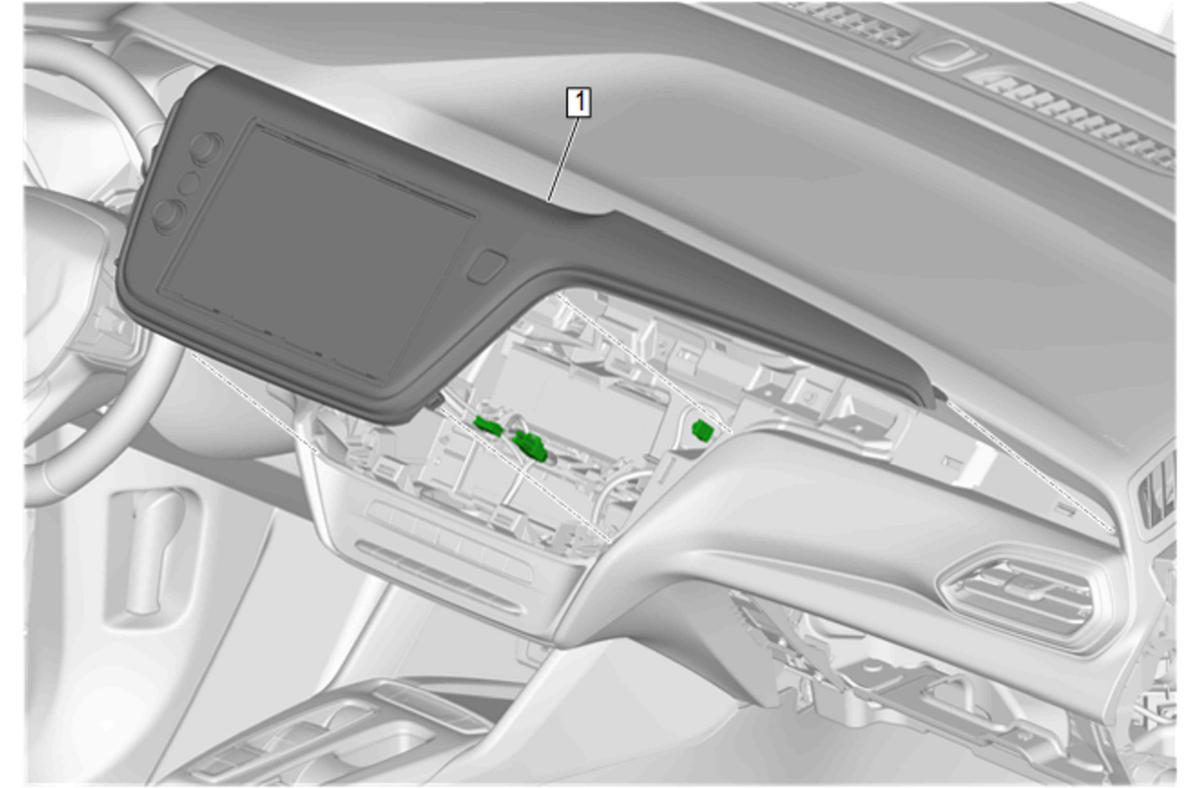

  2. GM5677636Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Center Trim Plate (1) - Remove - Instrument Panel Accessory Center Trim Plate Replacement

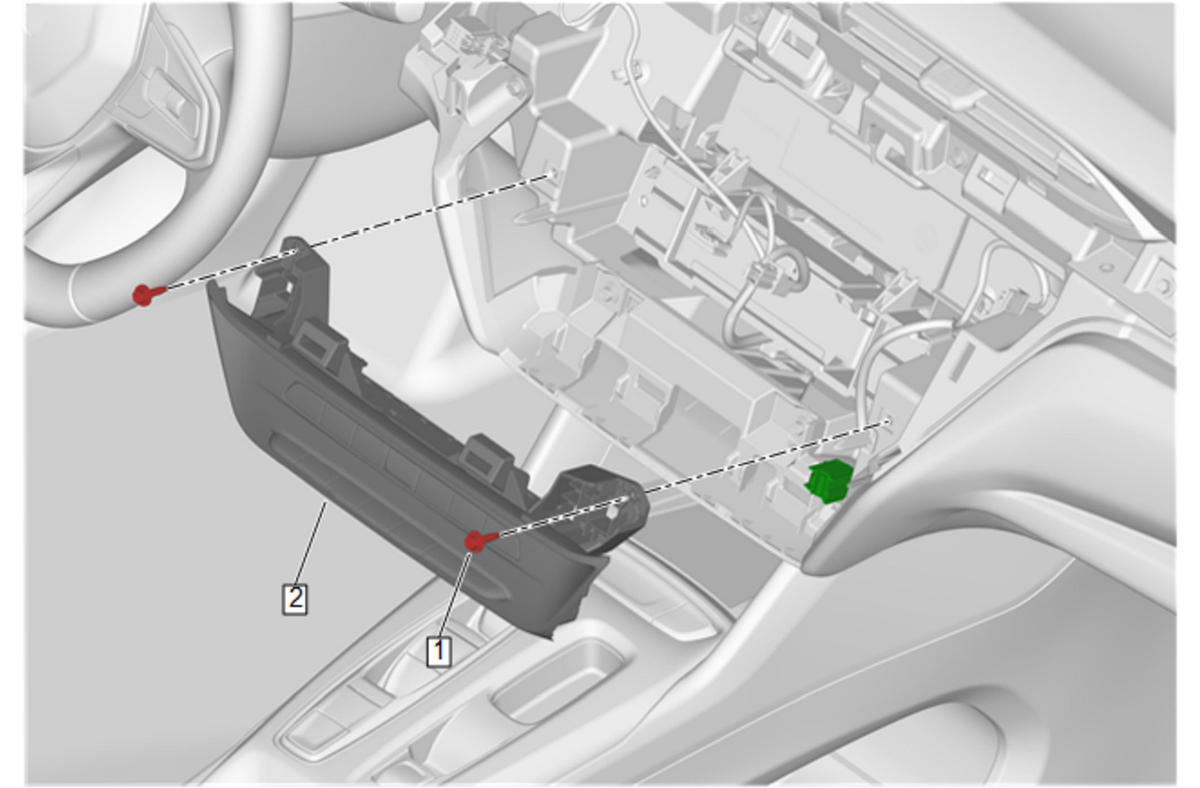

  3. GM5677664Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (2) - Remove - Heater and Air Conditioning User Interface Control Replacement

  4. GM5681798Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Remove - Front Floor Console Replacement

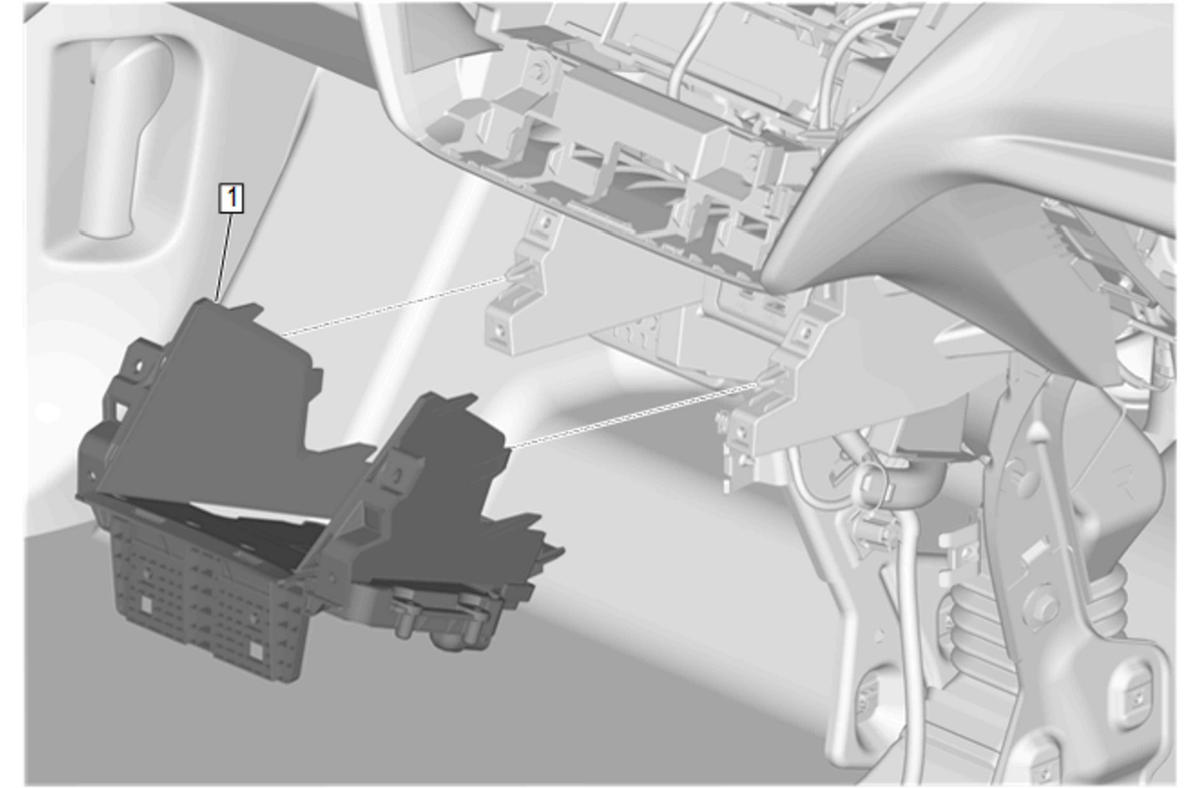

  5. GM5679837Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Stowage Tray (1) - Remove - Instrument Panel Stowage Tray Replacement

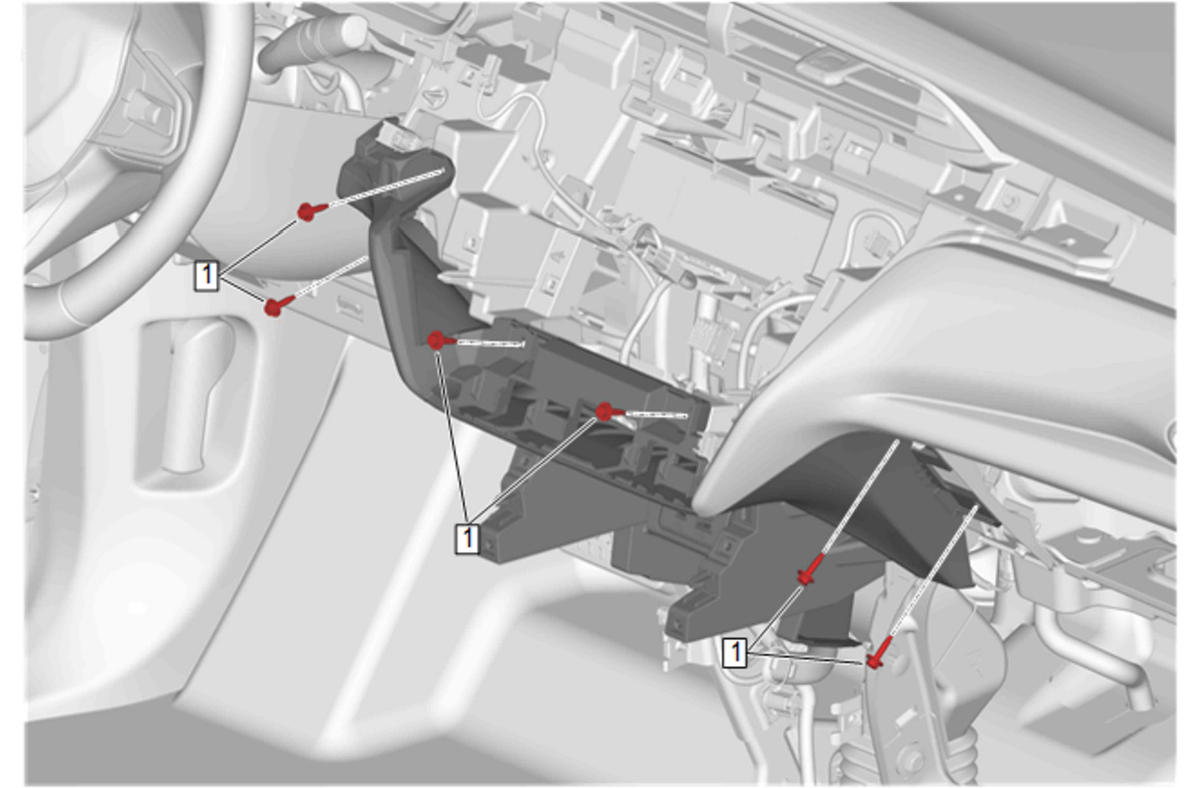

  6. GM5679830Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Bolt (1) - Remove [6x]

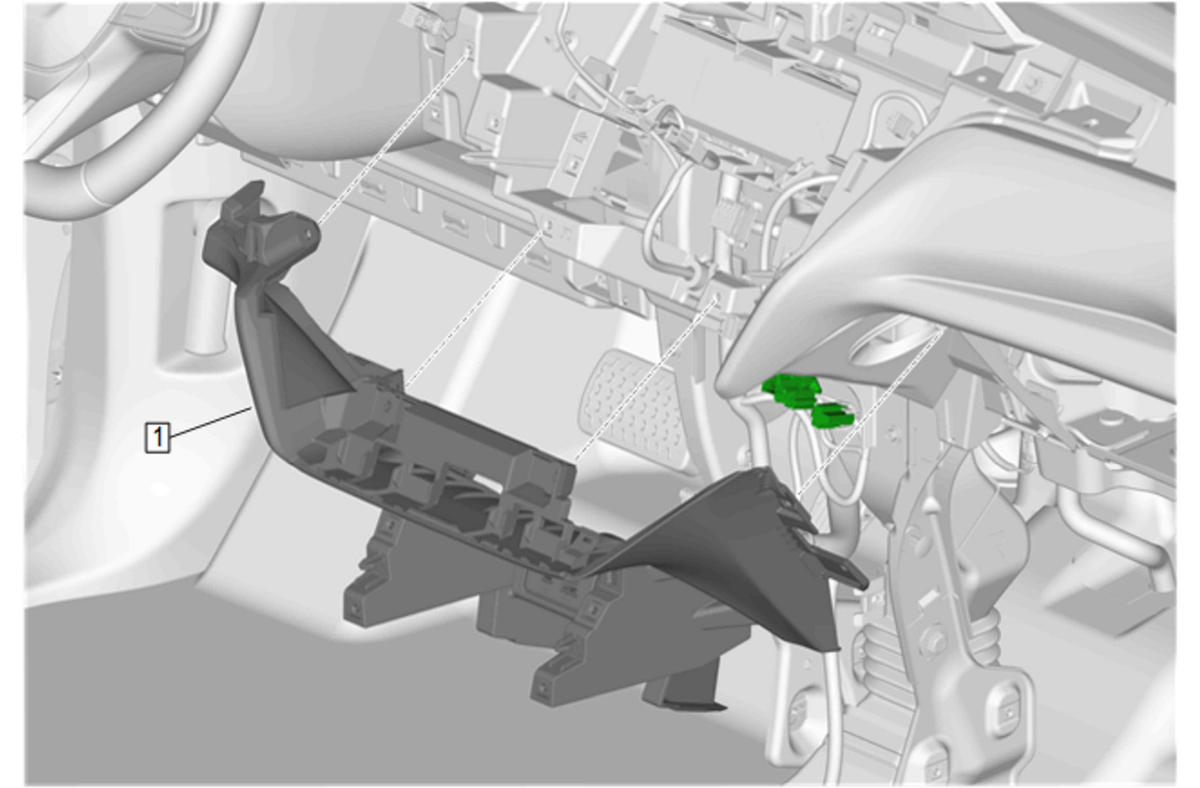

  7. GM5679831Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (1) - Remove

  8. Disconnect the electrical connectors.
