Installation Procedure

  1. GM5679814Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install

  2. GM5679812Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

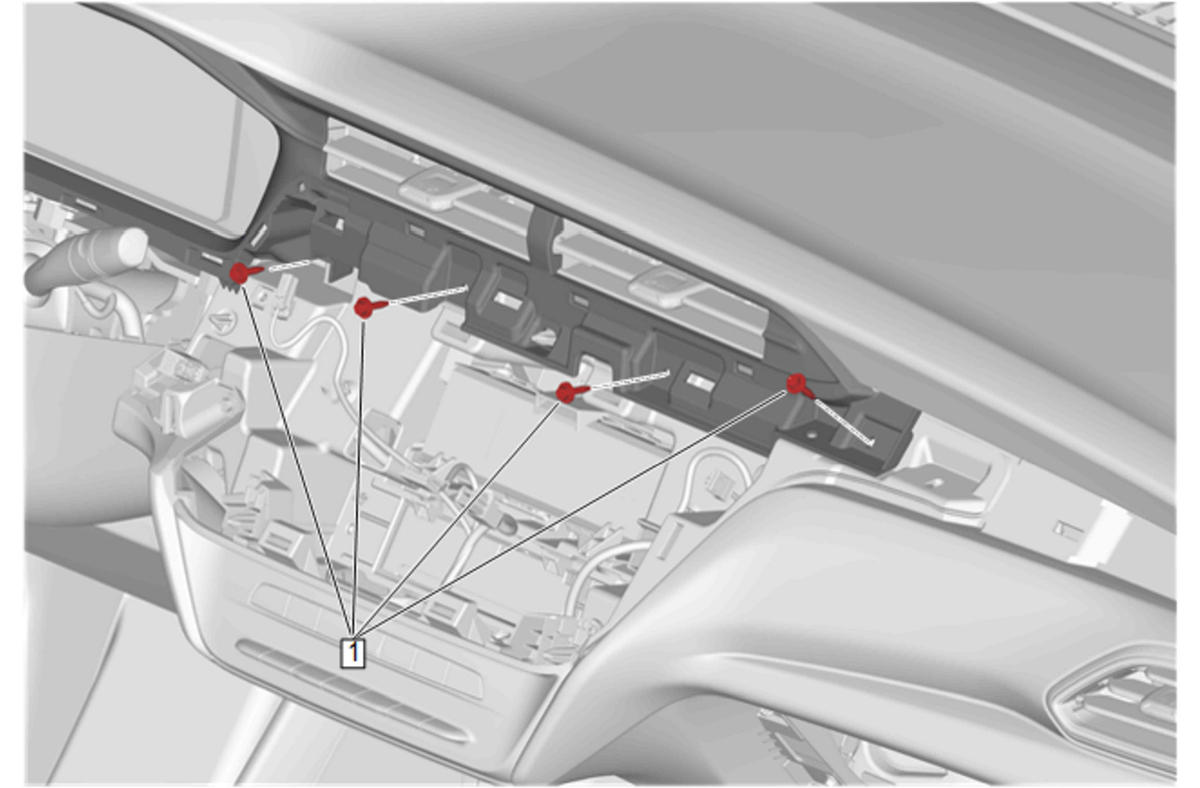

    Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

  3. GM5677636Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Center Trim Plate (1) - Install - Instrument Panel Accessory Center Trim Plate Replacement
