Removal Procedure

CAUTION:

Refer to SIR Warning .

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

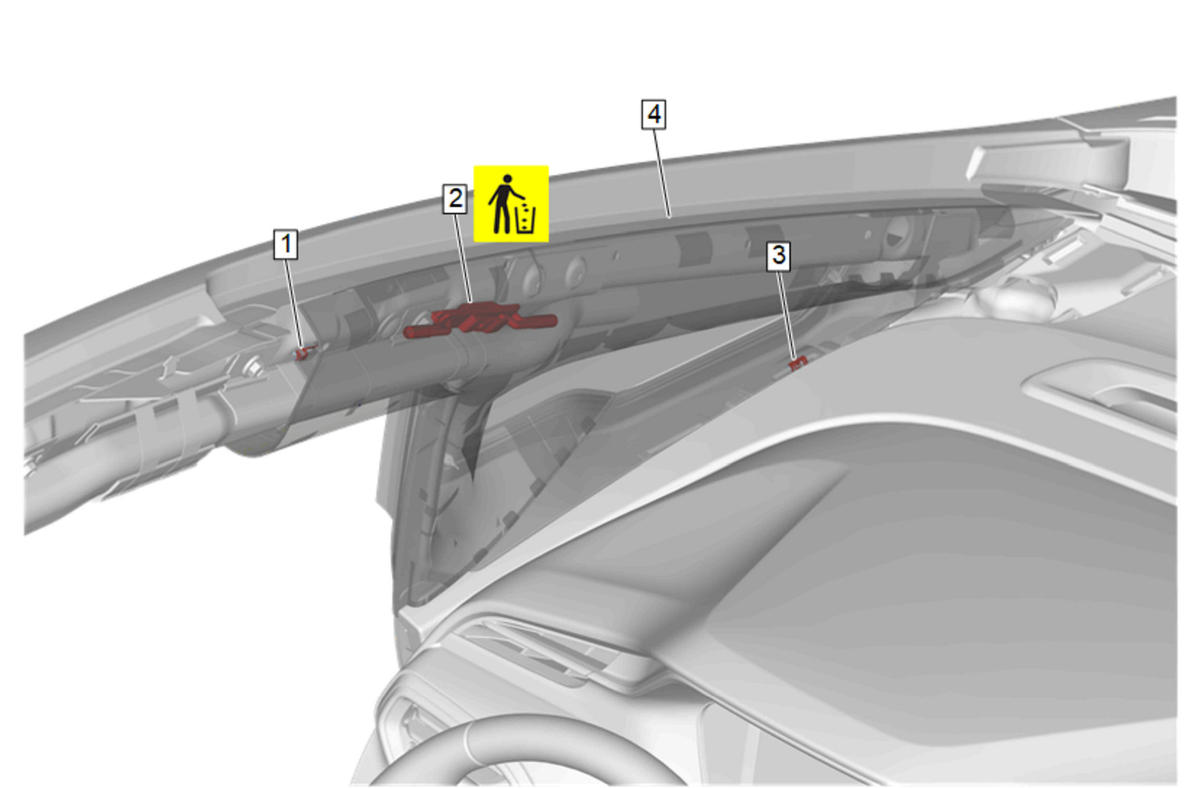

Windshield Garnish Molding- Left Side and Right Side (4) - Remove [2x] - Windshield Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

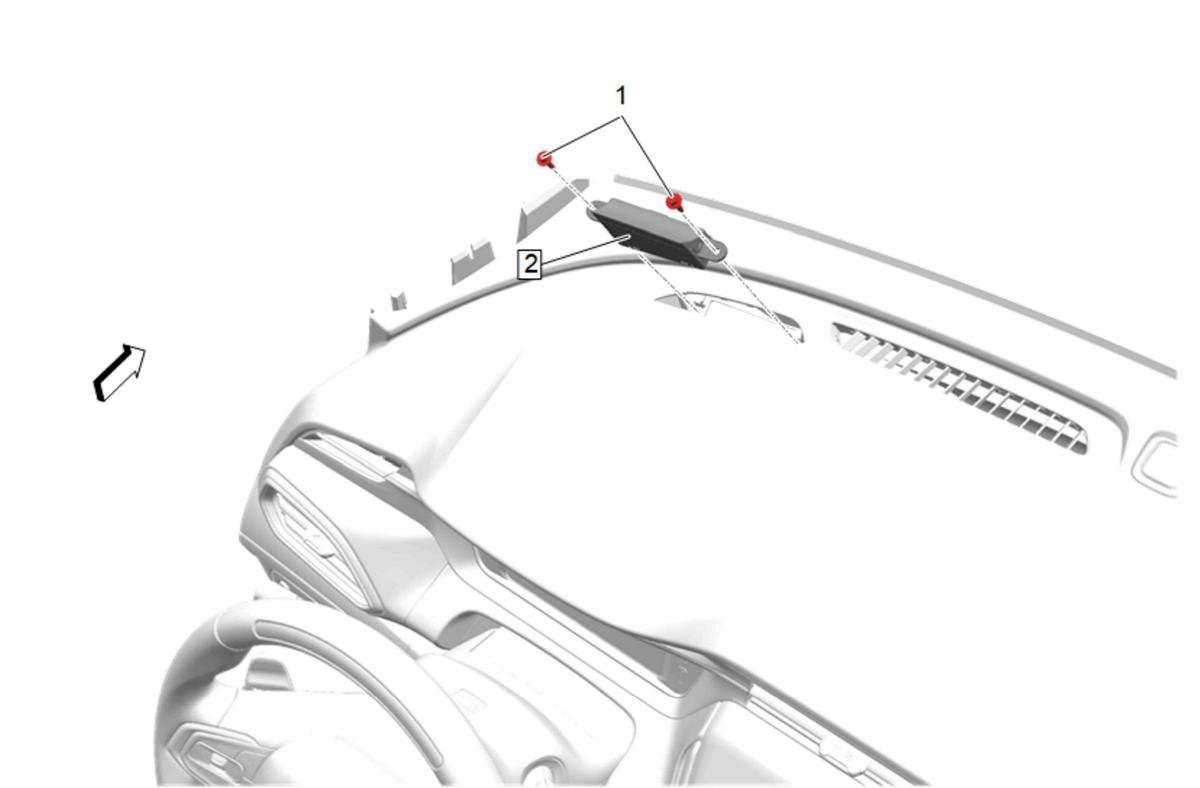

Forward Collision Alert Display (2) - Remove - Forward Collision Alert Display Replacement
Courtesy of GENERAL MOTORS COMPANY

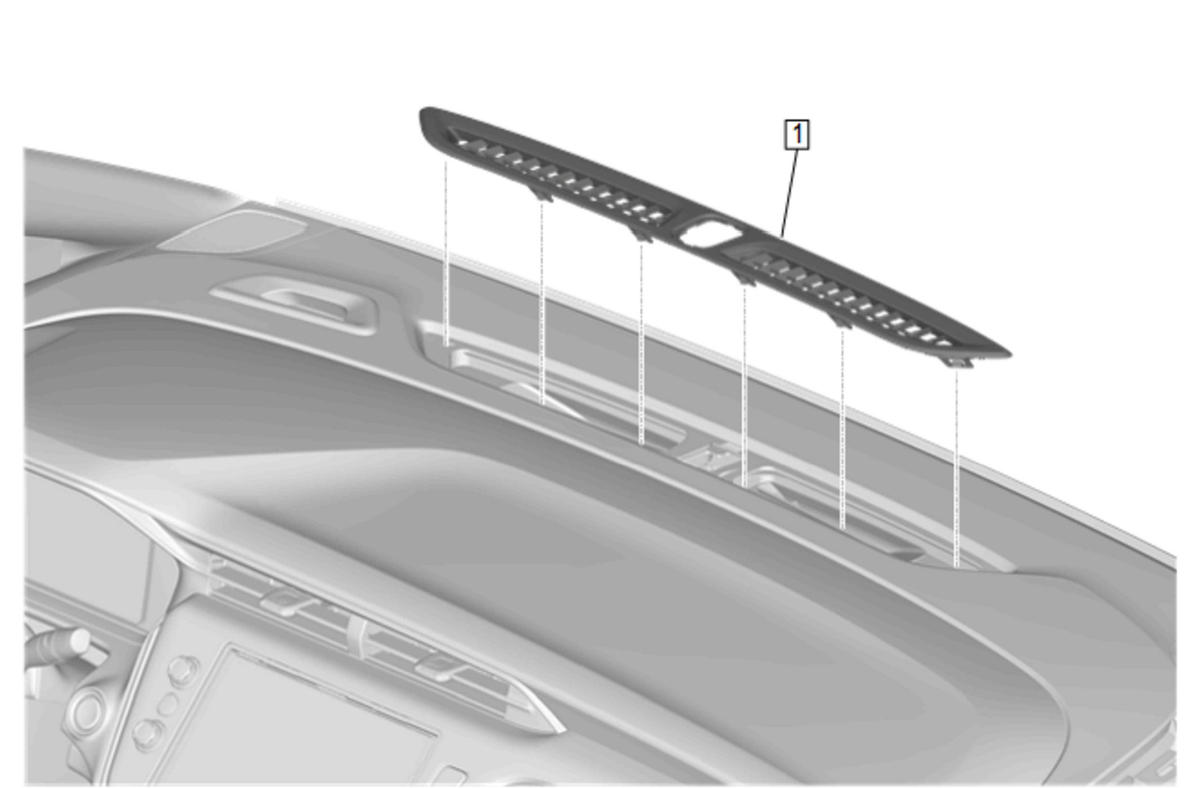

Windshield Defroster Nozzle Grille (1) - Remove - Windshield Defroster Nozzle Grille Replacement
Courtesy of GENERAL MOTORS COMPANY

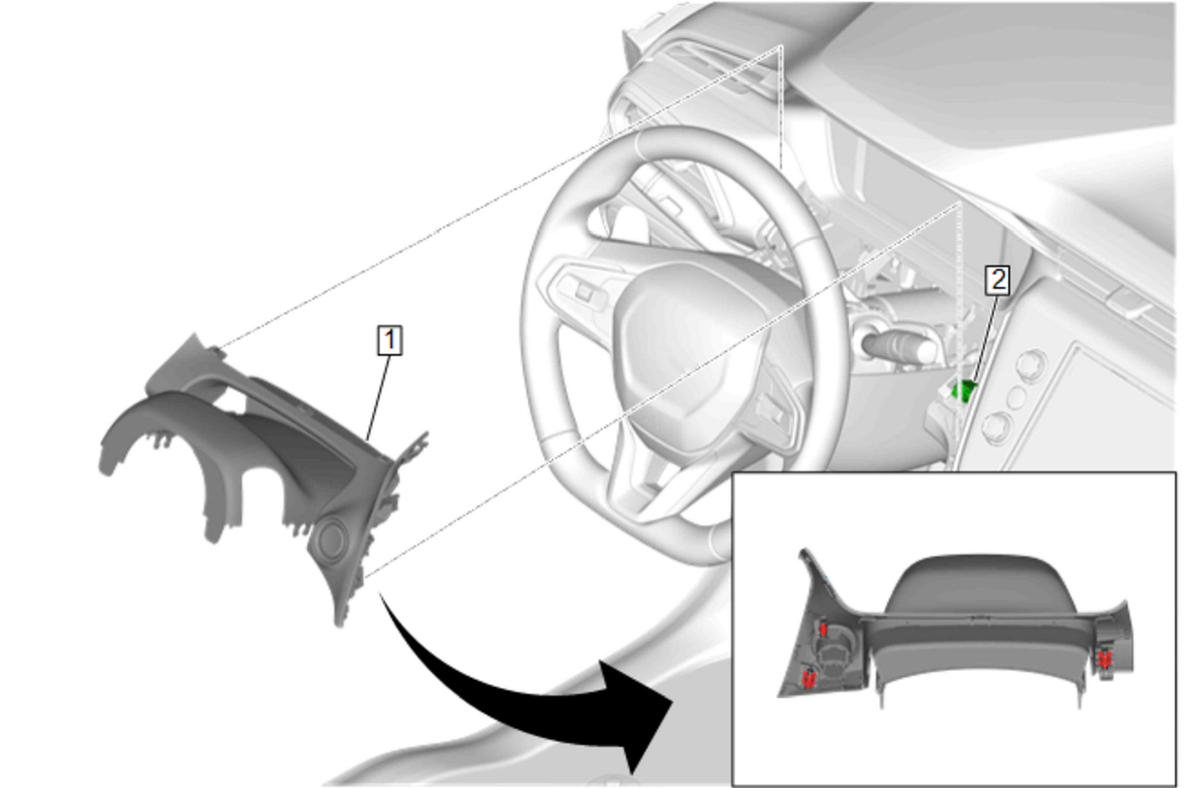

Steering Column Upper Trim Cover (1) - Remove - Steering Column Upper Trim Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

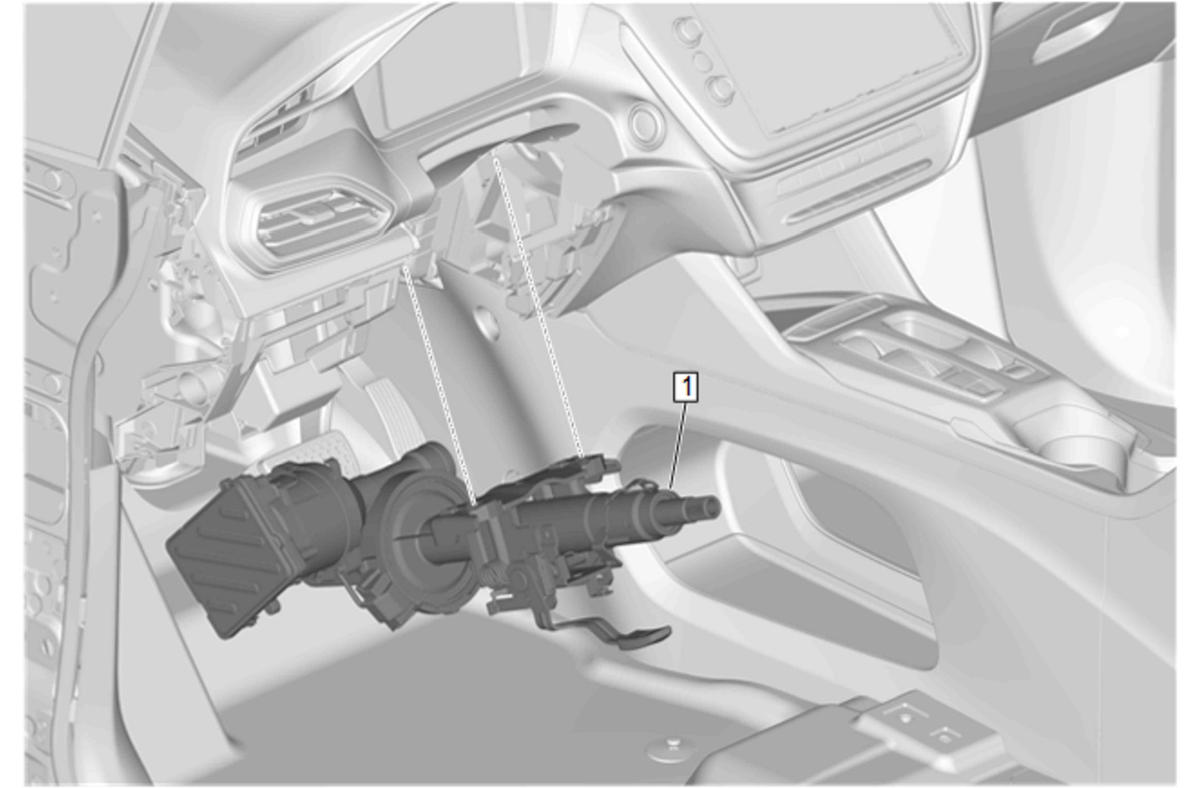

Steering Column (1) - Remove - Steering Column Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Remove - Front Floor Console Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Stowage Tray (3) - Remove - Instrument Panel Stowage Tray Replacement
Courtesy of GENERAL MOTORS COMPANY

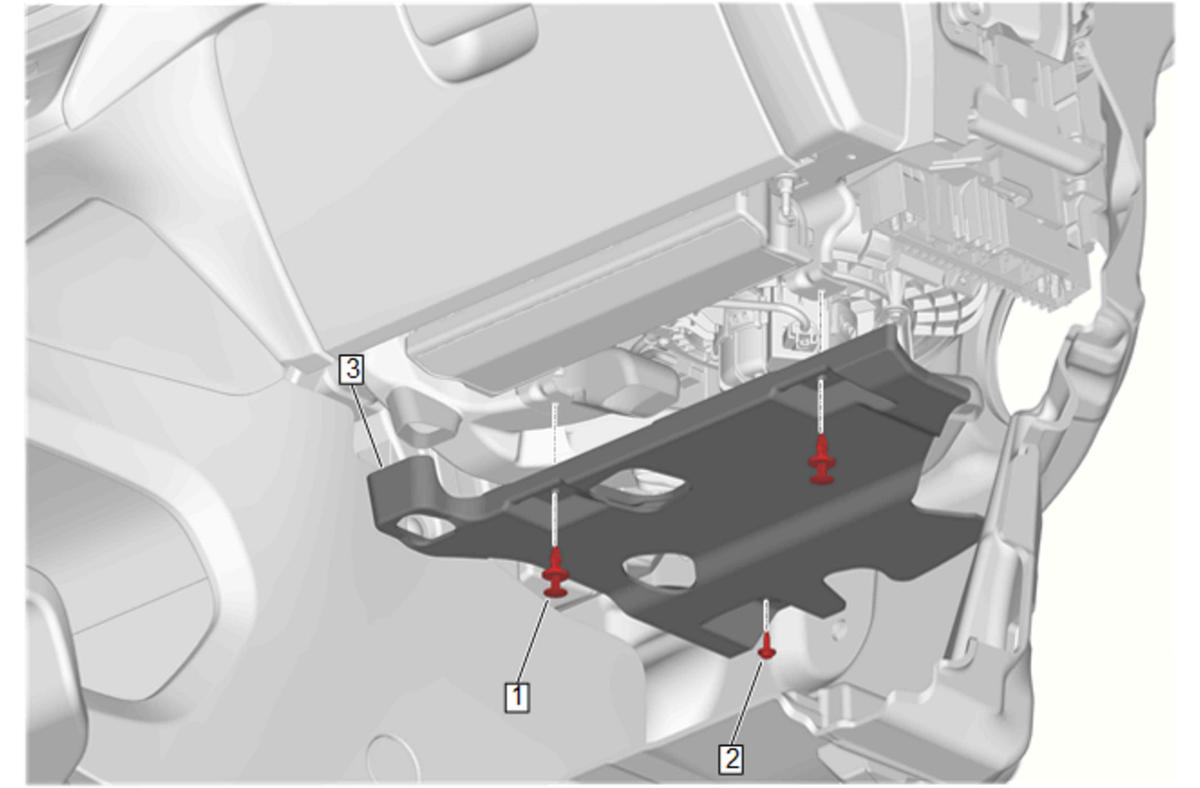

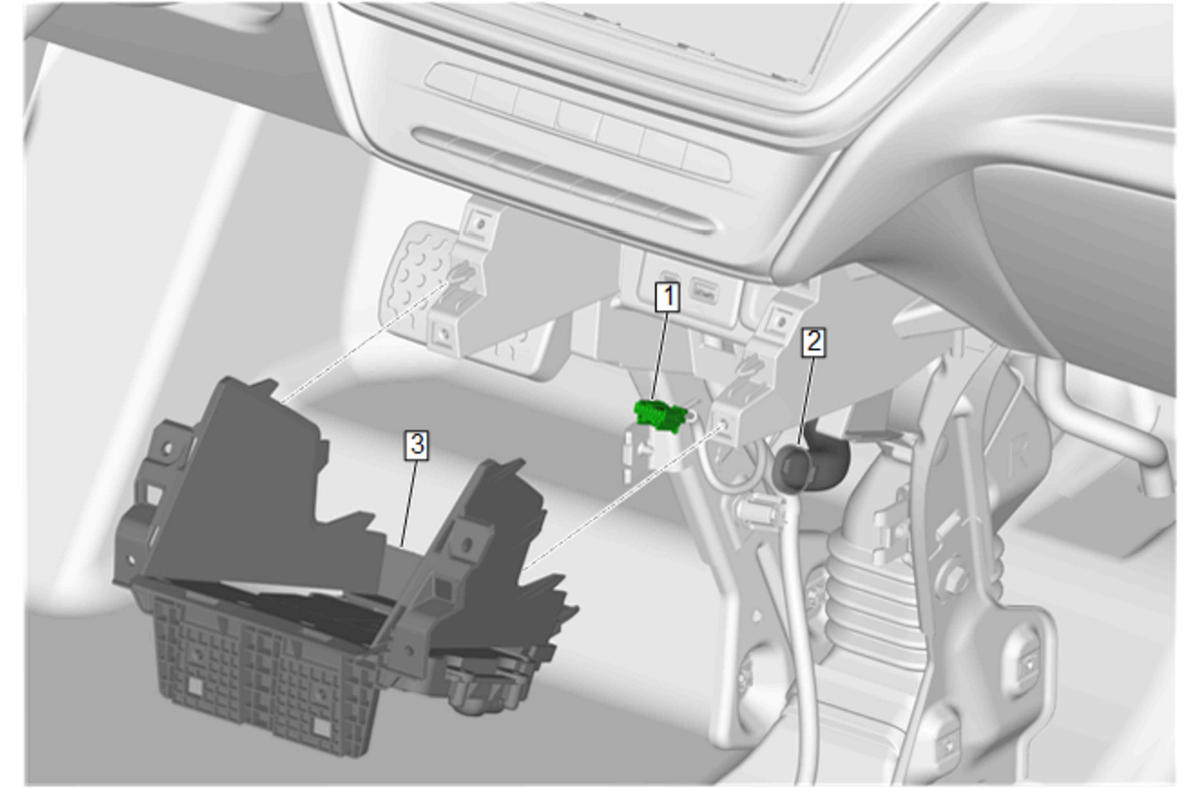

Instrument Panel Lower Trim Panel Insulator (3) - Remove - Instrument Panel Lower Trim Panel Insulator Replacement
Courtesy of GENERAL MOTORS COMPANY

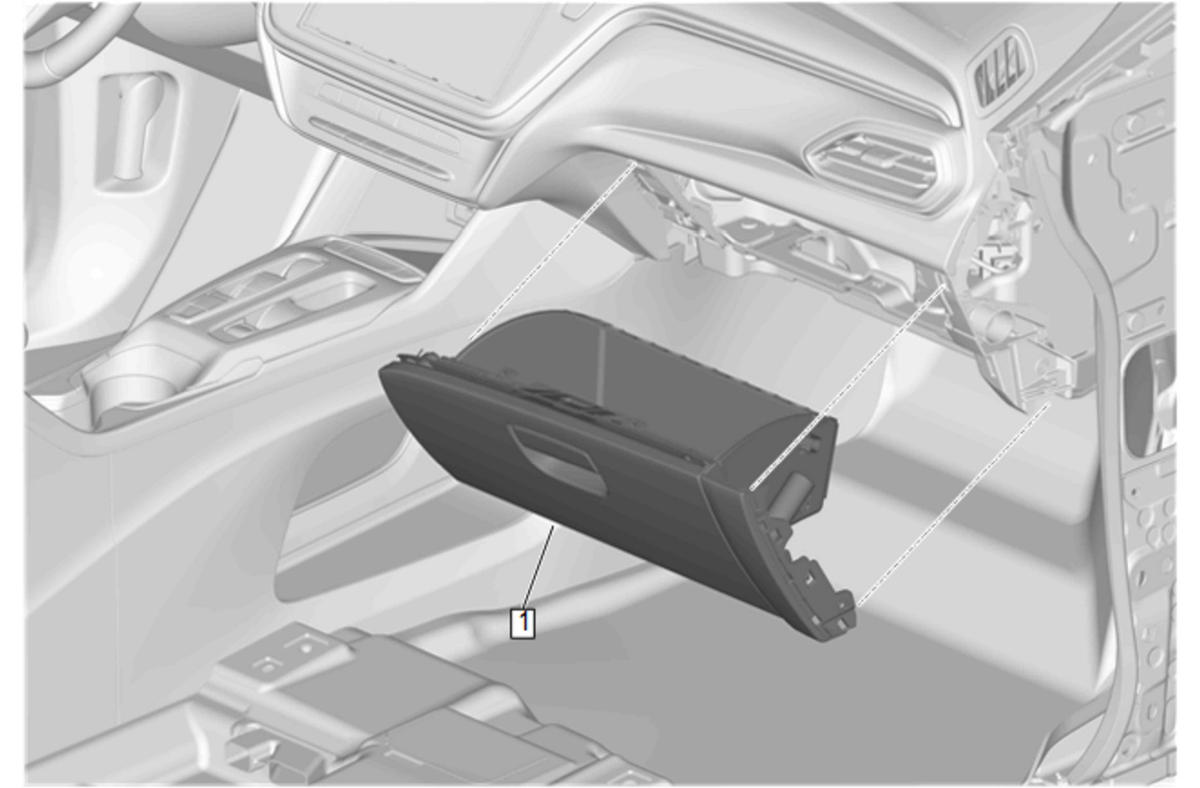

Instrument Panel Compartment (1) - Remove - Instrument Panel Compartment Replacement
Courtesy of GENERAL MOTORS COMPANY

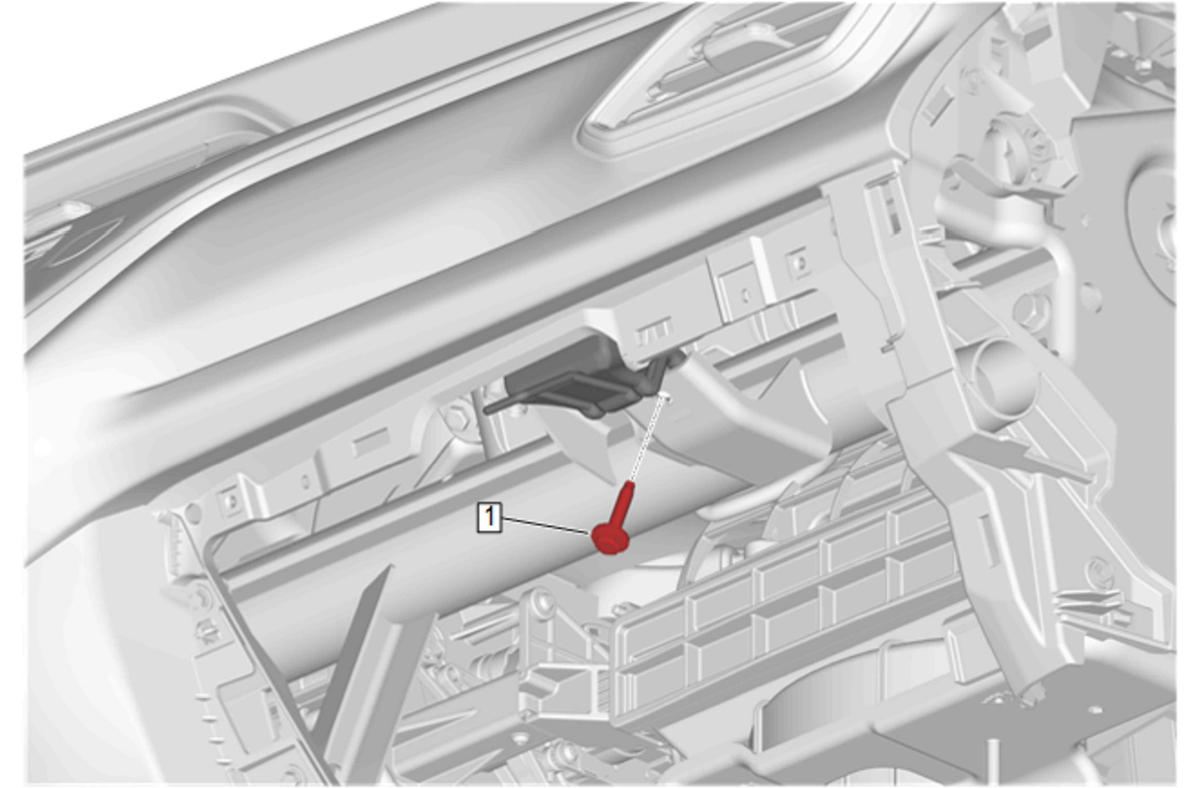

Instrument Panel Compartment Door Latch Striker Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Accessory Center Trim Plate (1) - Remove - Instrument Panel Accessory Center Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel (1) - Remove - Instrument Panel Lower Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

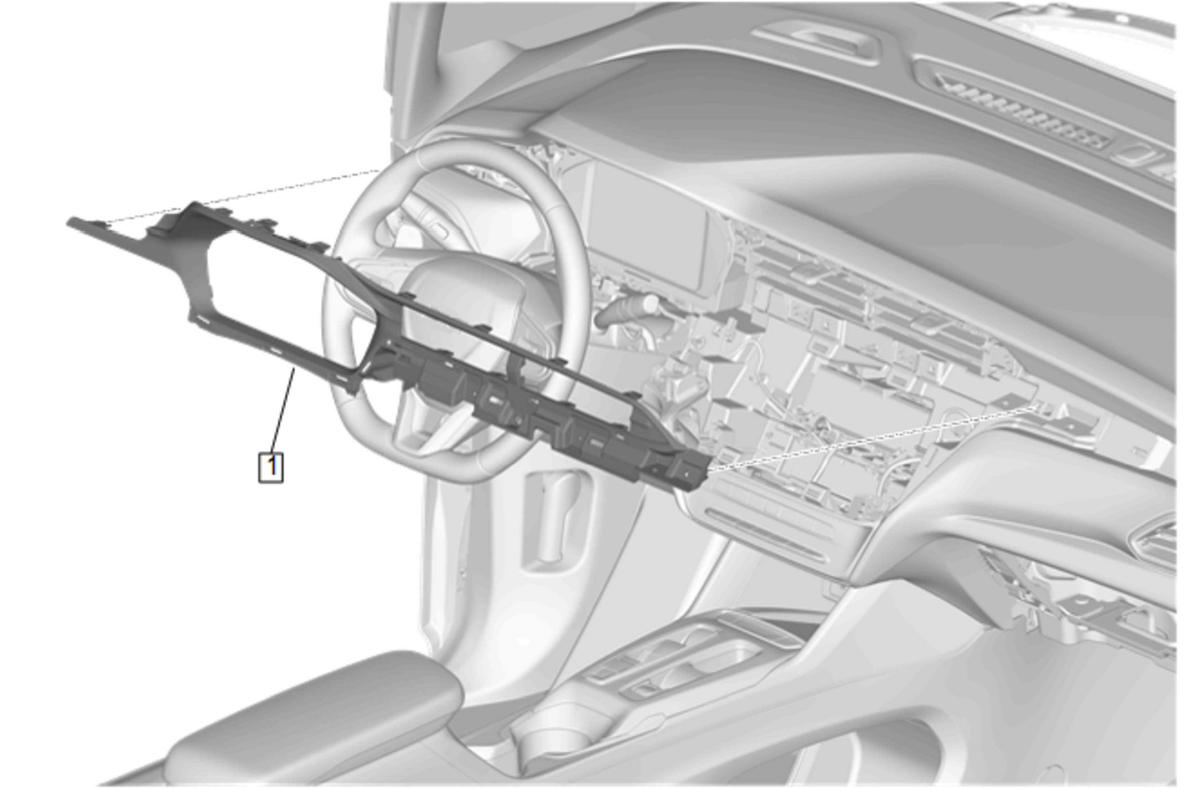

Instrument Panel Cluster Trim Plate (1) - Remove - Instrument Panel Cluster Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

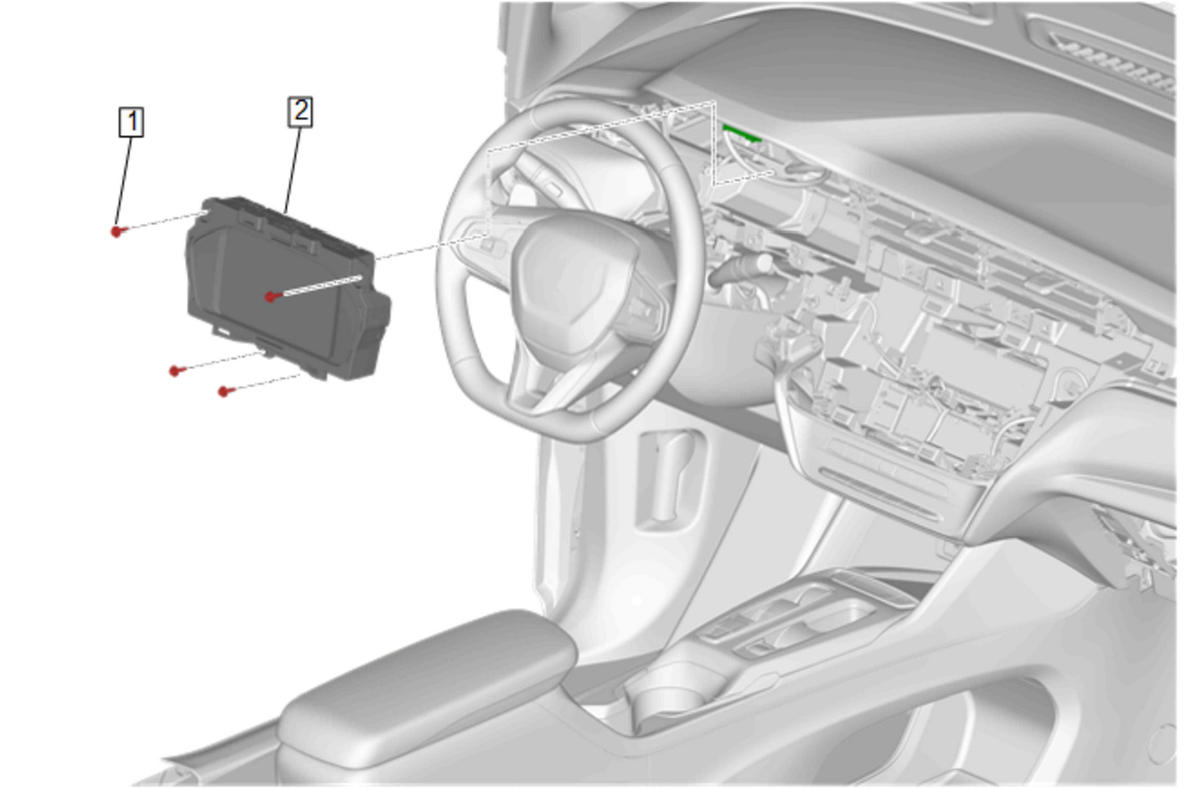

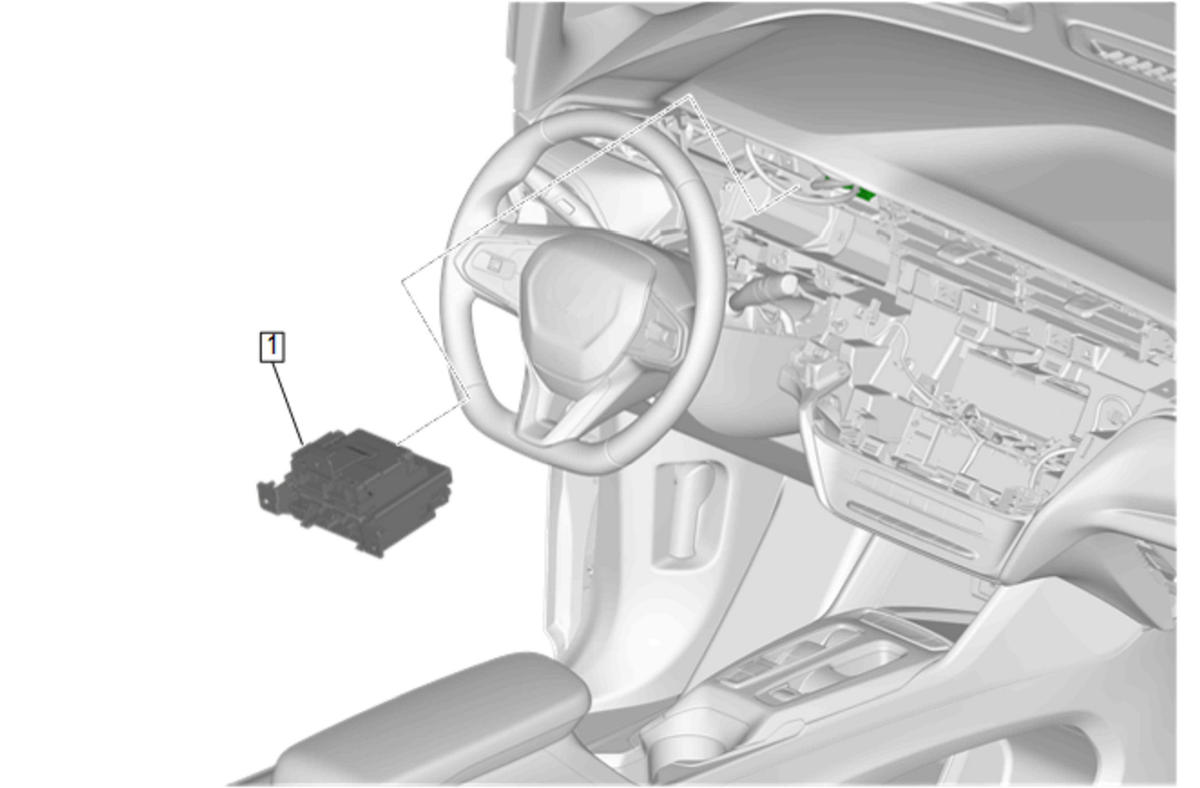

Instrument Cluster (2) - Remove - Instrument Cluster Replacement
Courtesy of GENERAL MOTORS COMPANY

Keyless Entry Control Module Bracket (1) - Remove - Keyless Entry Control Module Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

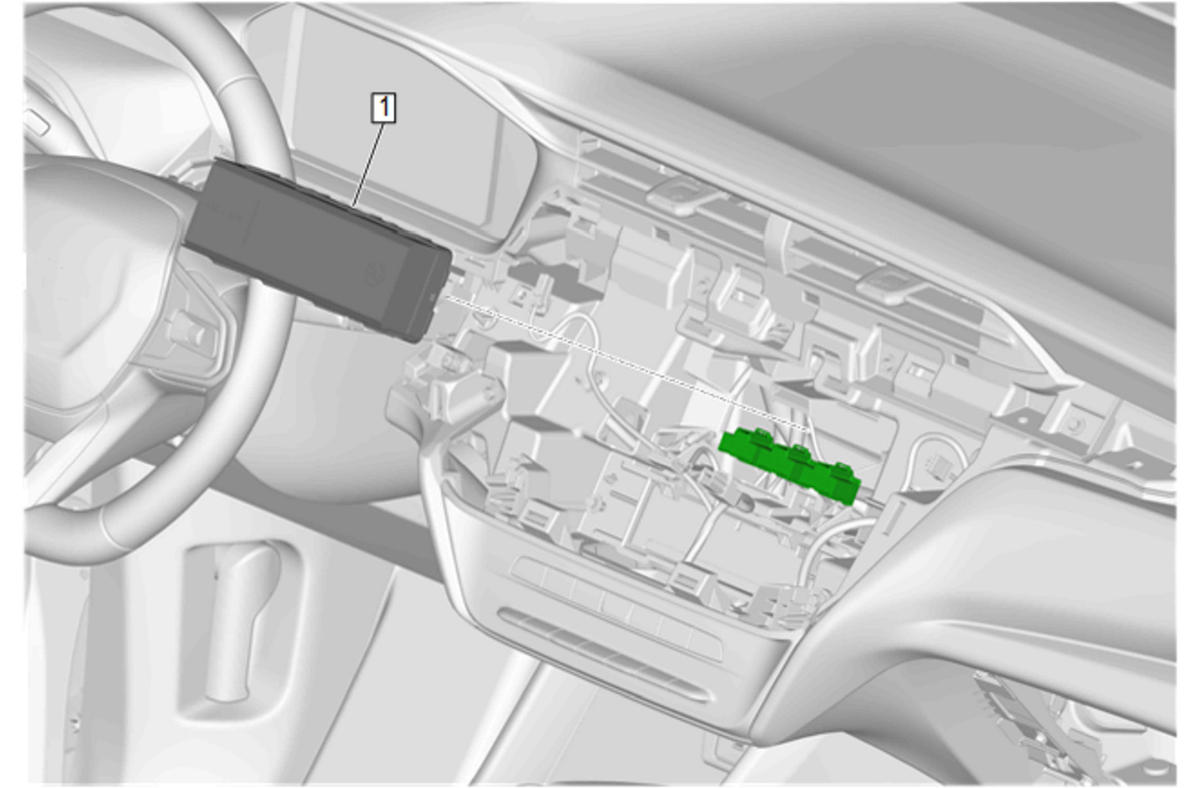

Heater and Air Conditioning Remote Control (1) - Remove - Heater and Air Conditioning Remote Control Replacement
Courtesy of GENERAL MOTORS COMPANY

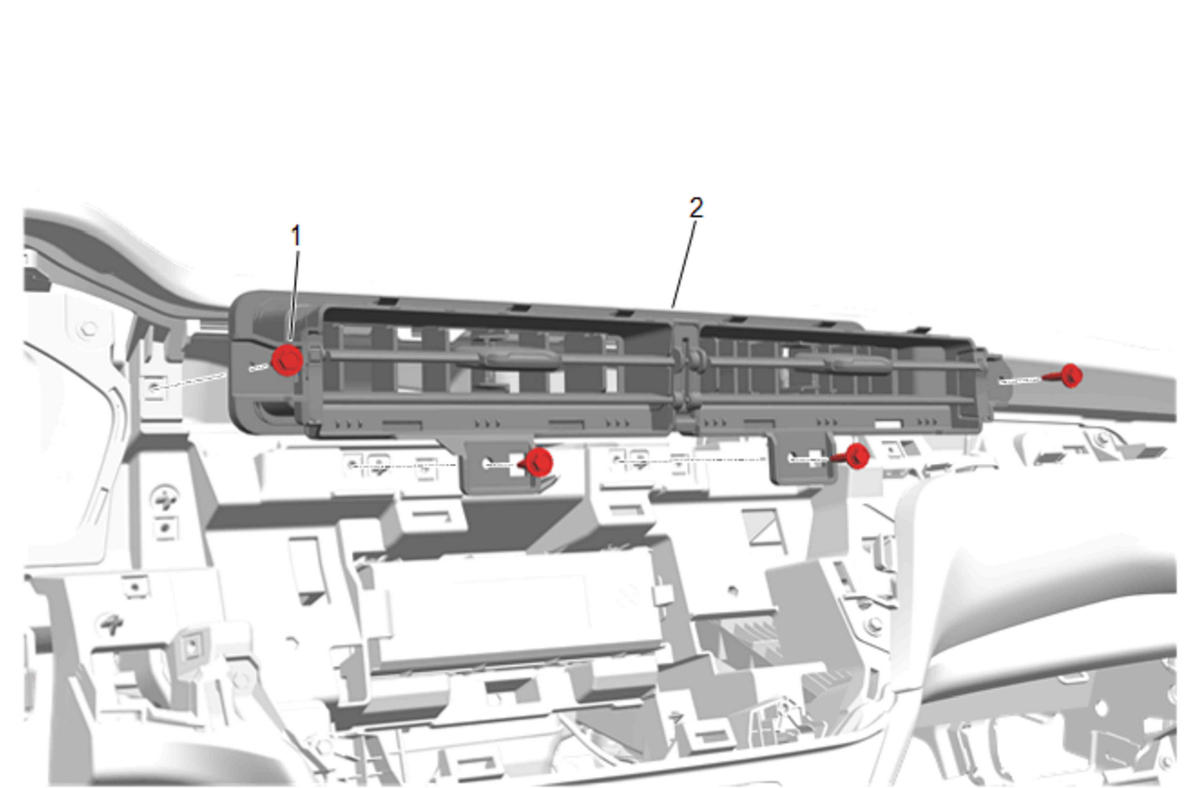

Communication Interface Module Bracket (2) - Remove - Communication Interface Module Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

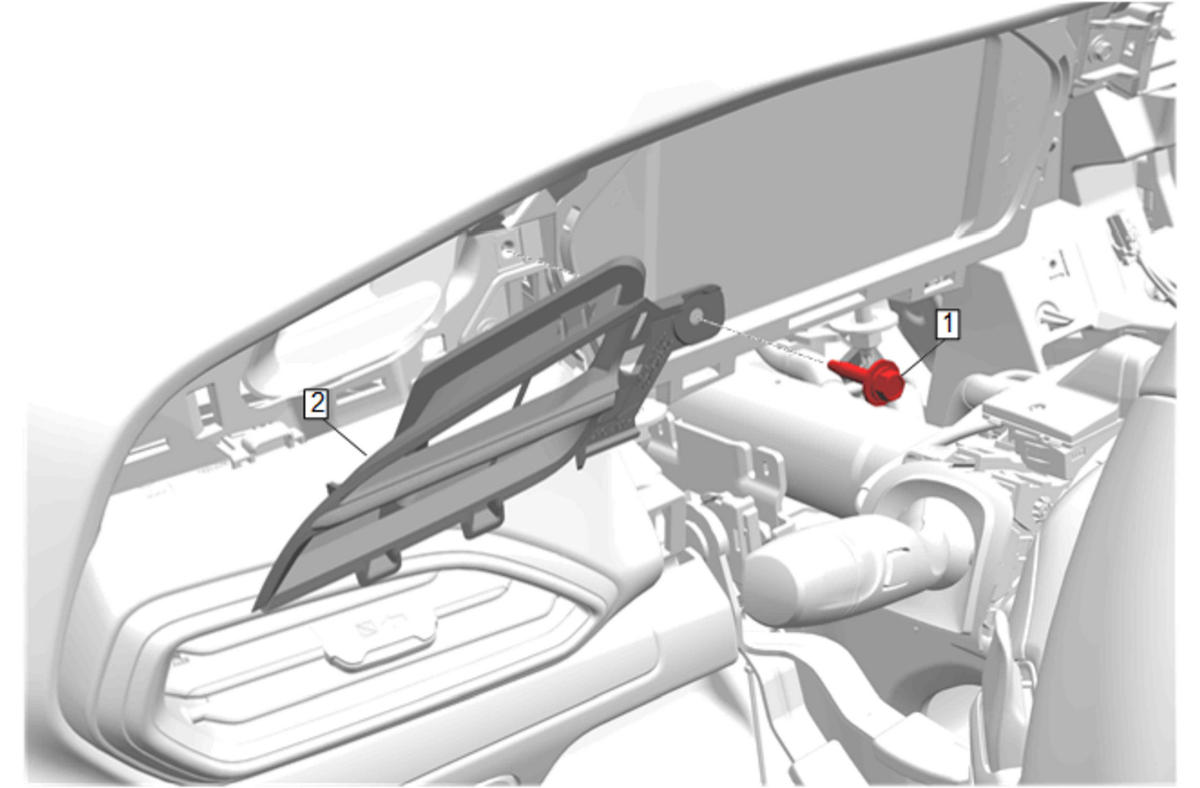

Side Window Defogger Outlet Grille - Left Side (2) - Remove - Side Window Defogger Outlet Grille Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Air Outlet (2) - Remove - Instrument Panel Center Air Outlet Replacement
Courtesy of GENERAL MOTORS COMPANY

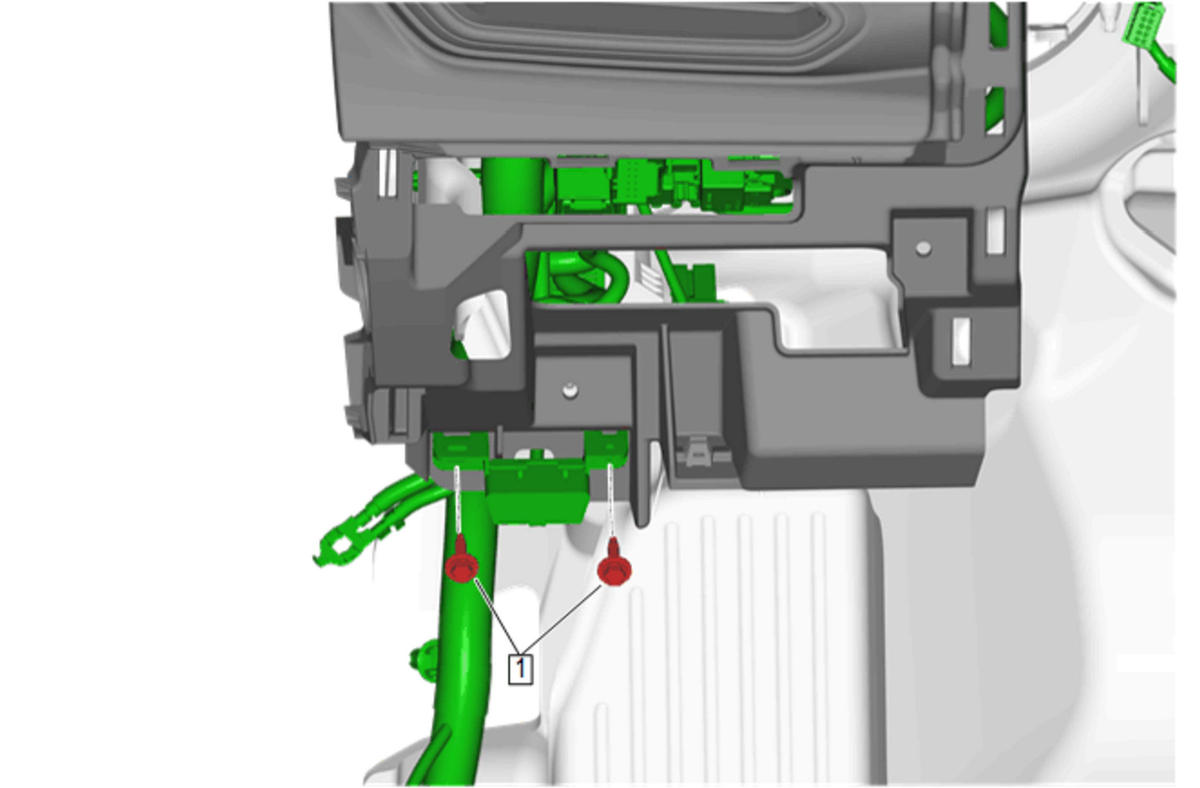

Data Link Connector Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

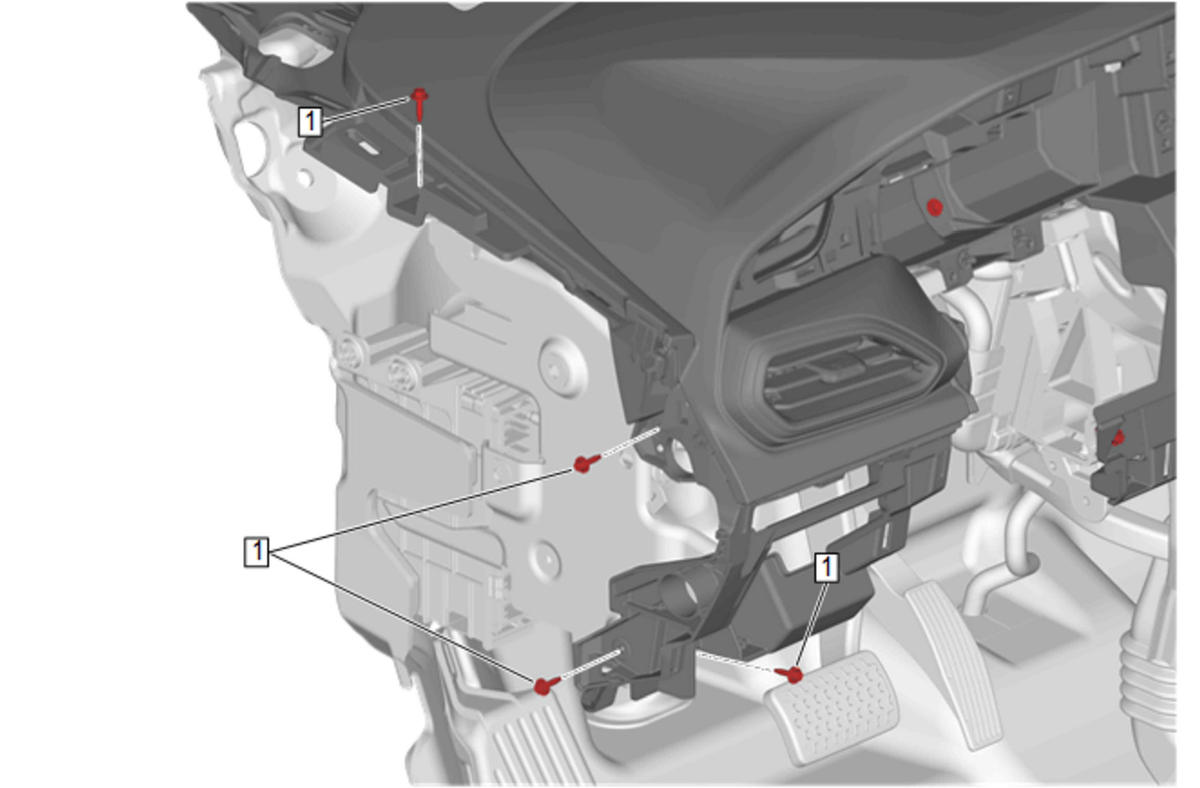

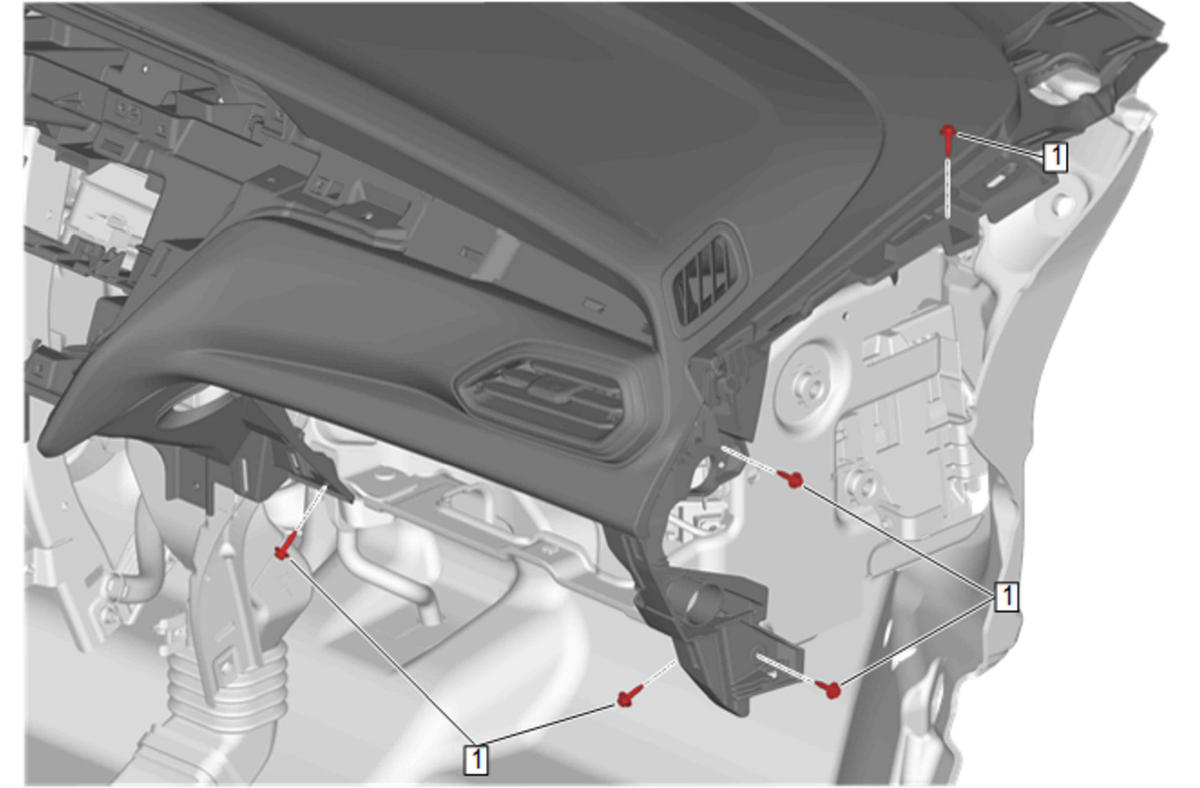

Instrument Panel Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

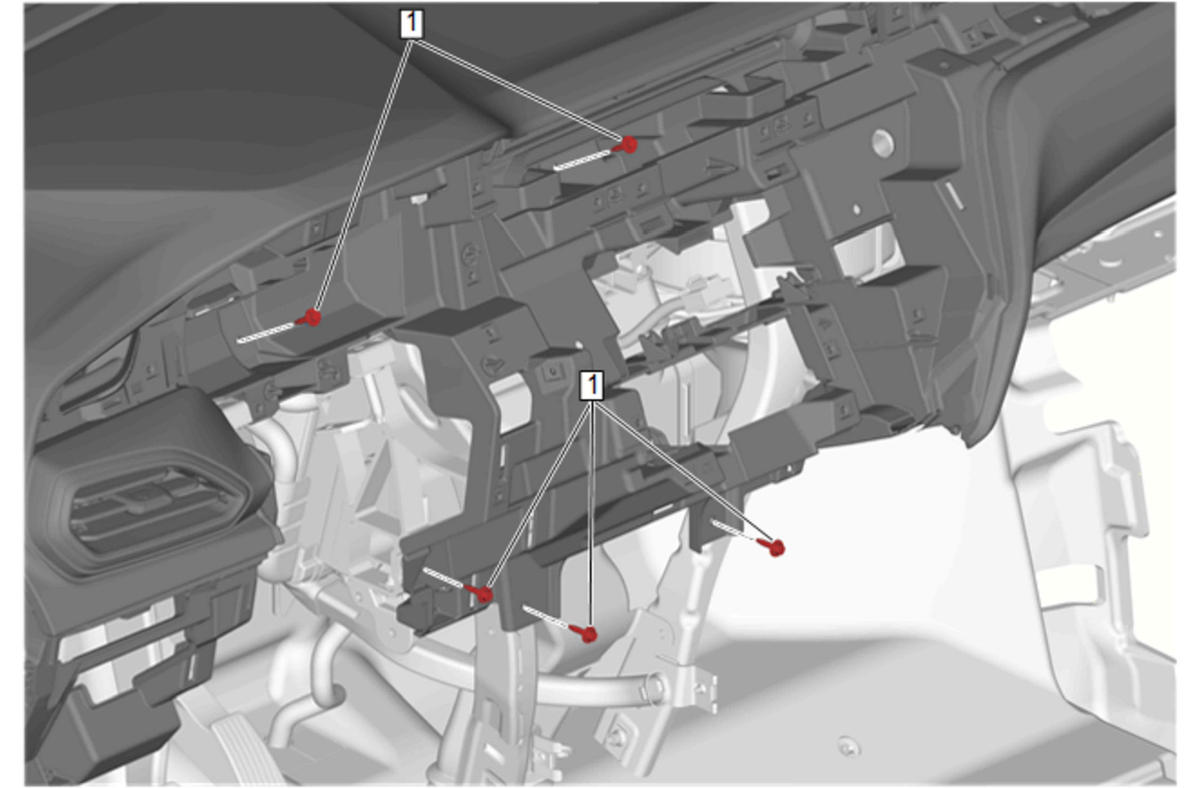

Instrument Panel Bolt (1) - Remove [5x]
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Bolt (1) - Remove [5x]
Courtesy of GENERAL MOTORS COMPANY

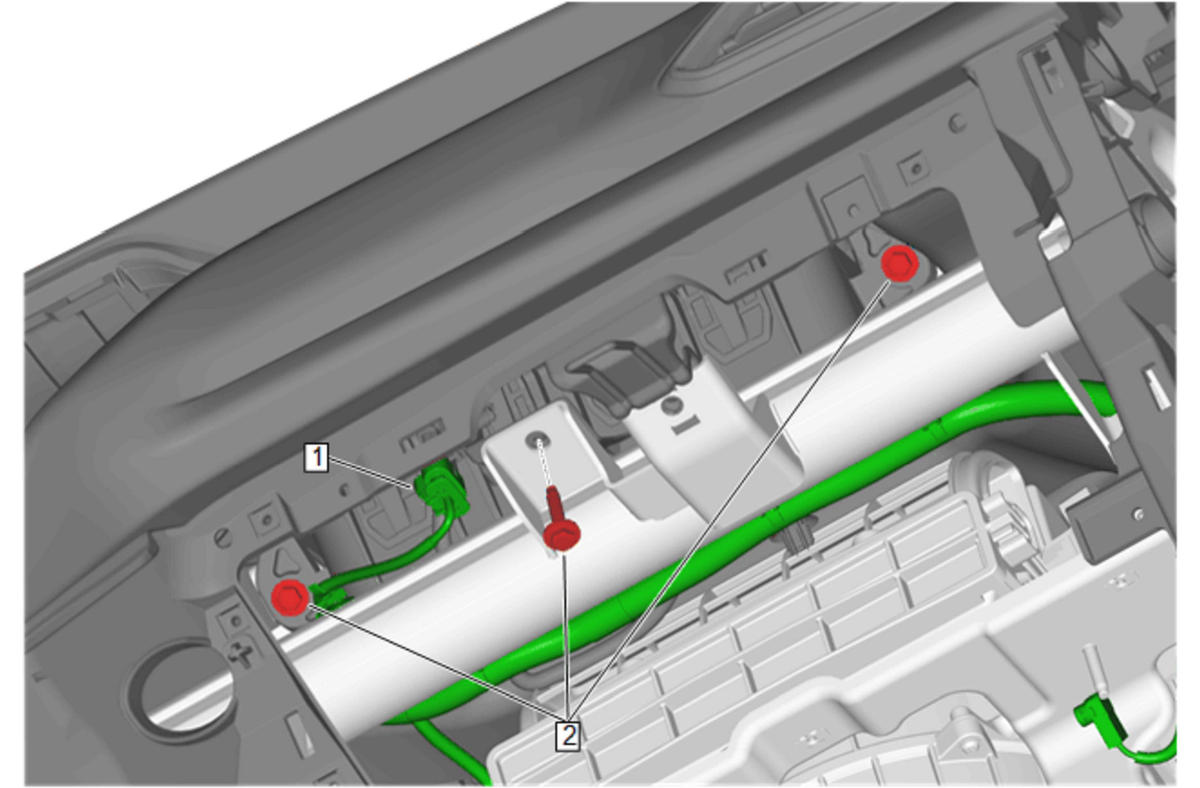

Disconnect the electrical connector (1).

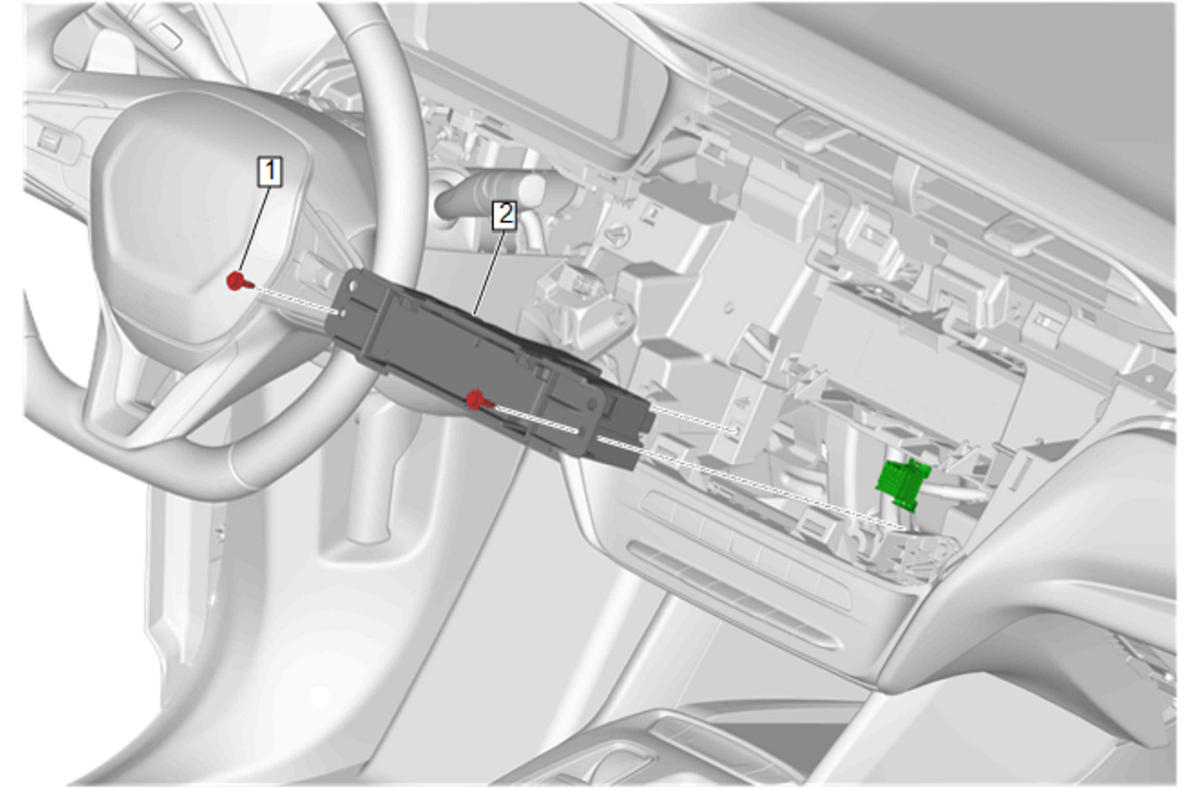

Instrument Panel Airbag Bolt (2) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

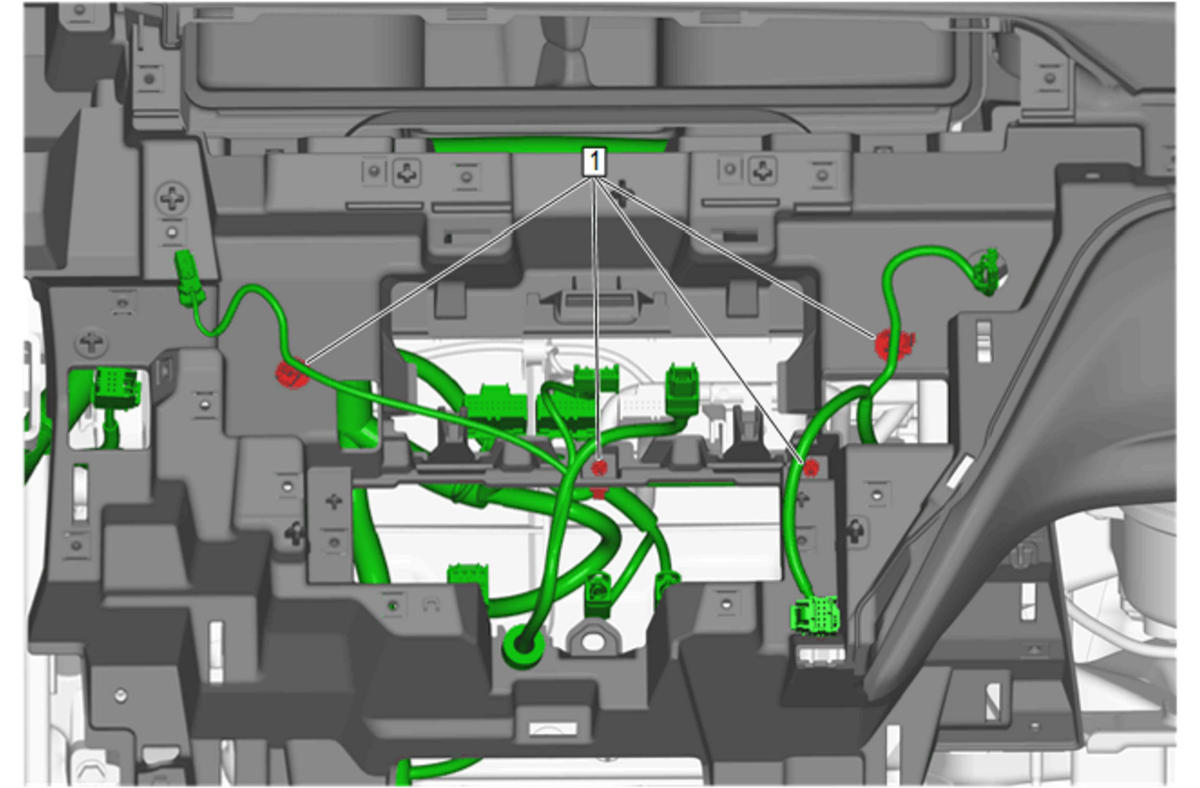

Remove the wiring harness retainers (1).
Courtesy of GENERAL MOTORS COMPANY

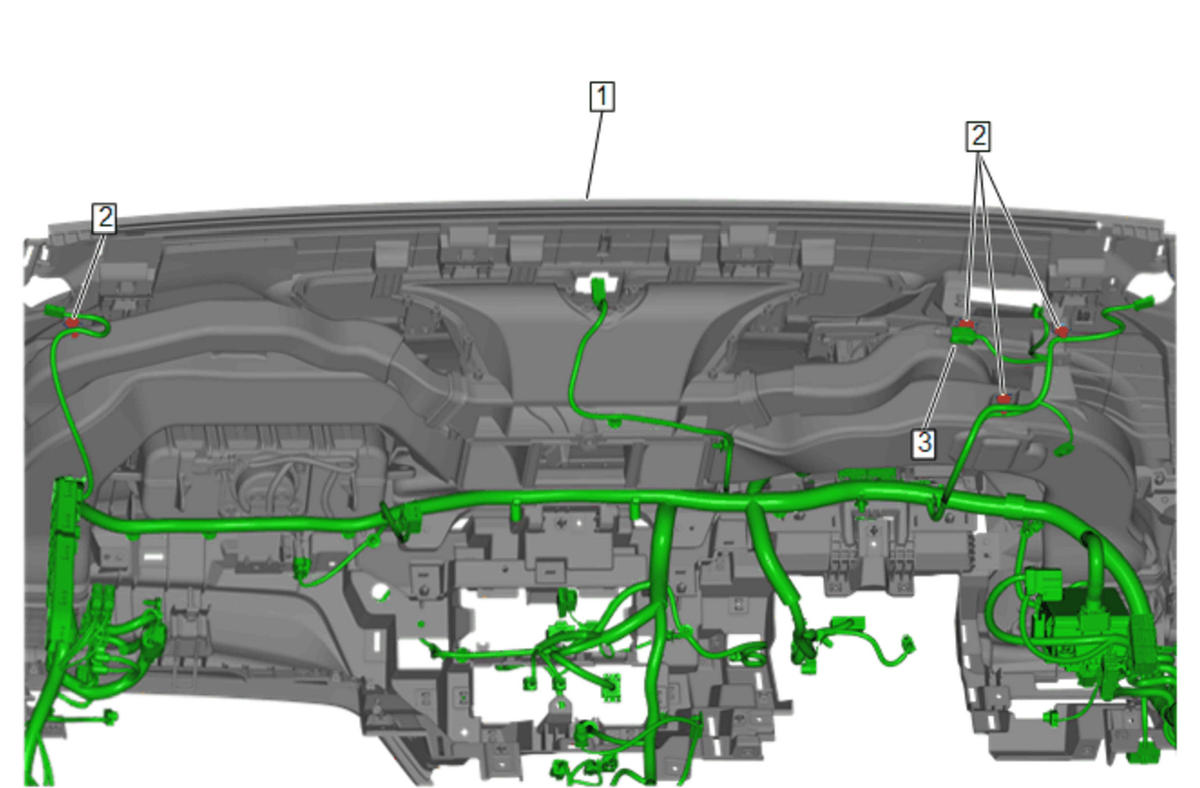

Pull the instrument panel (1) rearwards enough to access the remaining electrical connector and wiring harness retainers.
Remove the wiring harness retainers (2).
Disconnect the electrical connector (3).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Note the routing of the instrument panel wiring harness prior to removal to ensure proper installation.

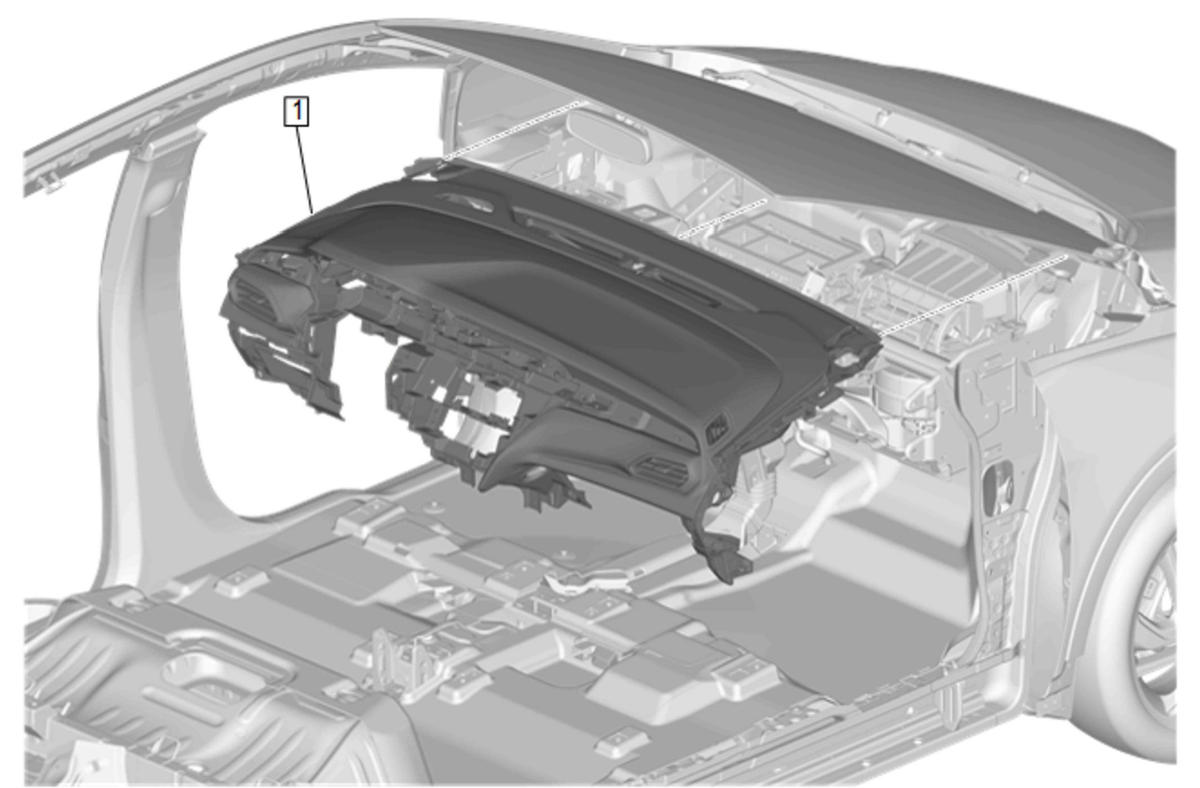

With the aid of an assistant, remove the instrument panel (1) from the vehicle.
Transfer components as necessary.
