Installation Procedure

  1. GM5677636Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Instrument Panel Accessory Center Trim Plate (1) - Install

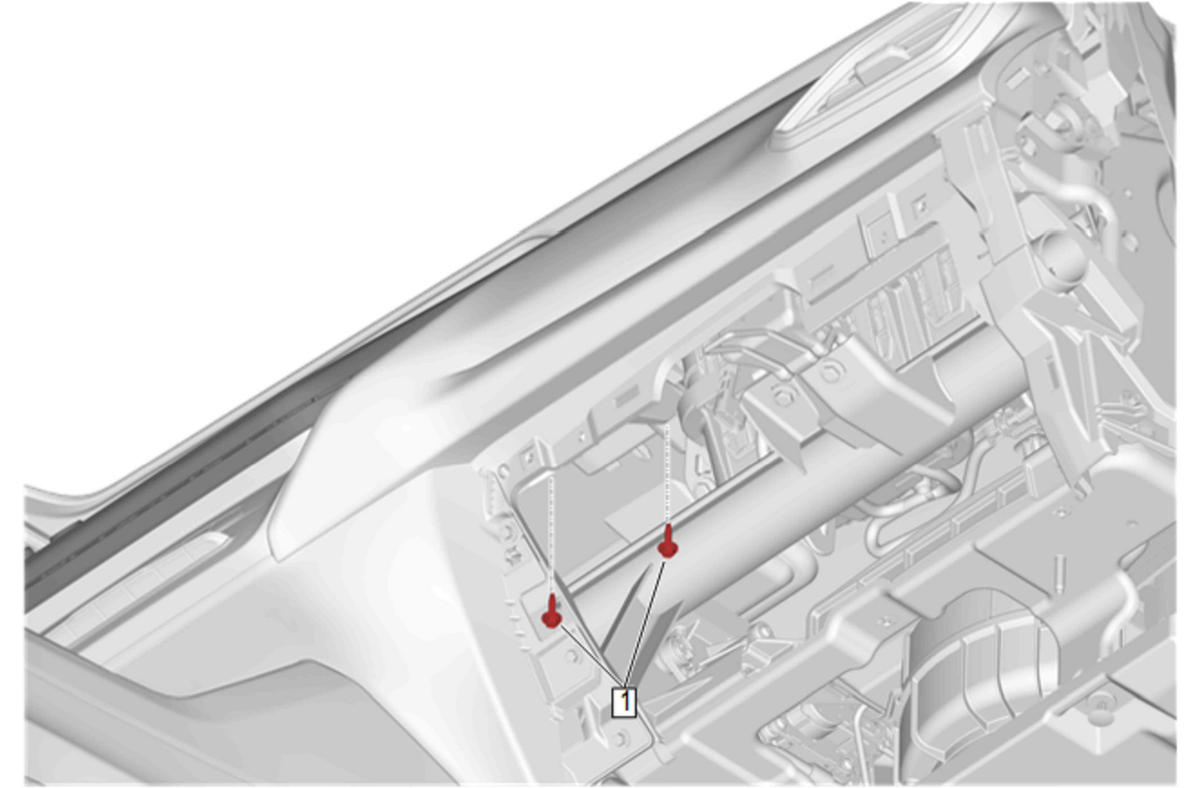

  3. GM5678676Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Accessory Center Trim Plate Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

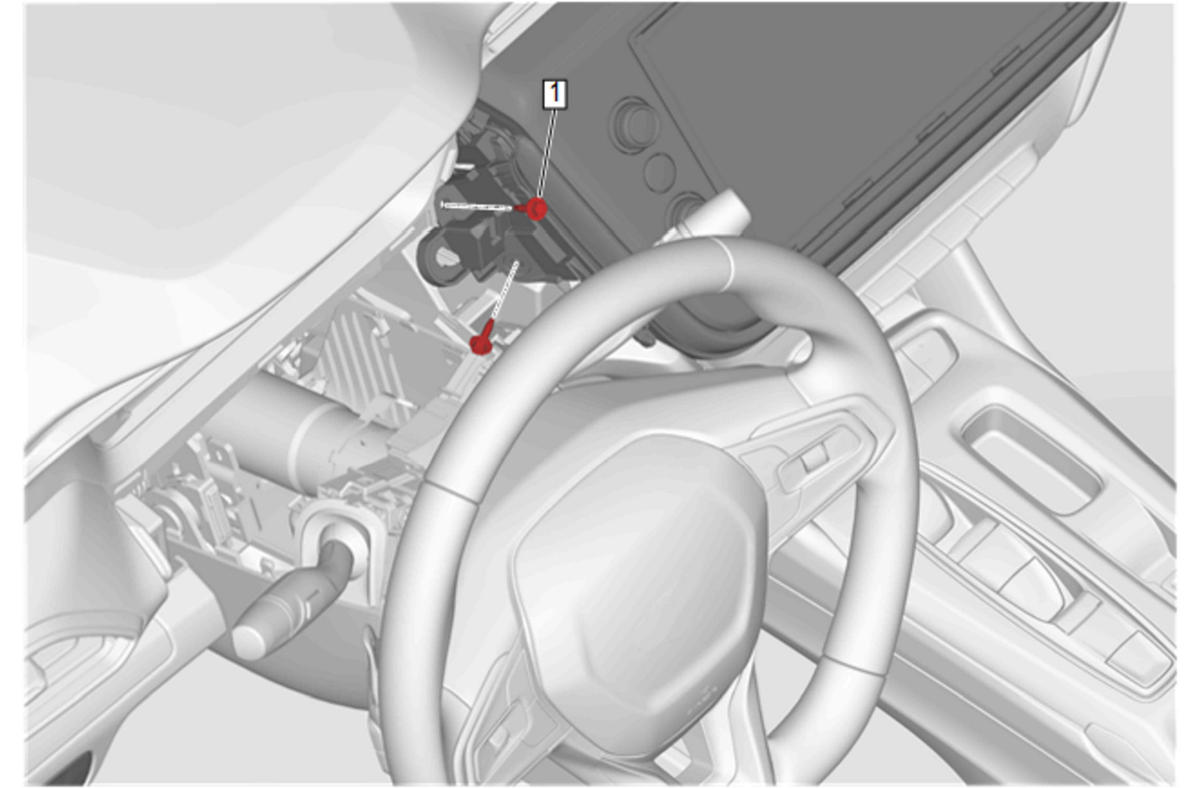

  4. GM5677635Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Center Trim Plate Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

  5. GM5678650Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (1) - Install - Instrument Panel Compartment Replacement

  6. GM5674698Courtesy of GENERAL MOTORS COMPANY

    Steering Column Upper Trim Cover (1) - Install - Steering Column Upper Trim Cover Replacement
