Installation Procedure

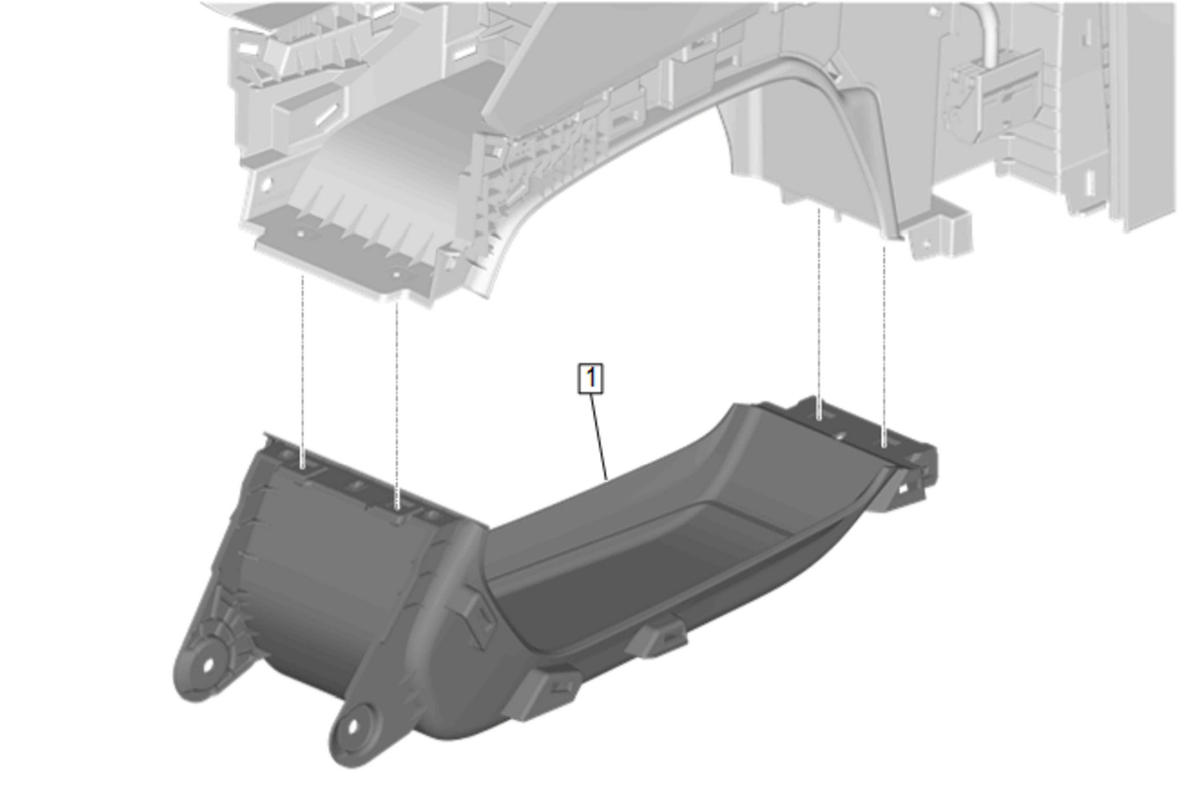

  1. GM5682782Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

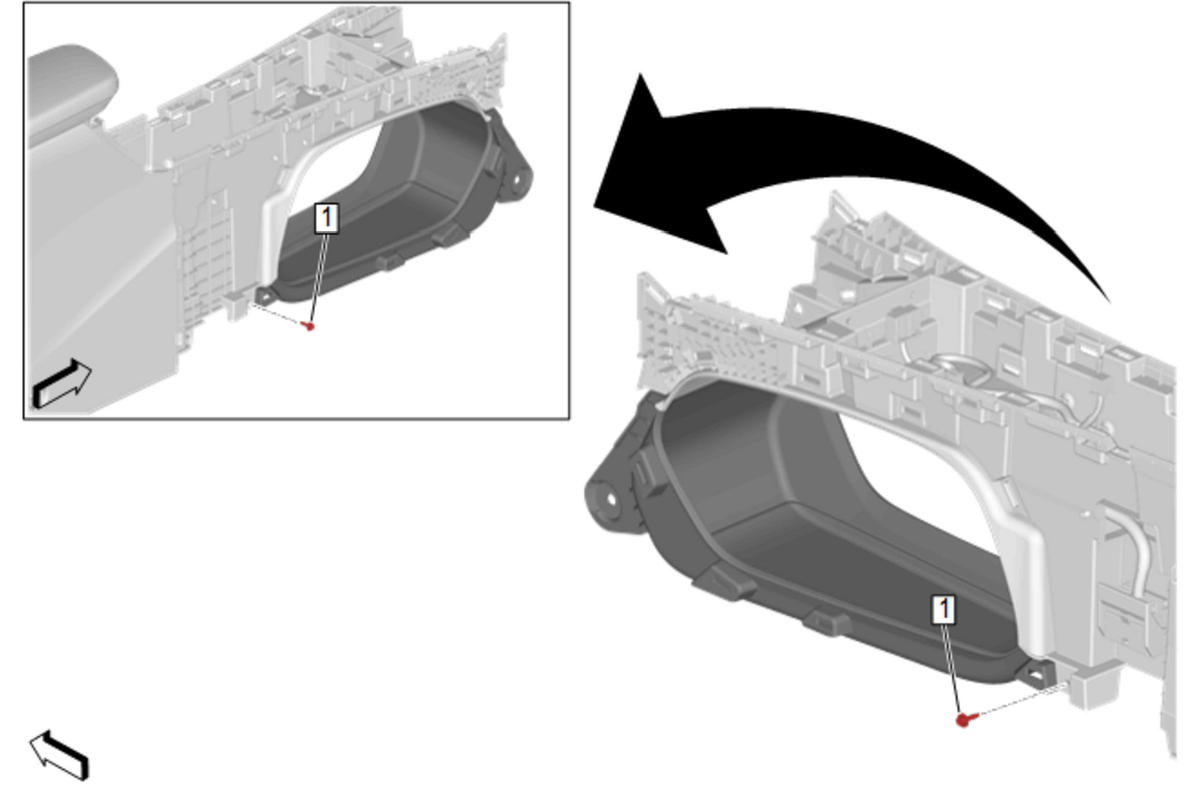

  2. GM5682781Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

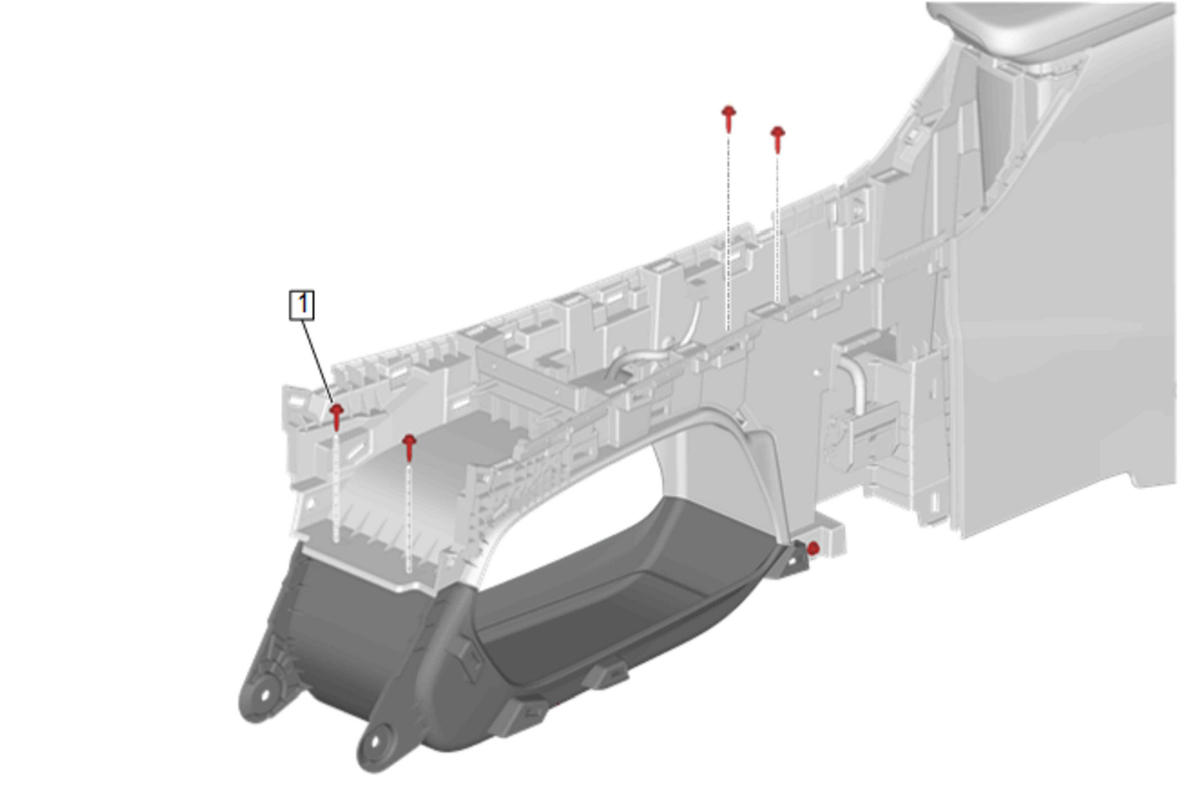

  3. GM5682780Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

  4. GM5682757Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Trim Plate (1) - Install - Front Floor Console Cup Holder Trim Plate Replacement

  5. GM5681798Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement
