Installation Procedure

  1. GM5681798Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install

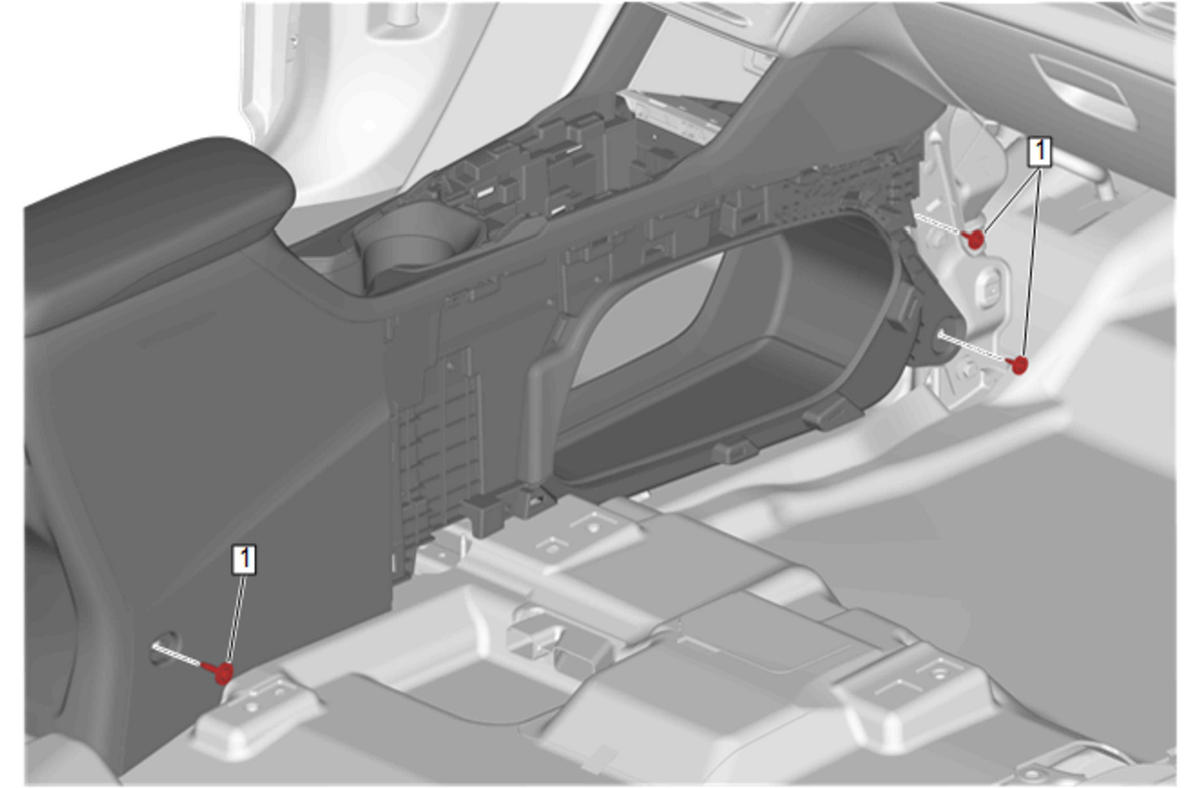

  2. GM5681447Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

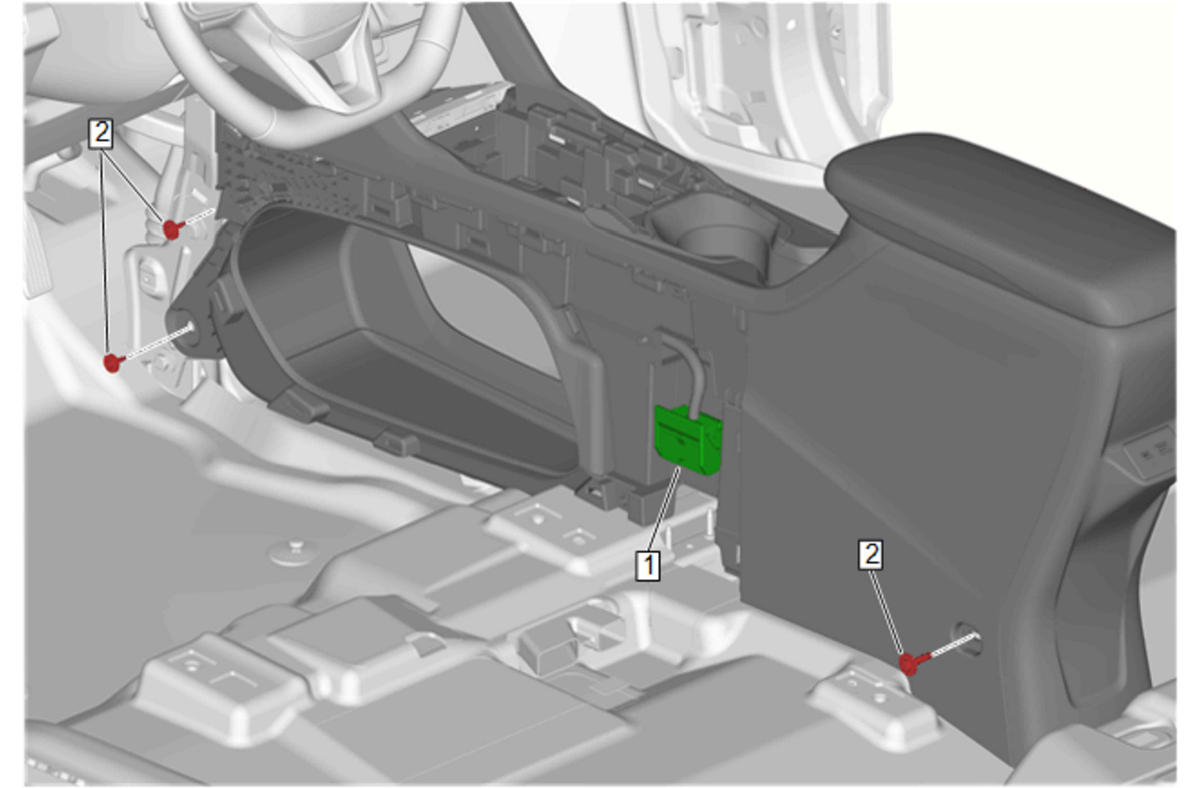

  3. GM5681366Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

  4. Connect the electrical connector (1).

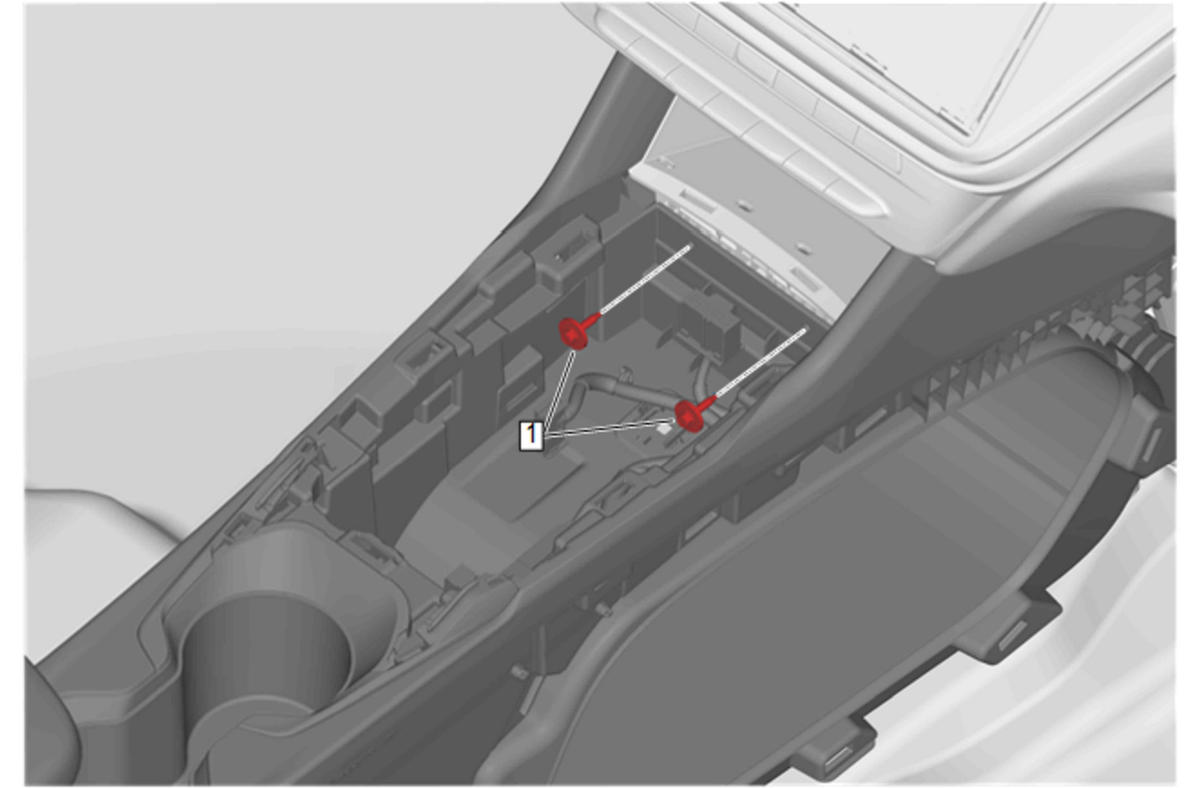

  5. GM5681364Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

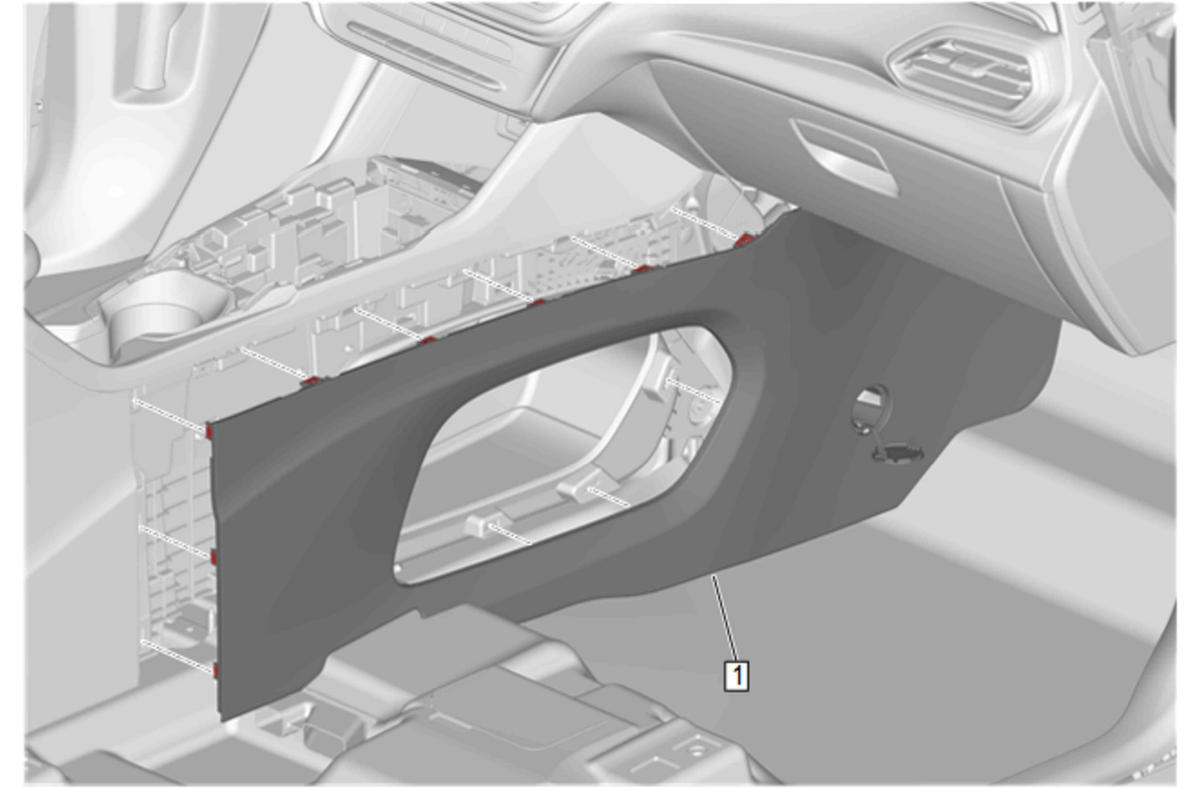

  6. GM5681911Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side

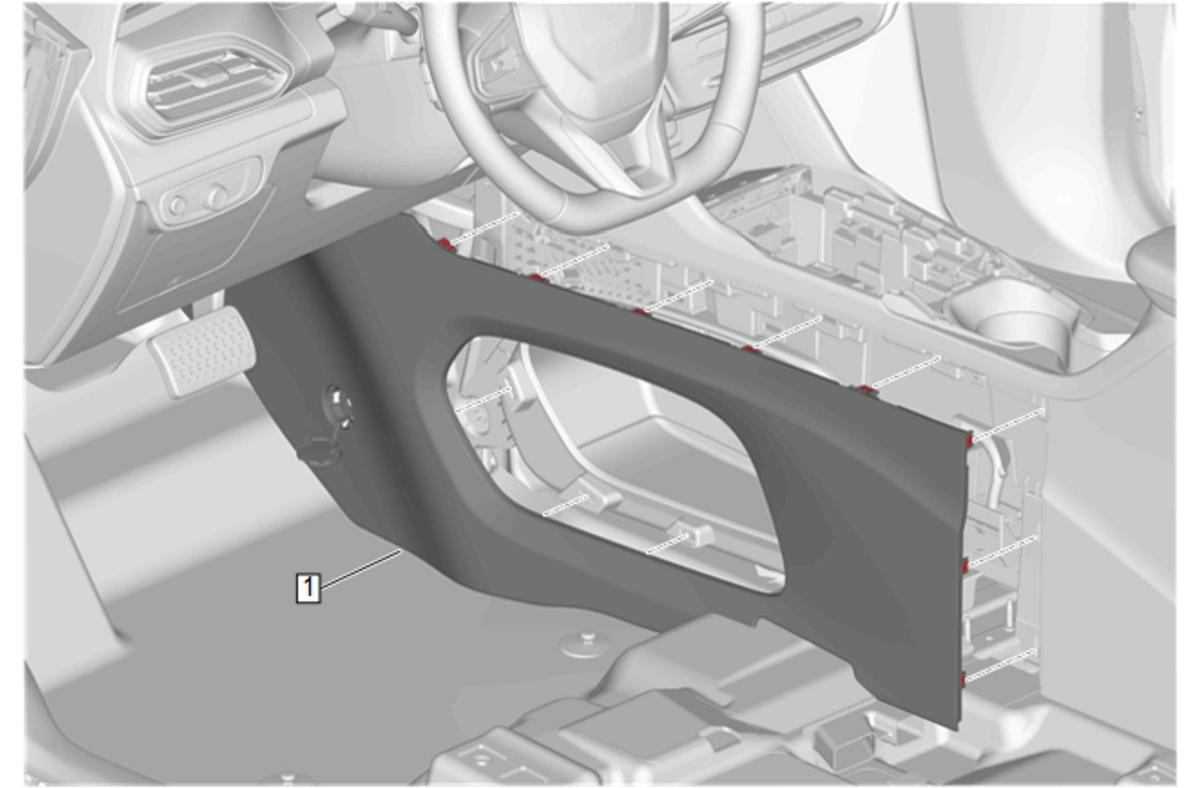

  7. GM5681910Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

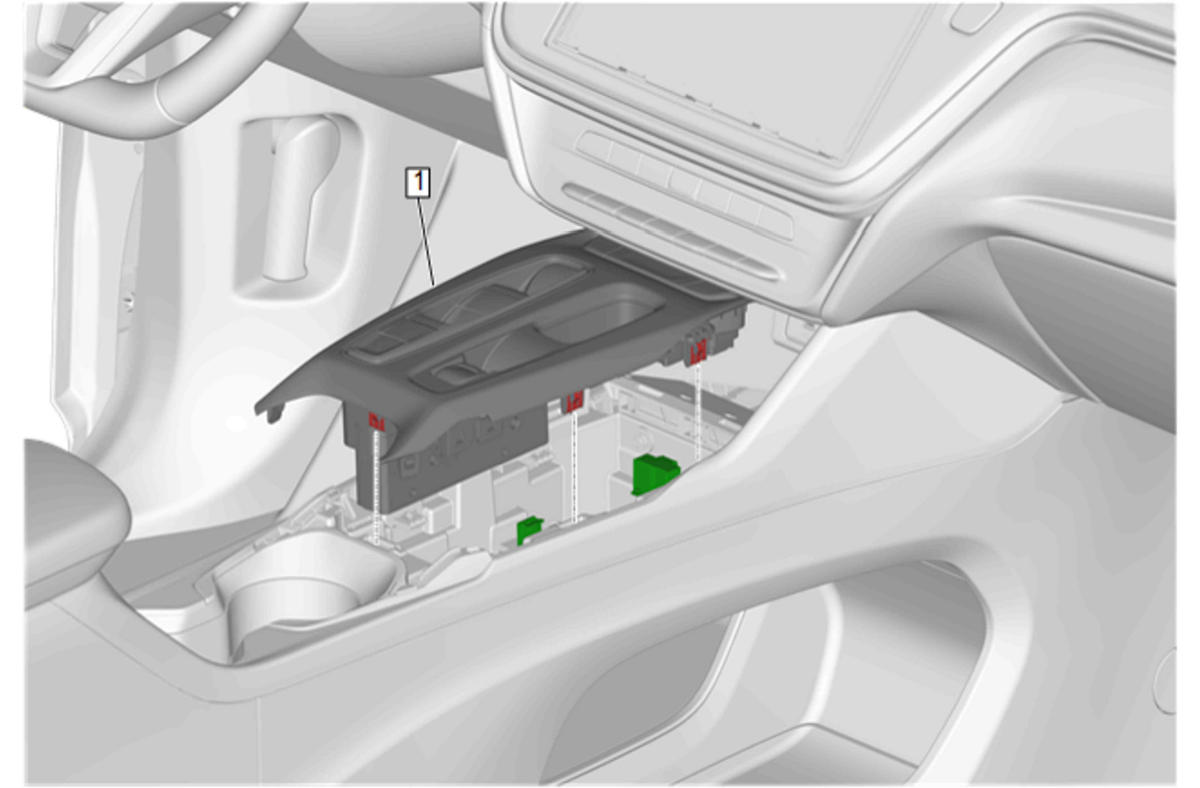

  8. GM5681819Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement

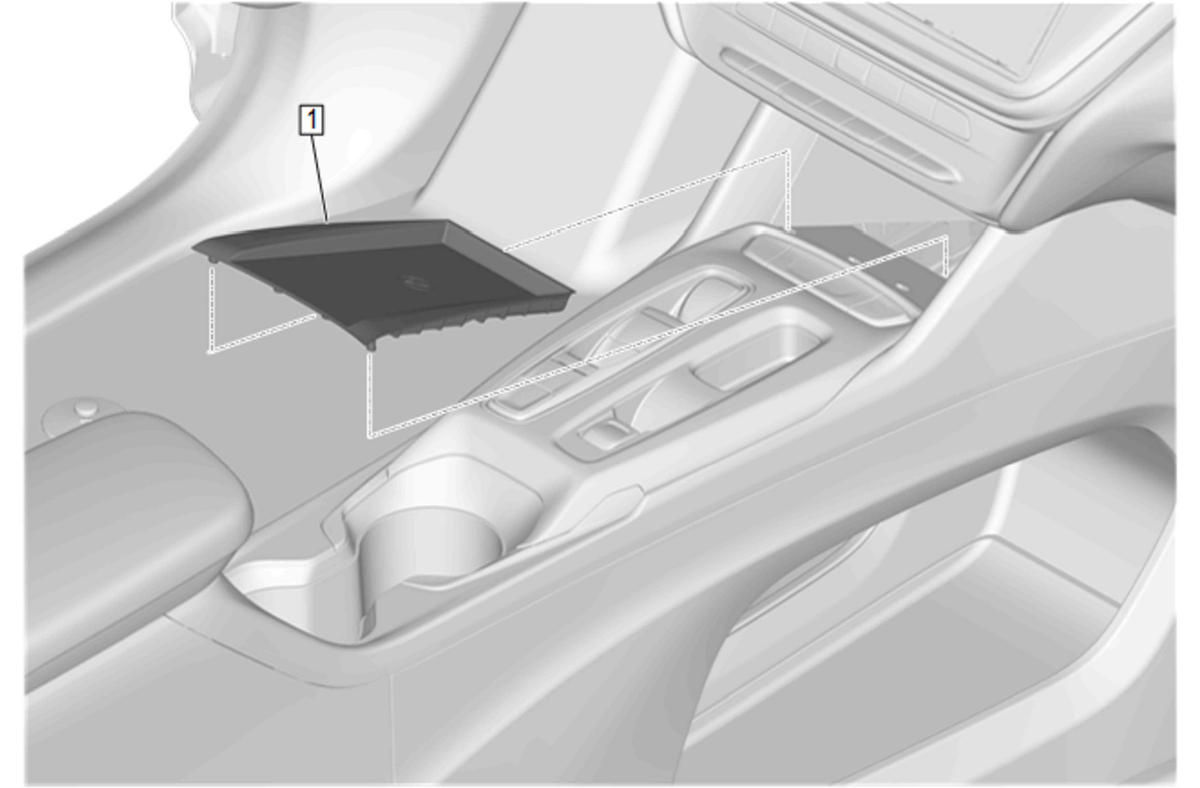

  9. GM5681804Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Front Compartment Liner (1) - Install - Front Floor Console Front Compartment Liner Replacement

  10. Return the seat to its original position.
