Installation Procedure

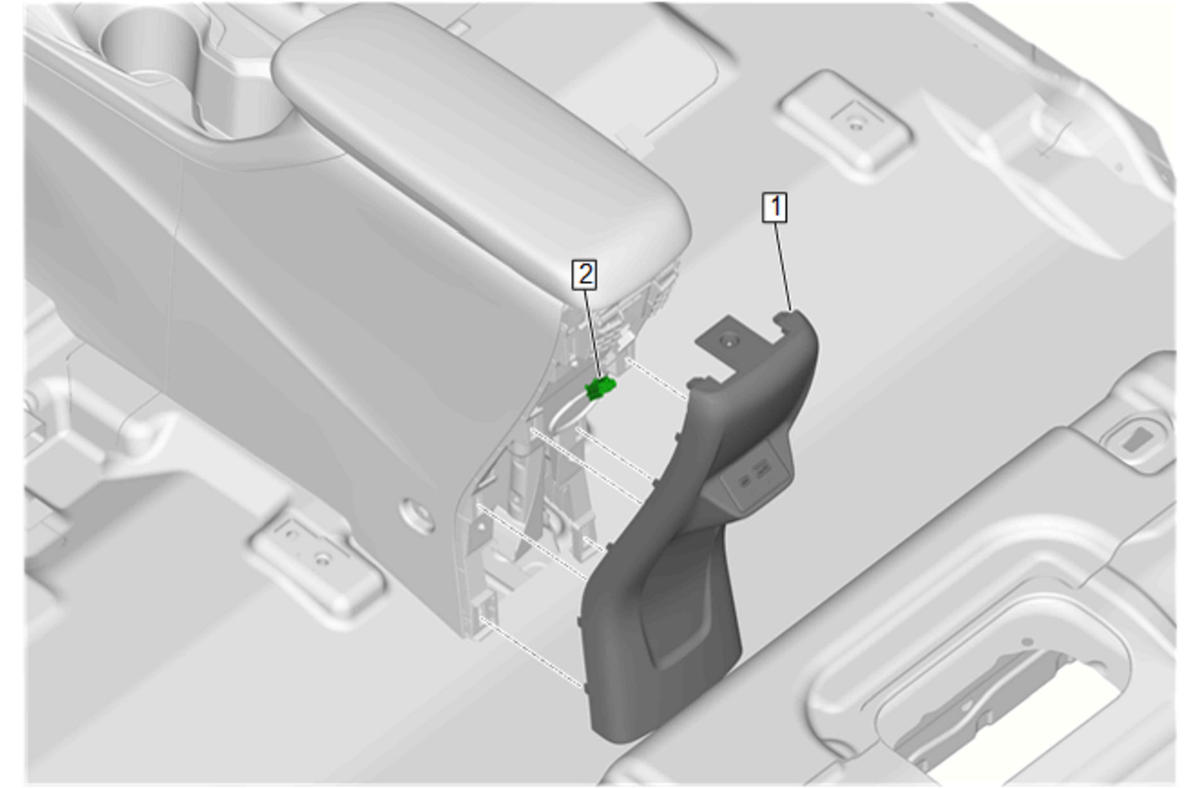

  1. GM5682215Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector (2).

  2. Front Floor Console Rear Trim Panel (1) - Install

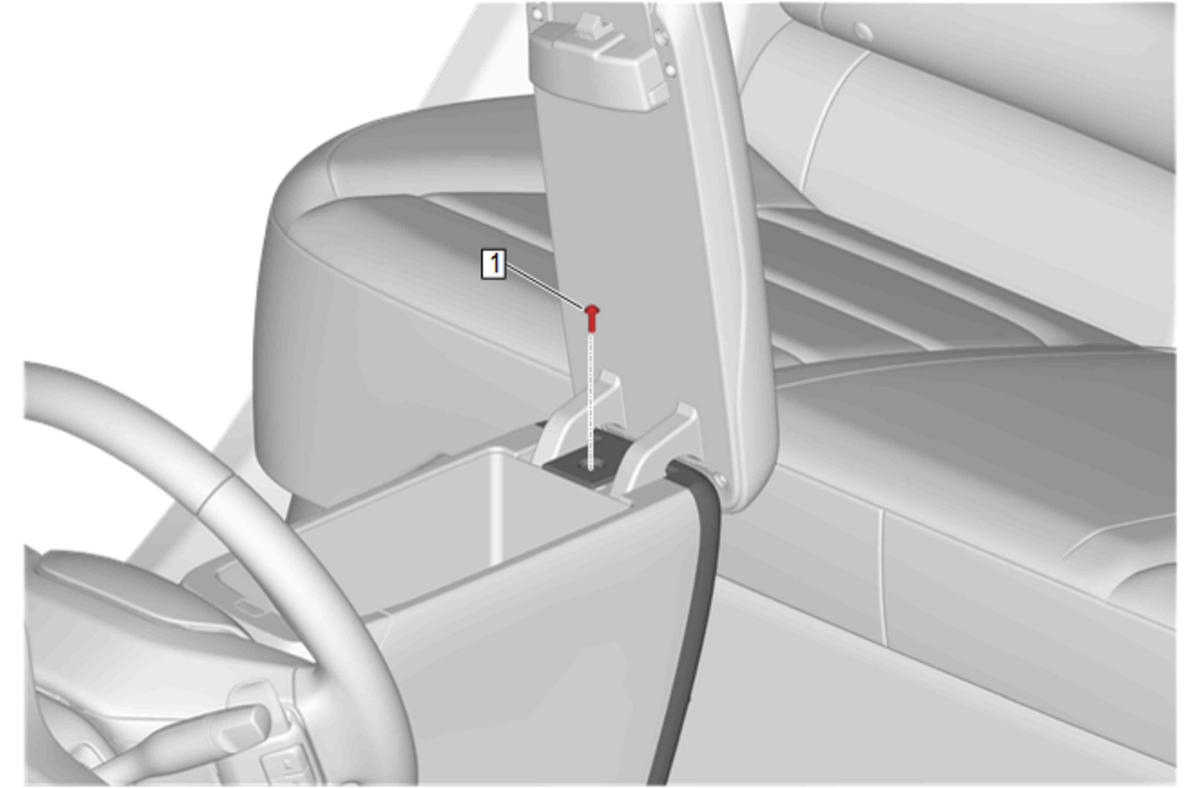

  3. GM5682153Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Rear Trim Panel Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

  4. Close the front floor console armrest.
