Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

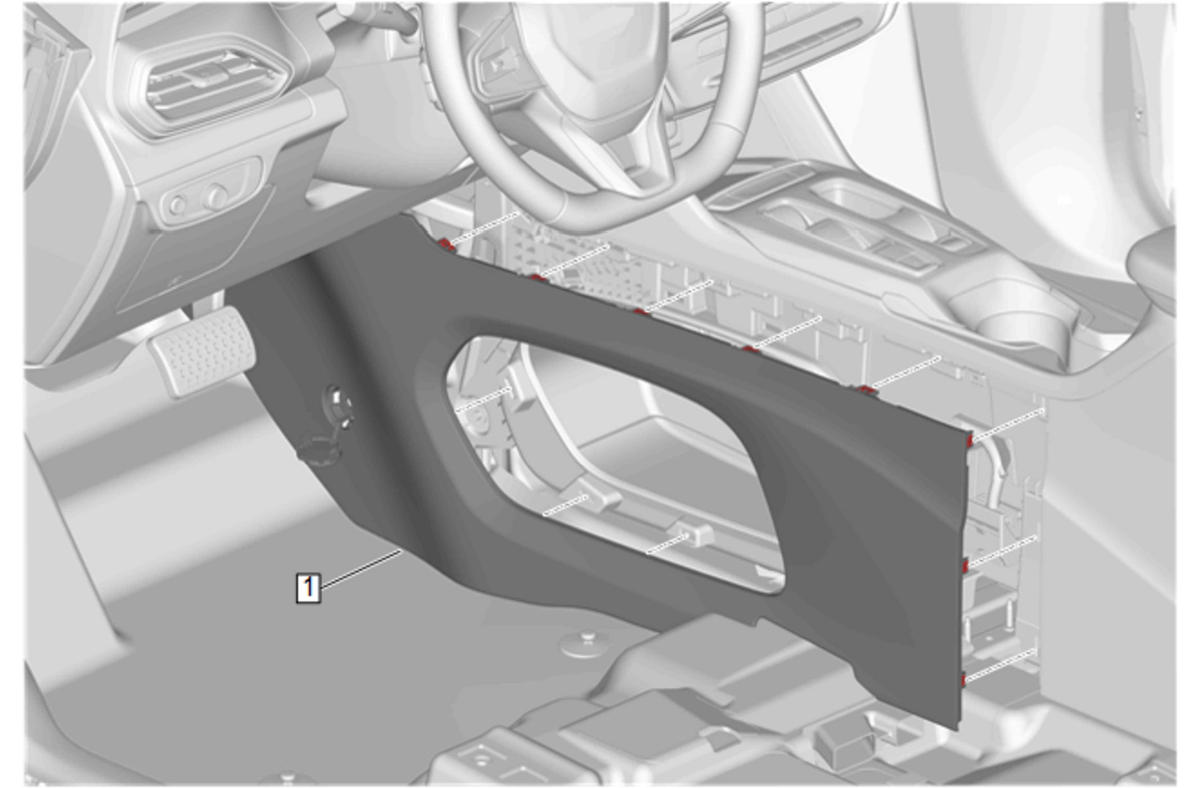

Front Floor Console Extension Panel - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

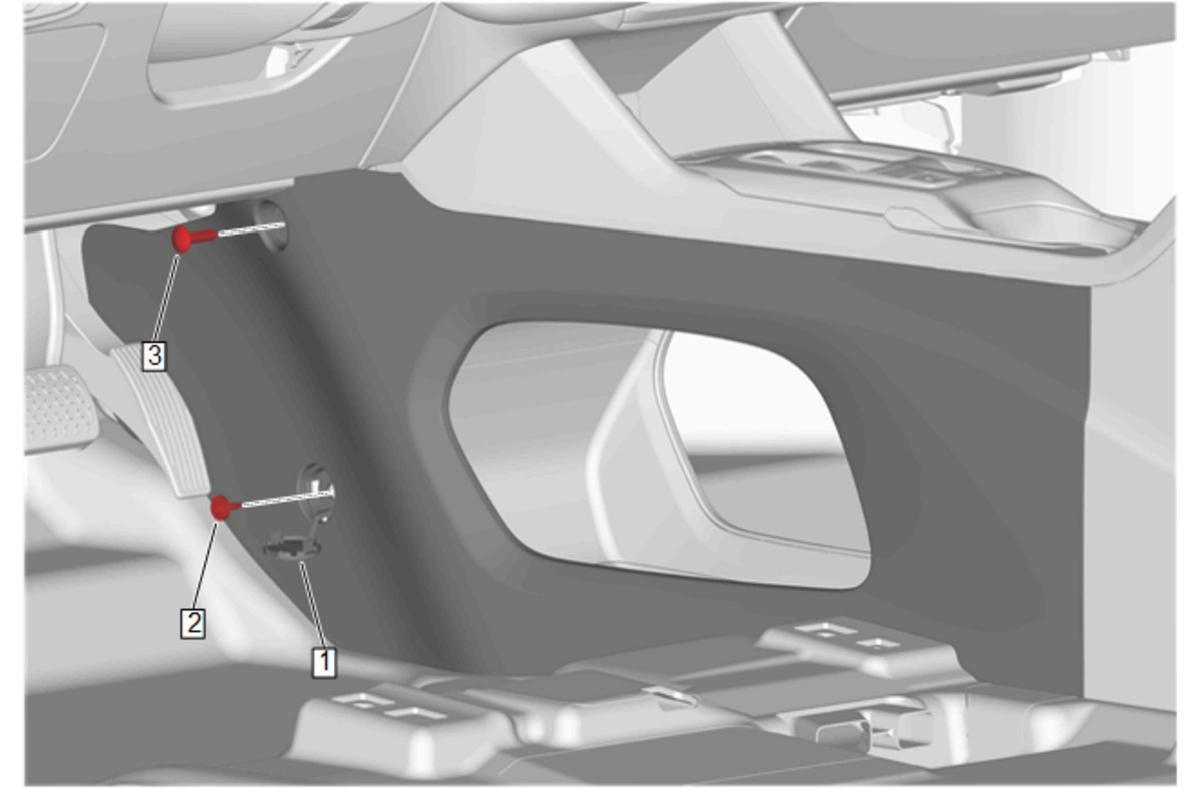

Front Floor Console Extension Panel Retainer (3) - Install

CAUTION:

Refer to Fastener Caution .

Front Floor Console Extension Panel Bolt (2) - Install and tighten 2.5 N.m (22 lb in)
Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Close
Return the seat to its original position.
