Installation Procedure

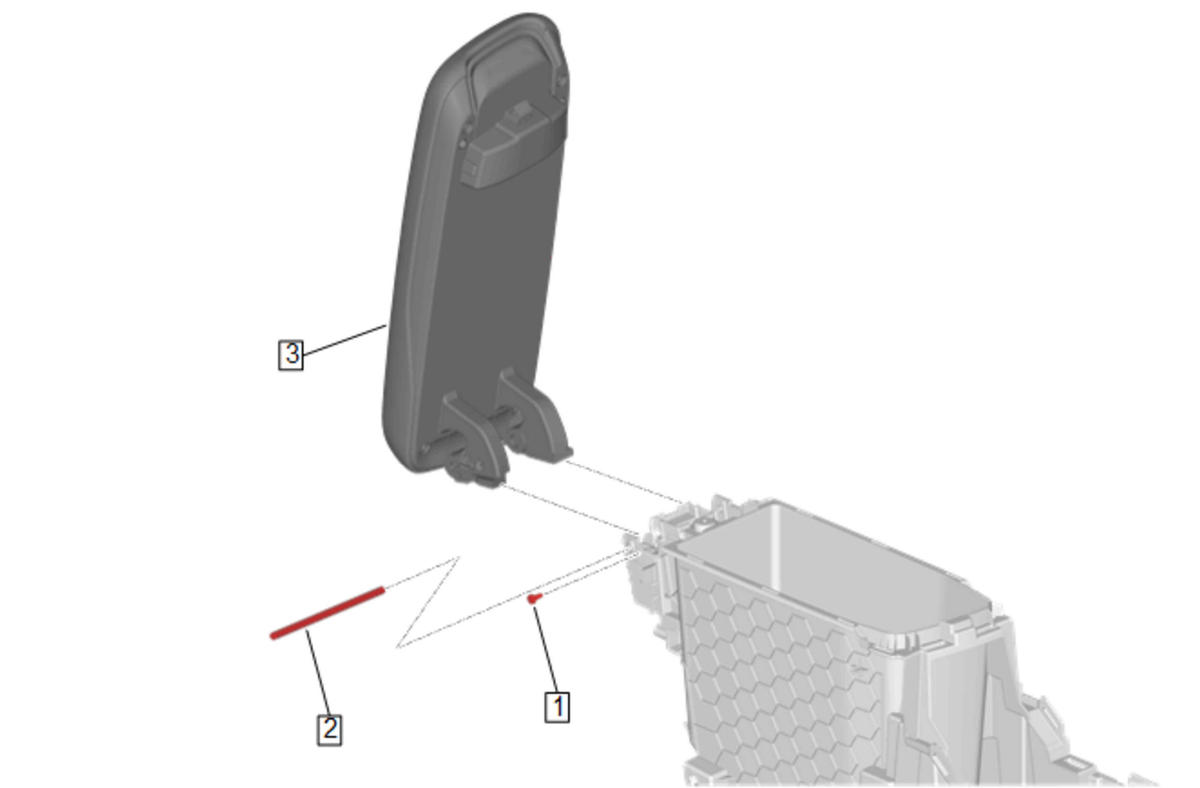

Front Floor Console Armrest (3) - Install
- Front Floor Console Compartment Door Hinge Pin (2) - Install
- Front Floor Console Armrest Hinge Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

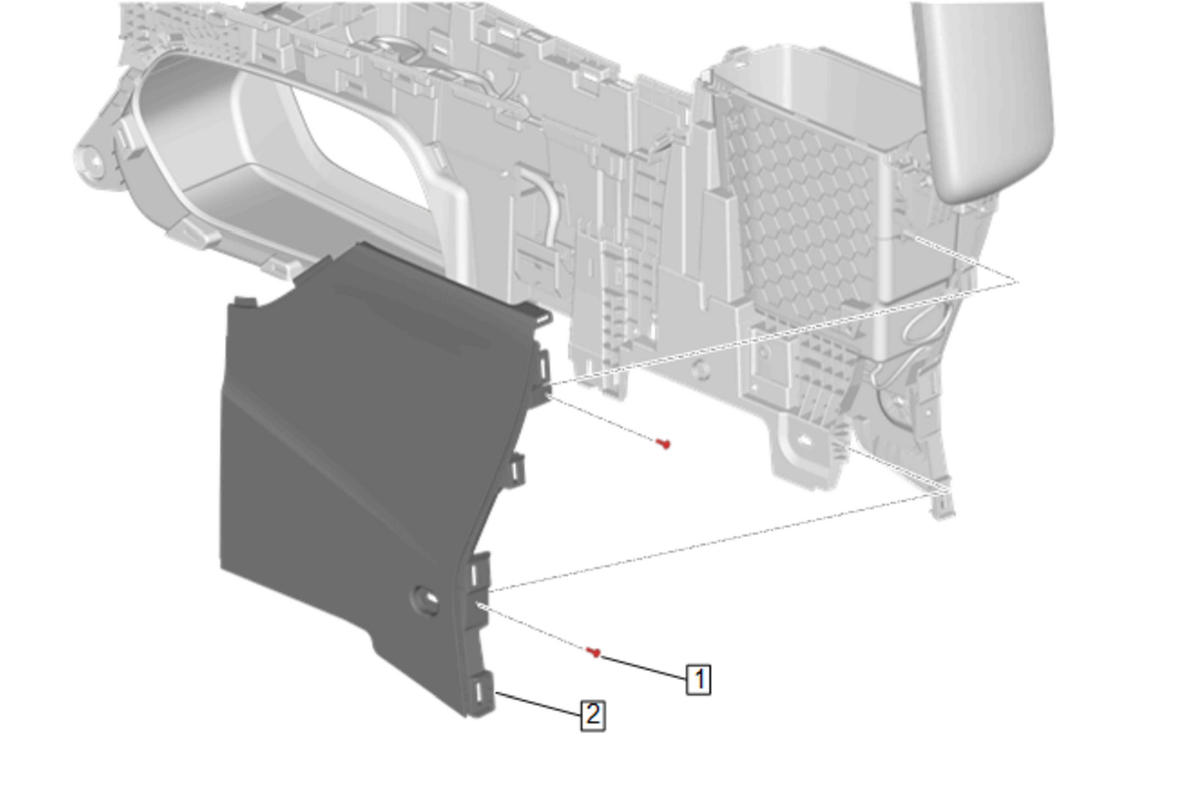

Front Floor Rear Console Side Trim Panel - Right Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Right Side

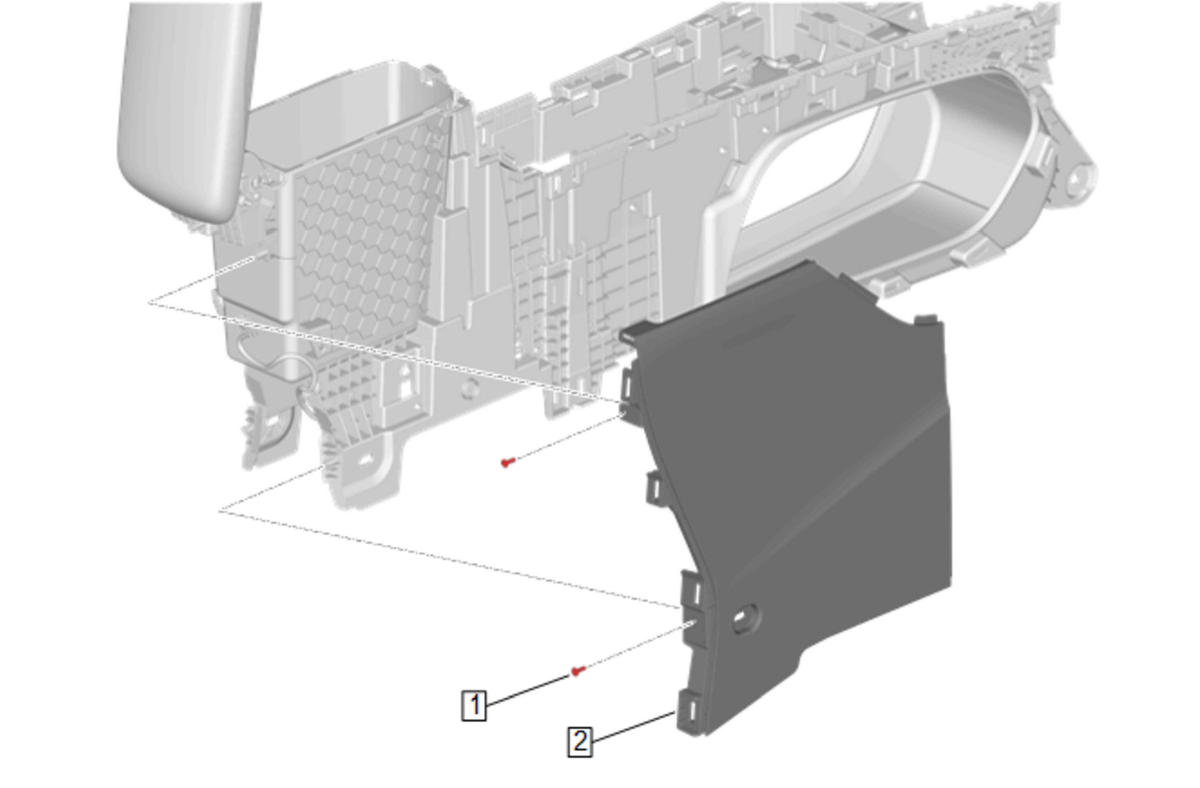

Front Floor Rear Console Side Trim Panel - Left Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Left Side

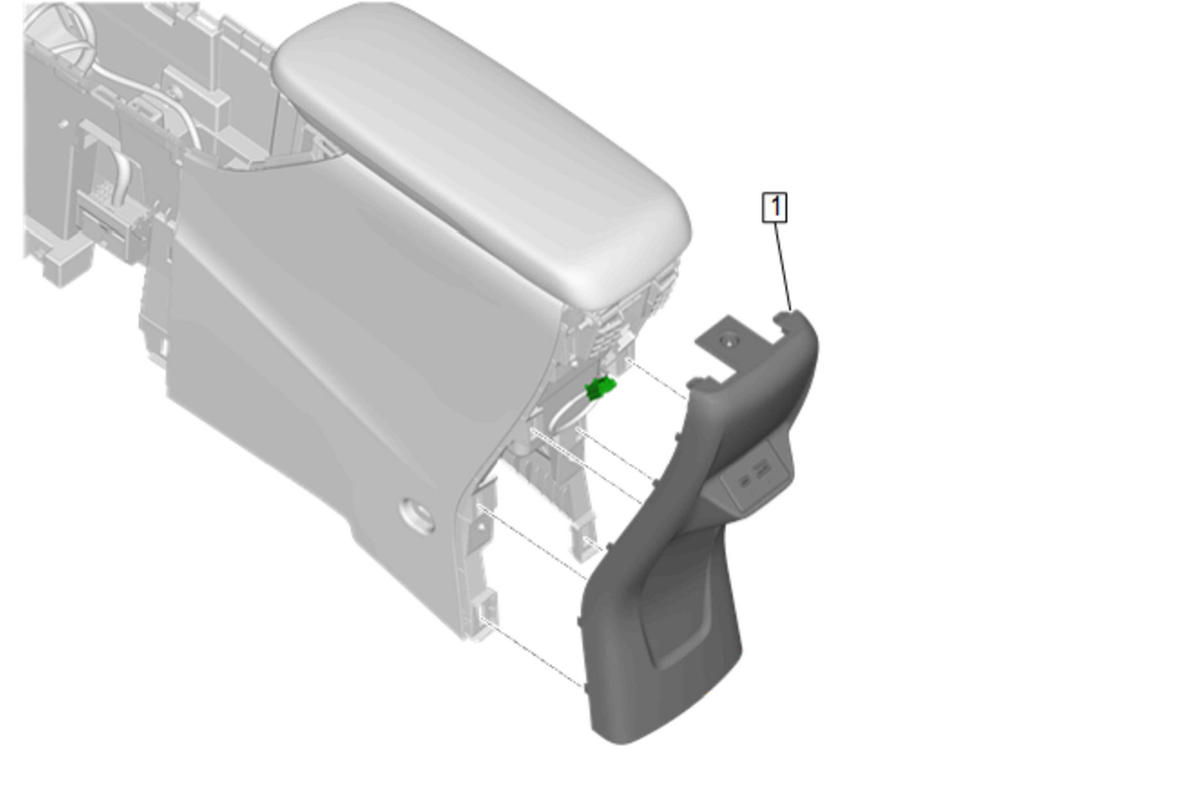

Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement

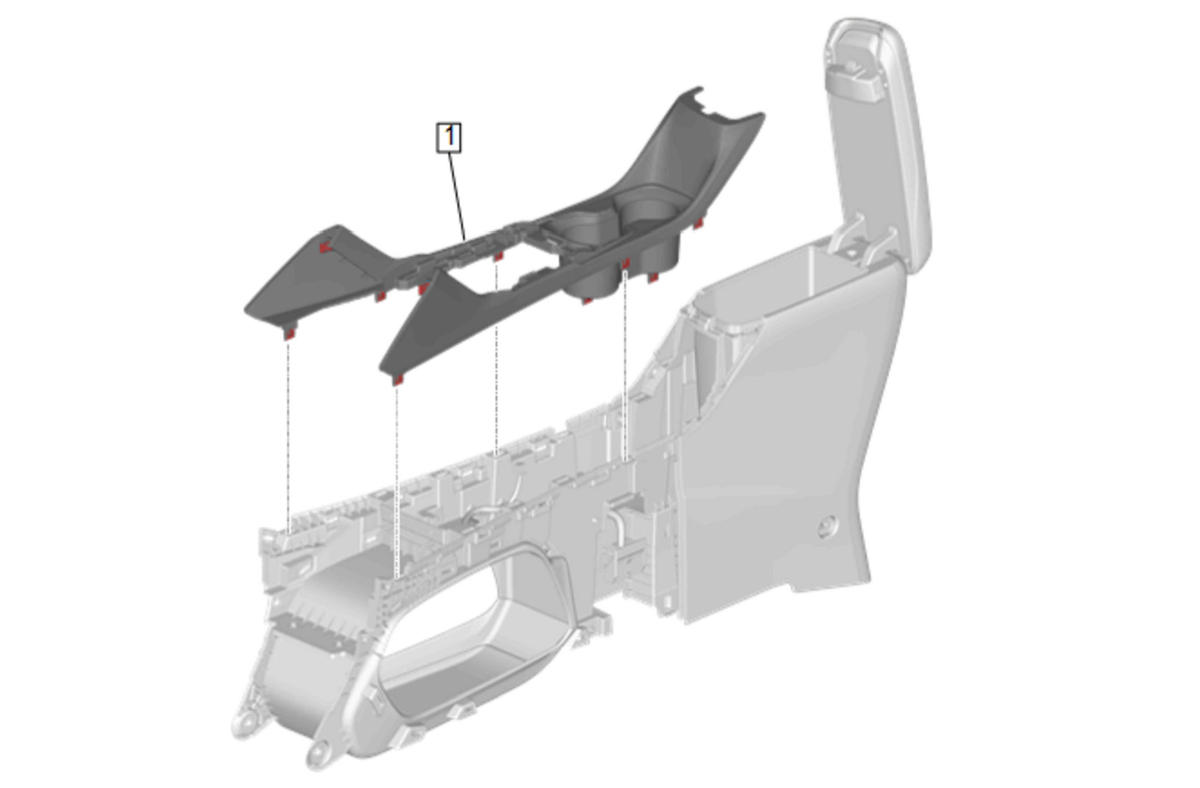

Front Floor Console Cup Holder Trim Plate (1) - Install - Front Floor Console Cup Holder Trim Plate Replacement

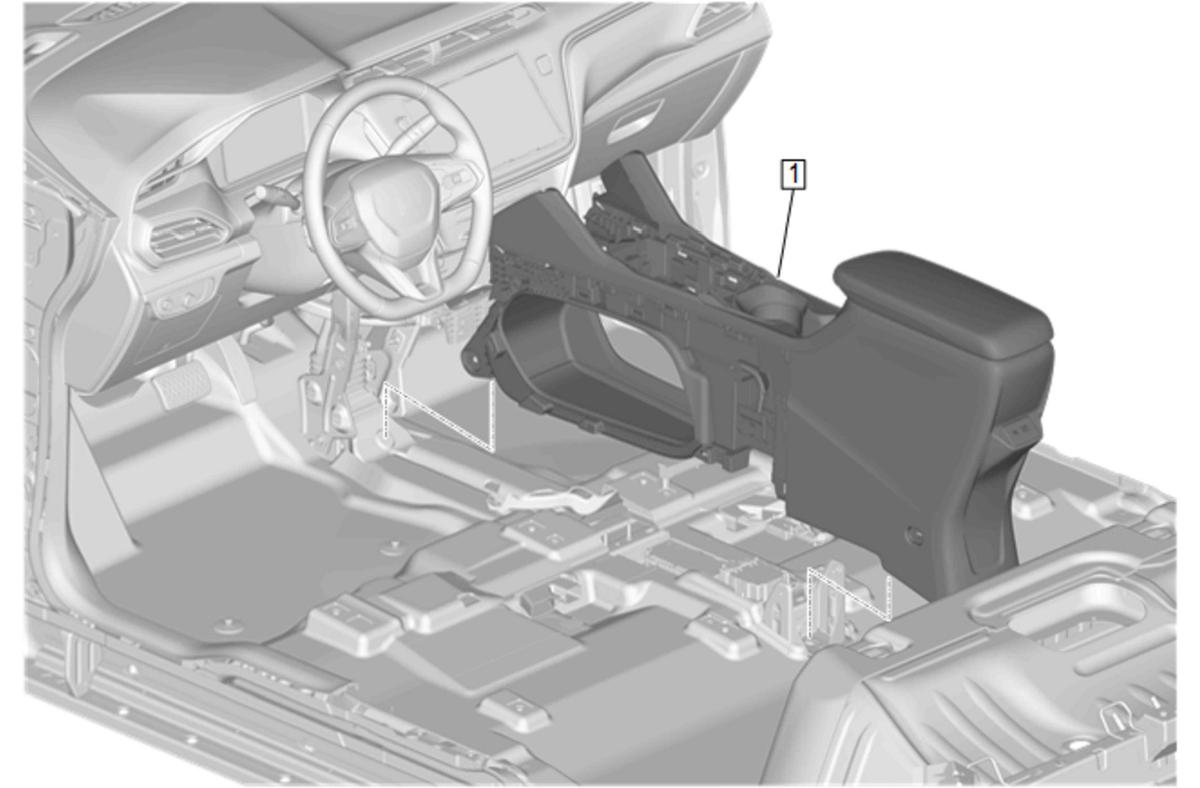

Front Floor Console (1) - Install - Front Floor Console Replacement
CAUTION:
Refer to Fastener Caution .
